7914support2-0209.fm Draft Document for Review March 28, 2011 12:24 pm
376 IBM System Storage DS3500: Introduction and Implementation Guide

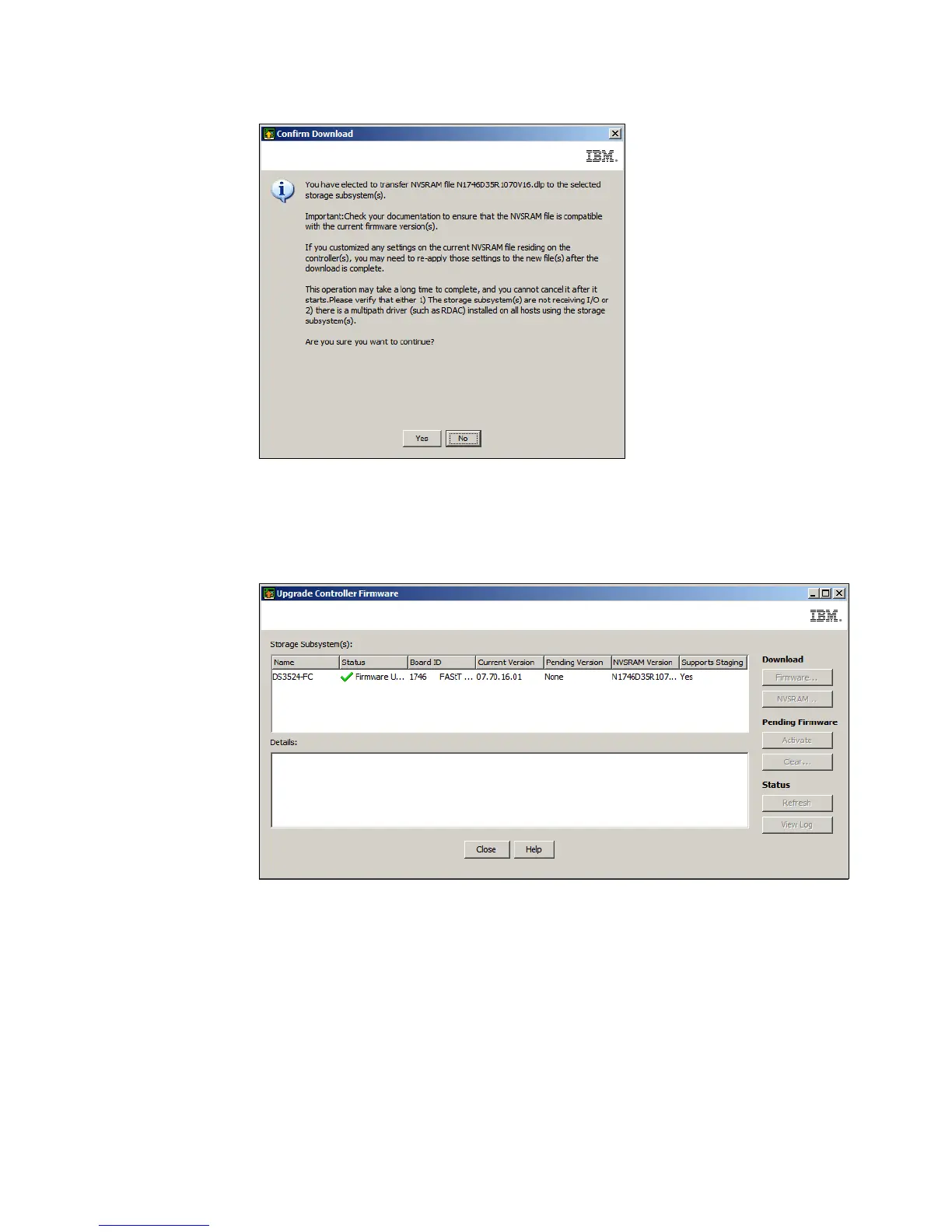

Figure 14-58 Confirm Download
d. You can monitor the status of the NVSRAM upgrade in the Upgrade Controller
Firmware window. Figure 14-59 shows the status after the NVSRAM has been
transferred and activated successfully.
Figure 14-59 NVSRAM upgrade successful
14.5.5 Using the DS3500 Storage Manager (Subsystem Management)
Here now describe upgrade procedure for the DS3500 firmware and NVSRAM using the DS
Storage Manager (Subsystem Management) application.
Updating the storage subsystem
After you have updated your hosts (see section 14.5.2, “Updating the host” on page 360), you
can update the code of your storage subsystem. To do this, click Download Firmware, as
shown in Figure 14-1 on page 338. You will see the options for different types of firmware
download, as shown in Figure 14-60 on page 377.
