SAS configuration guide for Windows on IBM BladeCenter.fm Draft Document for Review March 28, 2011

562 IBM System Storage DS3500: Introduction and Implementation Guide

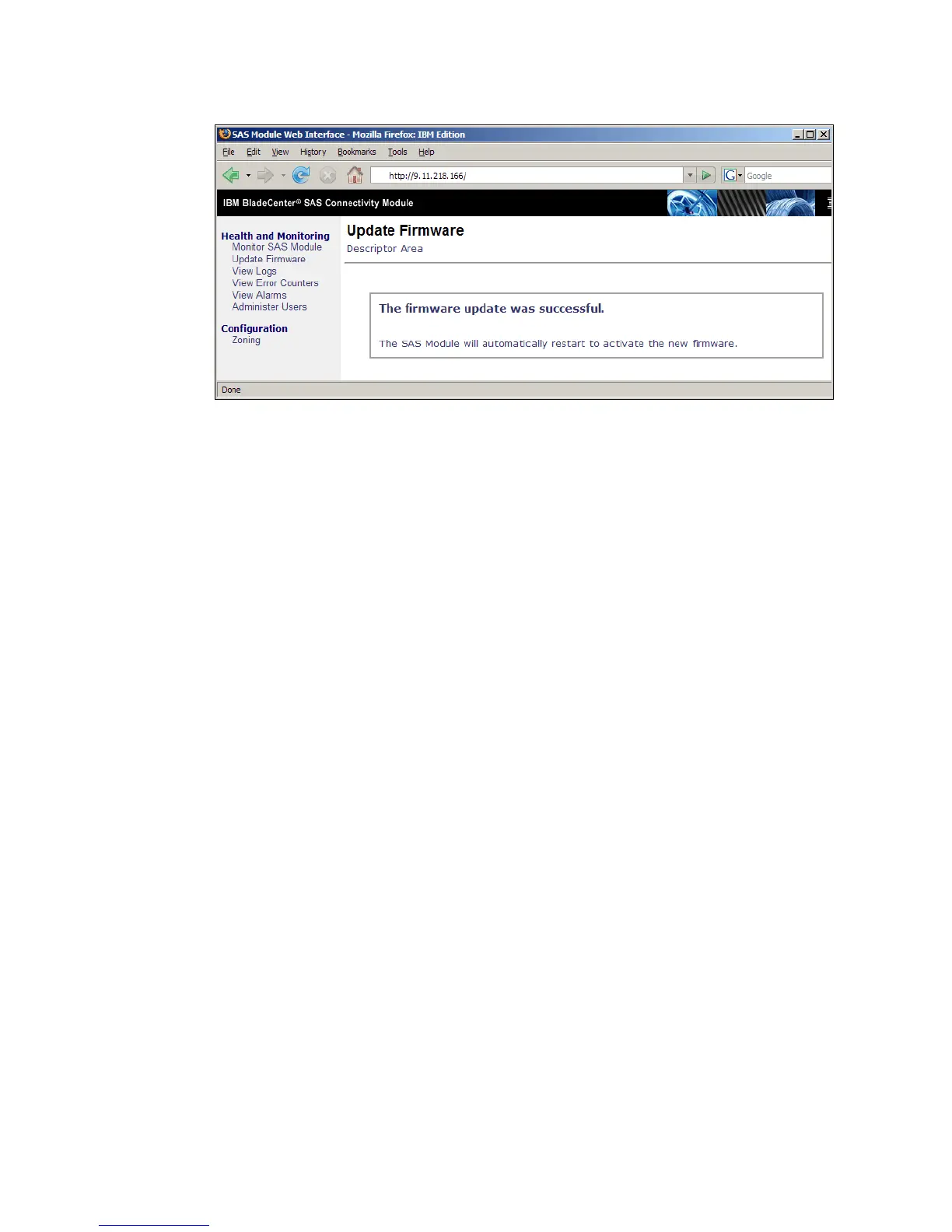

Figure 18-11 SAS Connectivity Module - Update successful

18.2.7 Configuring the SAS connectivity module

Ensure that the external ports on the SAS Connectivity Modules are enabled to allow

connectivity from the DS3500 System Storage subsystem and I/O traffic to pass through the

module.
