Alternatively, you can add your storage manually from the Enterprise Management
selecting menu Edit ďŽ Add Storage Subsystem, and then completing the fields with
the default IP addresses, as shown in Figure 10-17.

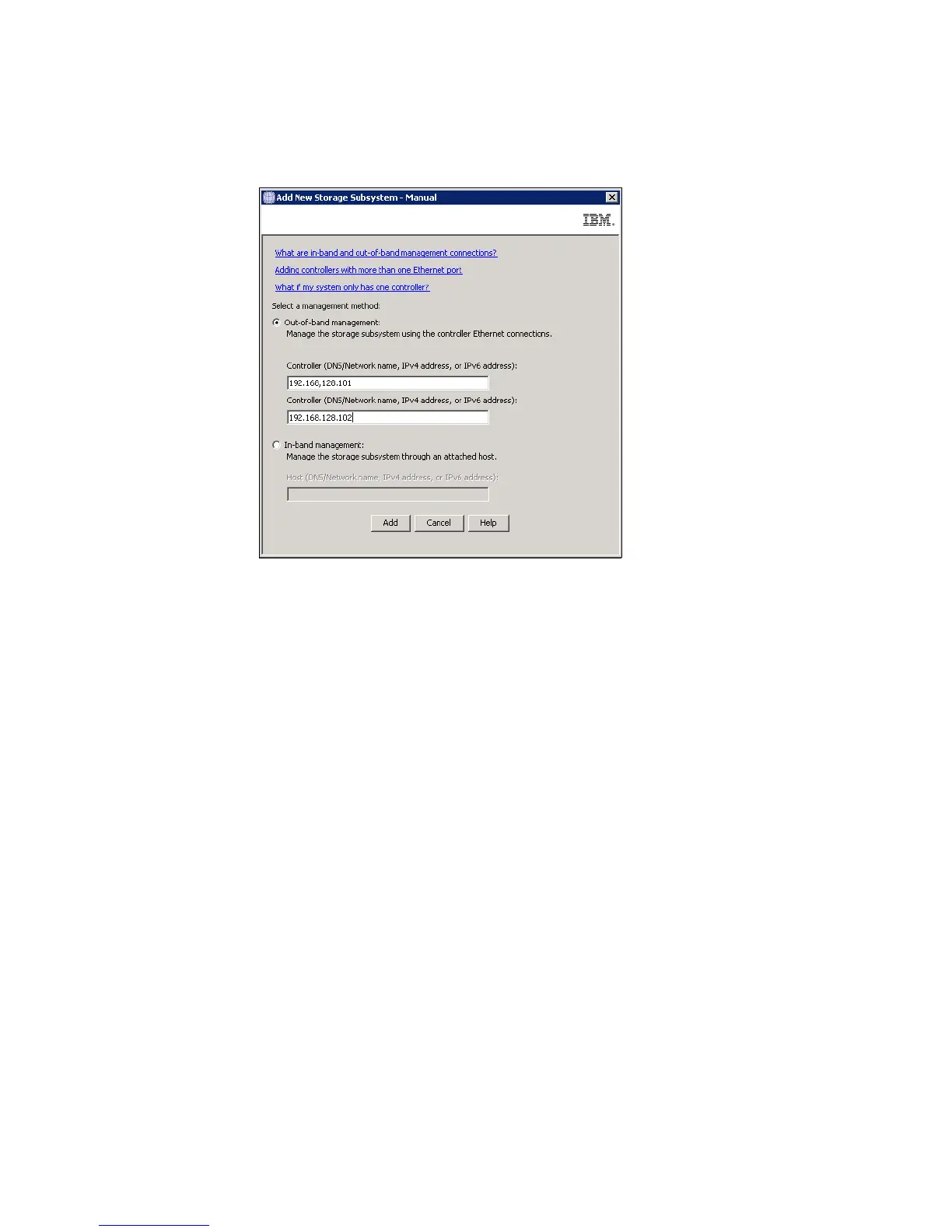

Figure 10-17 Manually adding a storage system
c. A confirmation message appears and prompts you for additional storage subsystems.
Click No to finish adding storage subsystems.
d. After successfully adding a storage subsystem, the Devices tab of Enterprise
Management shows the new system.
Double-click the storage subsystem in Devices tab to open the Subsystem
Management window. If not already set, you will be prompted to set mandatory
password for your storage subsystem.
e. The storage subsystem can ask you also to synchronize the clock with the
management station, when controllers are out of synchronization. Click OK to accept
synchronization if prompted to do so.
f. Now you are connected to the DS3500 Storage Subsystem, but with the default IP
addresses. You need to change the address to your specific ones. Follow the standard
procedure described in 10.7.2, âConfigure Ethernet Management Portsâ on page 278
for configuring the ethernet ports on DS3500 controllers.
10.7.2 Configure Ethernet Management Ports
To configure the ethernet management ports of the DS3500:
1. Select one controller in Physical pane, right click on it, and select Configure ďŽ Ethernet
Management Ports. A new window like in Figure 10-18 on page 279 appears. In this
window you can set IP addresses, IP masks, default Gateway and the link speed of
Ethernet port, for all four Ethernet ports on both controllers.
