Chapter 20. SuSE Linux configuration guide 633
Draft Document for Review March 28, 2011 12:24 pm Linux Config.fm

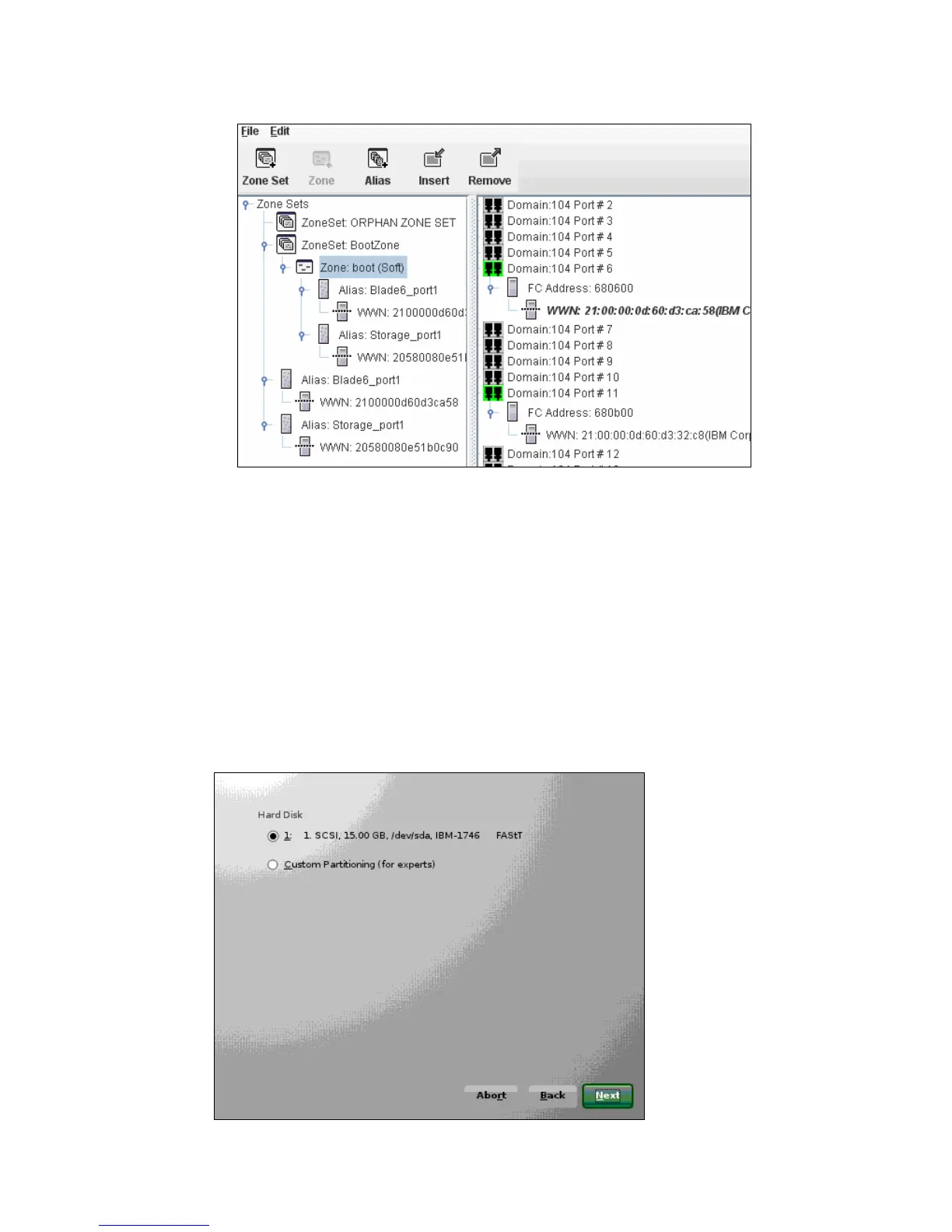

Figure 20-33 Final zoning configuration
6. When the zoning is correctly done, you will be able to map the logical drive using the
procedure in Chapter 11, âAdministration - Mappings Tabâ on page 281 and continue with
the SuSE Linux Server installation.
20.3.2 SuSE Linux Enterprise 11 installation
Using the normal procedure for the SuSE Linux Enterprise Server installation, start the
installation. The window showing the available hard disks for the installation should be similar
to Figure 20-34. Only one hard disk corresponding to the Storage Subsystem should be
shown after the zoning configuration and the since we already disabled the local harddrive in
this blade server, we only see the harddrive that is configured from the DS3500 in
Figure 20-34.
Figure 20-34 Available Storage Logical Drive
