VMware ESX Server Storage Configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24

706 IBM System Storage DS3500: Introduction and Implementation Guide

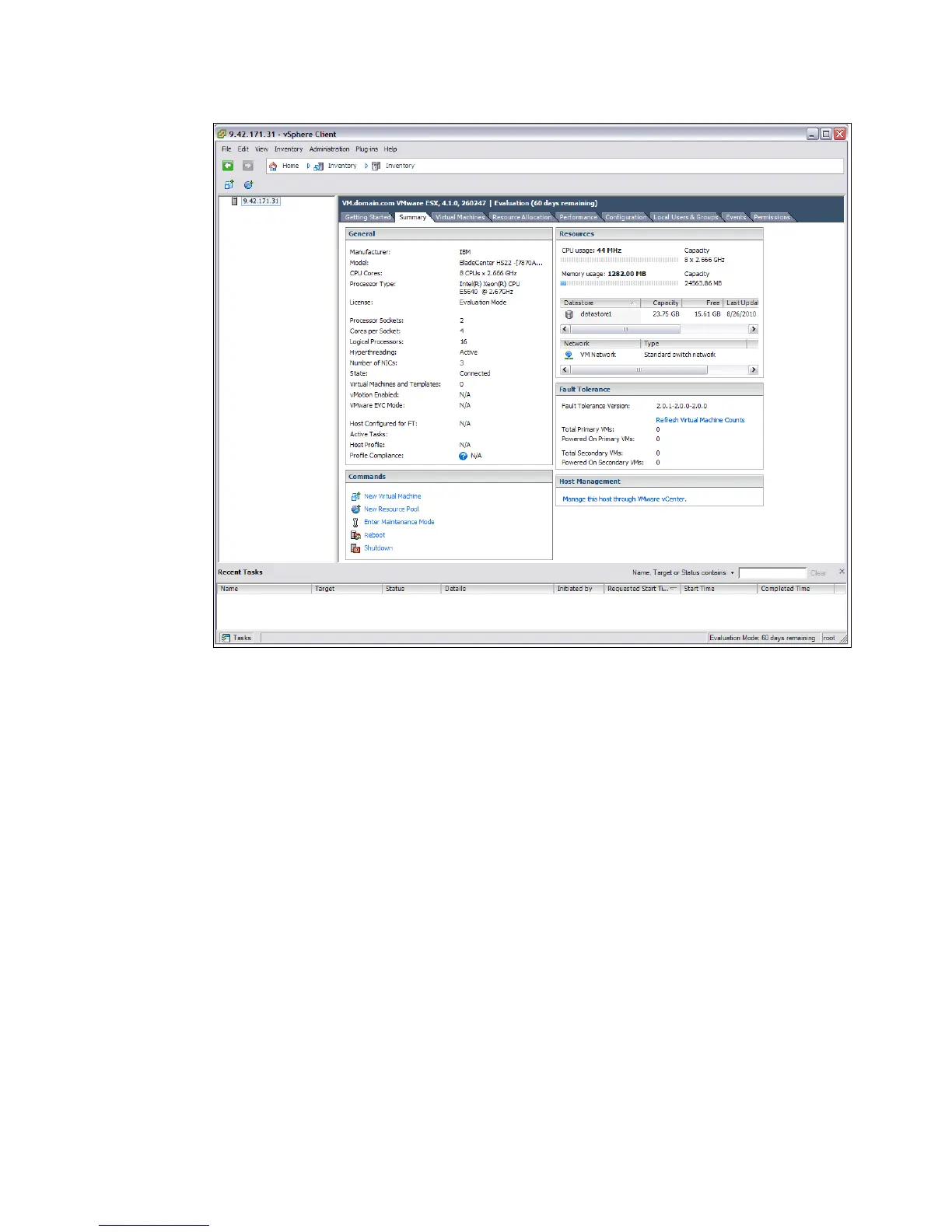

Figure 22-50 ESX vSphere Client - Summary panel

22.4.4 Post-Install Server configuration

The procedure in this section must be performed after the VMware ESX Server software

installation is completed.

Enabling SSH connectivity

This procedure describes the steps to follow to enable SSH connectivity for the VMware ESX

Server:

1. Using the ESX server console, log into the VMware ESX Server.

2. Cd into /etc/ssh/ and copy sshd_config file into sshd_config.orig.

3. vi sshd_config file.

4. Scroll down until you find PermitRootLogin no, and change it to PermitRootLogin yes. See

Figure 22-51 on page 707
