Chapter 12. Administration - Setup tab 315
Draft Document for Review March 28, 2011 12:24 pm 7914Admin_Setup.fm

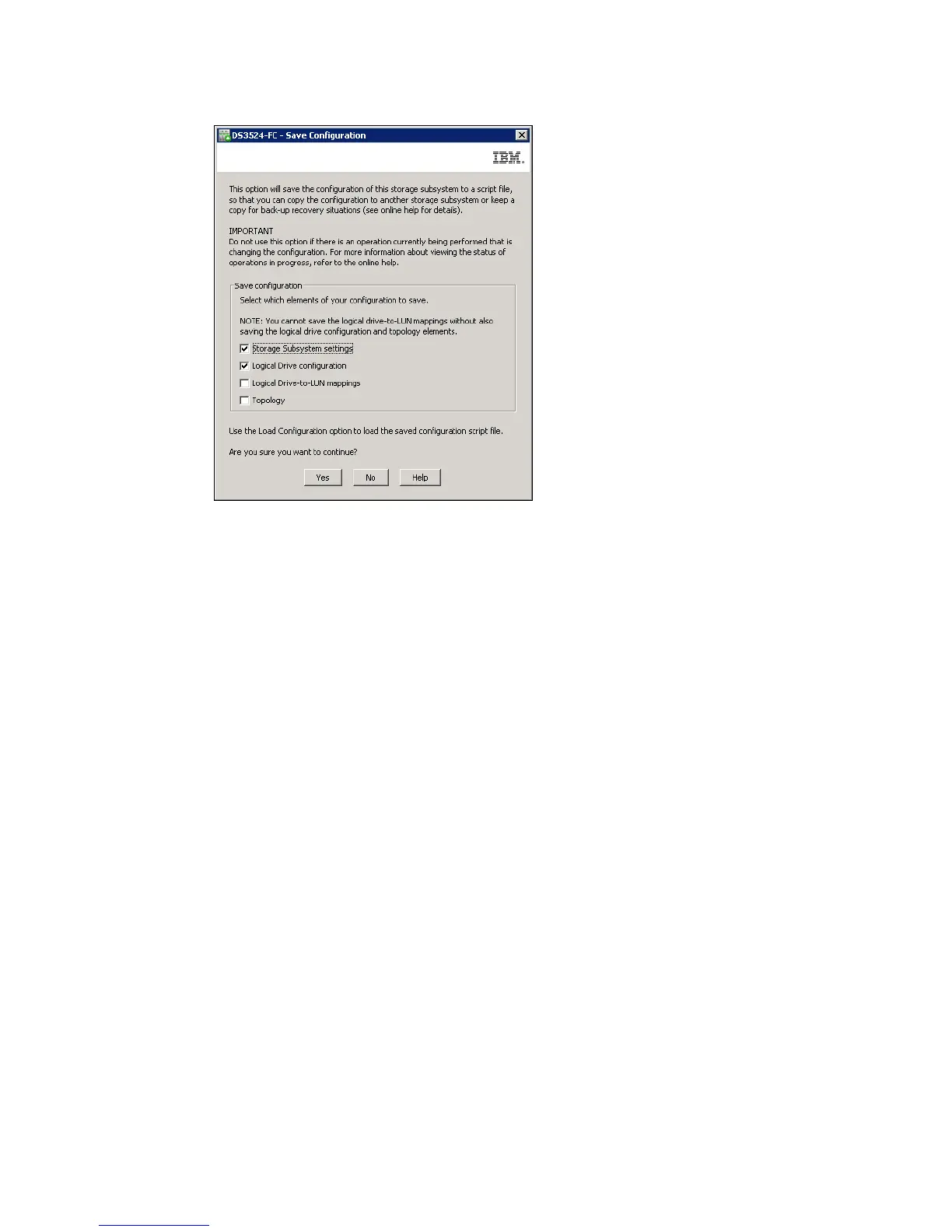

Figure 12-12 Save Configuration
When your DS3500 Storage Subsystem is fully configured, the Save Configuration option
lets you save storage subsystem logical settings, logical drive configuration, topology, and
mappings to the text file in form of script file, that also can be used by SMcli command line
interface. If there are individual topology items or logical drives that you do not want to include
in the saved configuration, you can edit the script file, after it is saved. Also you can use some
modified SMcli commands from this file to create a new logical devices in your storage
subsystem. More information about SMcli are in Chapter 17, “Command-Line Interface(CLI)”
on page 533.
The Configuration  Save option does not save these settings:
򐂰 The age of the battery
򐂰 The controller time of day
򐂰 The nonvolatile static random access memory (NVSRAM) settings
򐂰 Any premium features
򐂰 The storage subsystem password
򐂰 The operating status and states of the hardware components
򐂰 The operating status and states of the arrays and logical drives
12.9 Manually Define Hosts
This link in the Setup tab of DS Storage Manager opens window in which you can define a
new host. This wizard is described in section 11.2, “Defining Host” on page 283. All other
configuration steps needed for assigning logical drives to hosts are described in Chapter 11,
“Administration - Mappings Tab” on page 281.
