Chapter 5. Installing IBM System Storage DS Storage Manager 135

Draft Document for Review March 28, 2011 12:24 pm 7914InstallSM01108.fm

2. Select the language to display the license agreement, and click OK (see Figure 5-2).

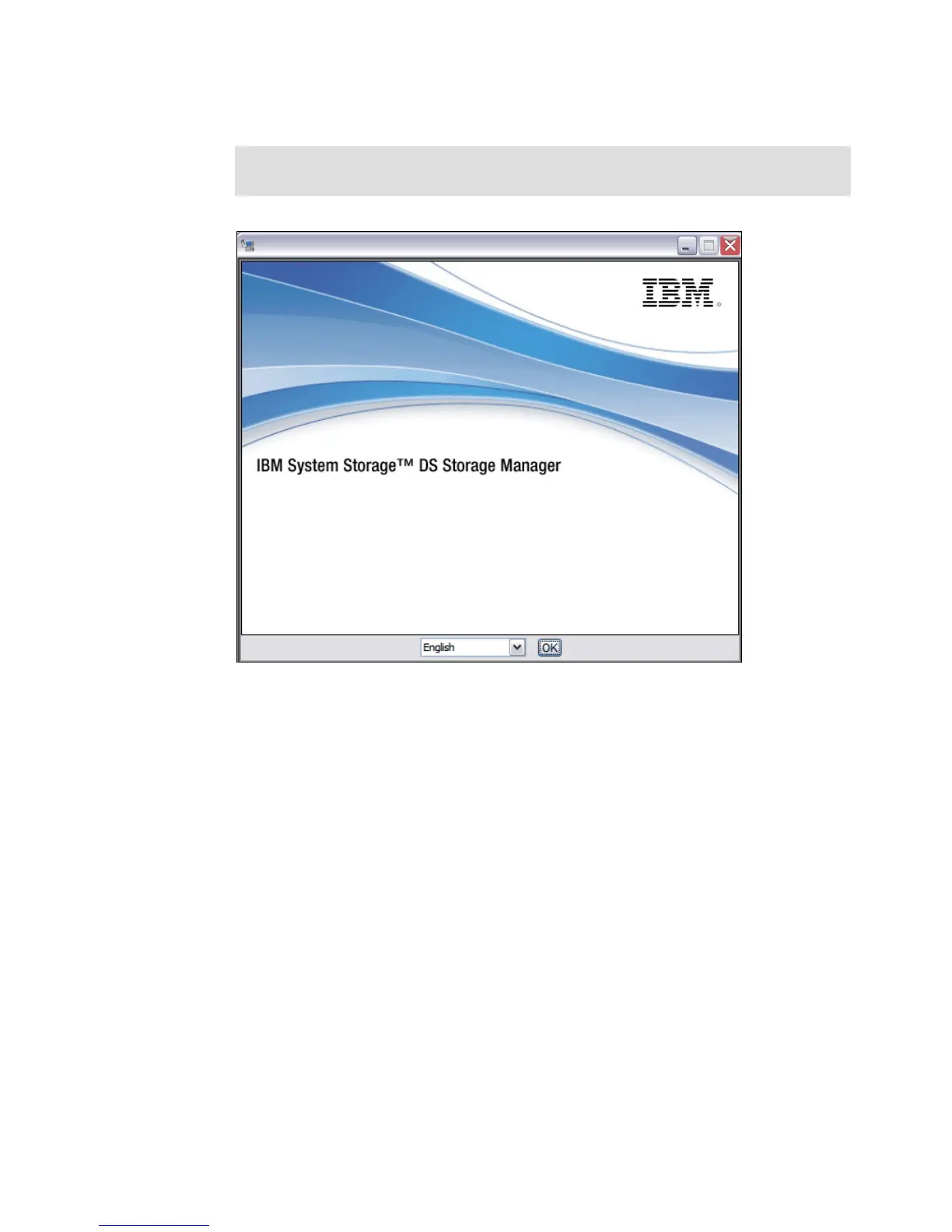

Figure 5-2 IBM DS Storage Manager Language Selection

Note: The installation program will always use English; the selected locale only affects

the license agreement.
