Chapter 19. Microsoft Cluster configuration with DS3500 577
Draft Document for Review March 28, 2011 12:24 pm Microsoft Cluster configuration with DS3500.fm

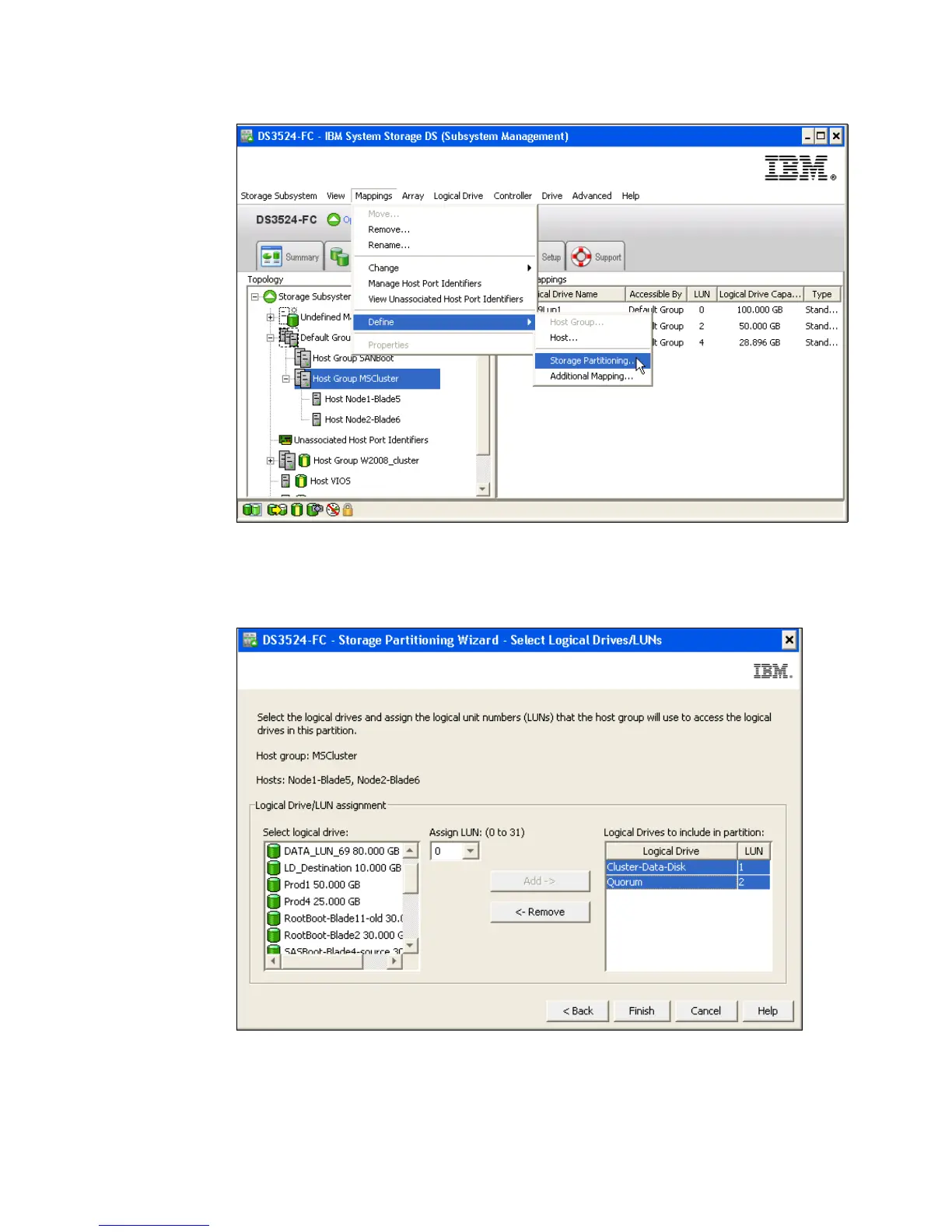

Figure 19-5 Create Host Group-to-Logical Drive Mapping
7. Select the logical drives and assign the logical unit numbers (LUNs) that the host group
will use to access the logical drives in the partition as shown in Figure 19-6
Figure 19-6 Storage Partitioning Wizard
Figure 19-7 on page 578 shows an example of a valid LUN mapping for installation purposes.
Check to ensure that the logical drives are mapped to the host group and the hosts are the
members of the host group.
