Chapter 22. VMware ESX Server and DS3500 Storage Configuration 721

Draft Document for Review March 28, 2011 12:24 pm VMware ESX Server Storage Configuration with

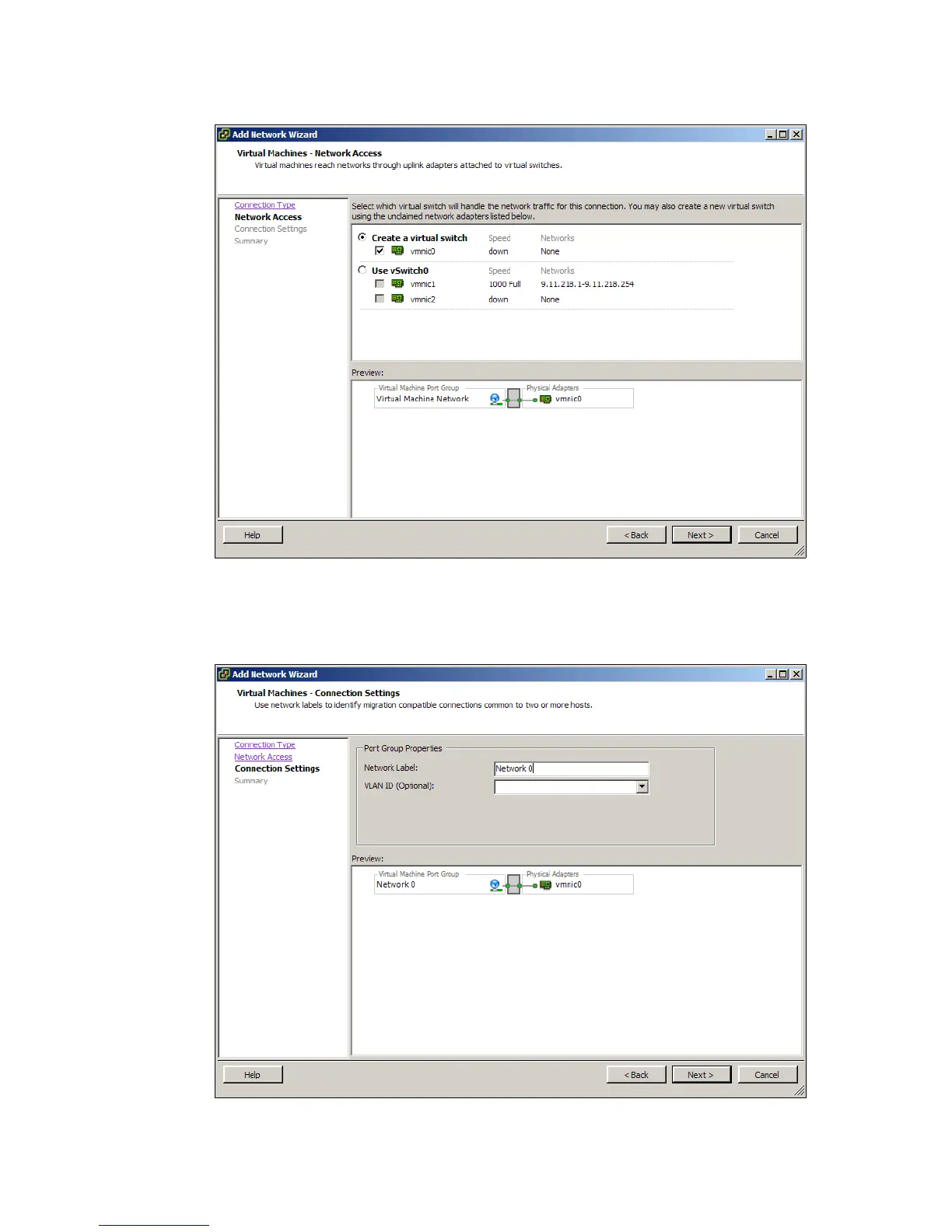

Figure 22-70 Selecting Network Access

4. On the Network Label, type Network 0, as shown in Figure 22-71, and click Next 

Finish.

Figure 22-71 Virtual Network Label
