Chapter 22. VMware ESX Server and DS3500 Storage Configuration 723

Draft Document for Review March 28, 2011 12:24 pm VMware ESX Server Storage Configuration with

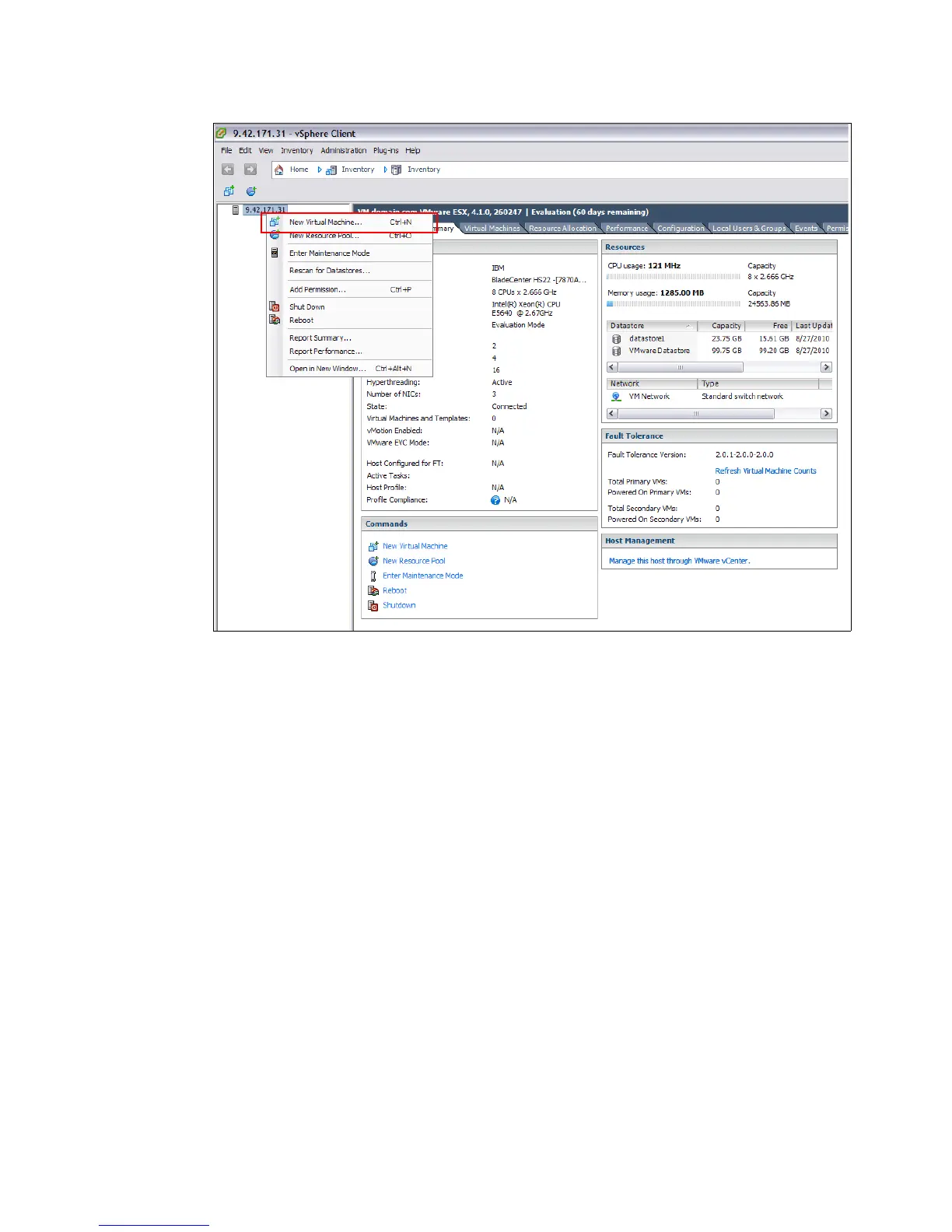

Figure 22-72 New Virtual Machine

3. On the Select the Appropriate Configuration panel, select Custom, as shown in

Figure 22-73 on page 724. Click Next.
