WSB-9152 PICMG 1.0 SBC
Page 4
 Multiple display options including VGA, 18-bit dual-channel LVDS and DVI (on
the WSB-9152S and WSB-9152SDVI models)
1.2 WSB-9152 Overview
1.2.1 WSB-9152 Overview Photo
The WSB-9152 has a wide variety of internal and external peripheral connectors. A
labeled photo of the peripheral connectors on the front of the WSB-9152 is shown in
Figure 1-2.

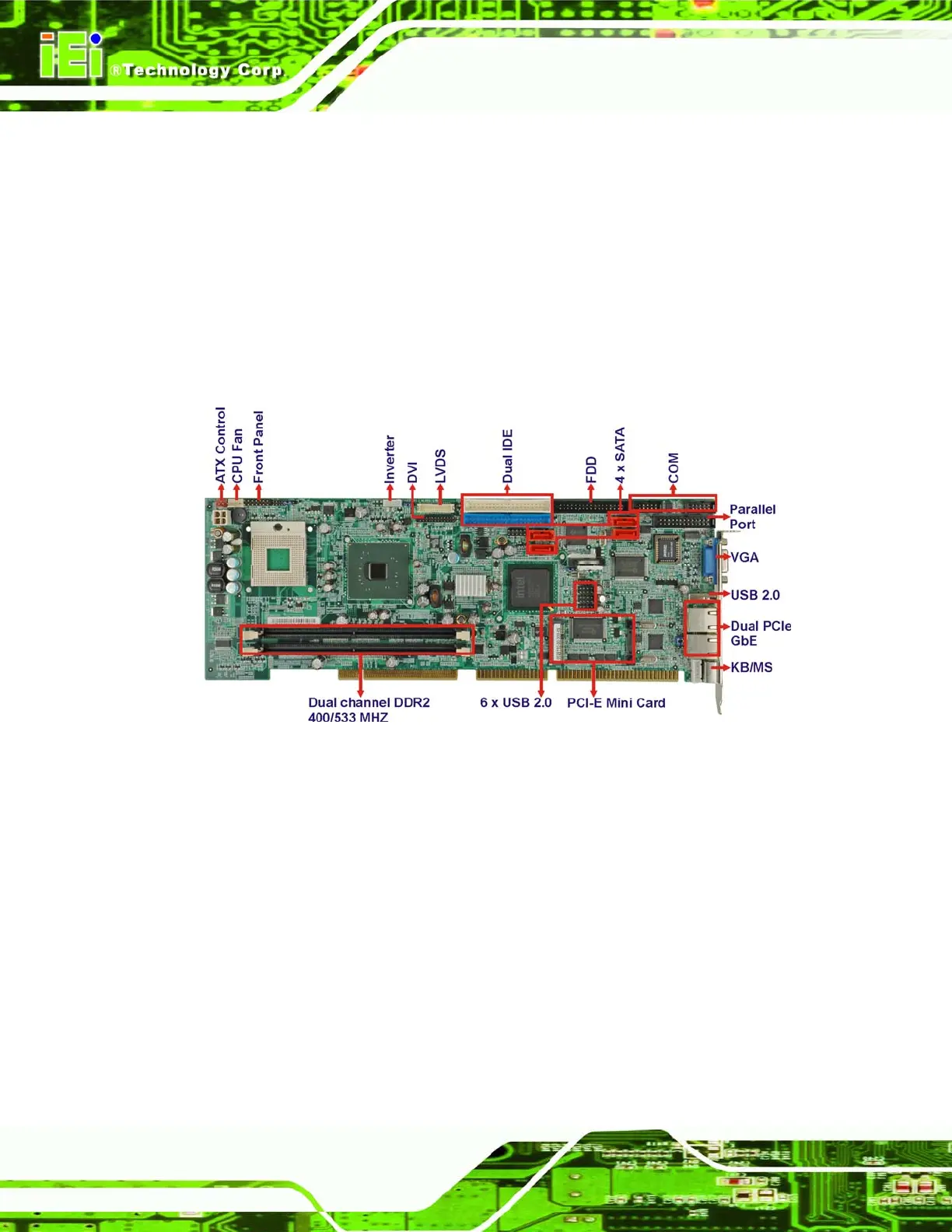

Figure 1-2: WSB-9152 Overview [Front View]
1.2.2 WSB-9152 Peripheral Connectors and Jumpers
The WSB-9152 has the following connectors on-board:
 1 x Audio connector
 1 x Backplane to main board connector
 1 x CPU fan connector
 1 x CPU power connector
 1 x DVI connector
 1 x Floppy disk drive (FDD) connector
 1 x Front panel connector
