WSB-9152 PICMG 1.0 SBC
Page 64

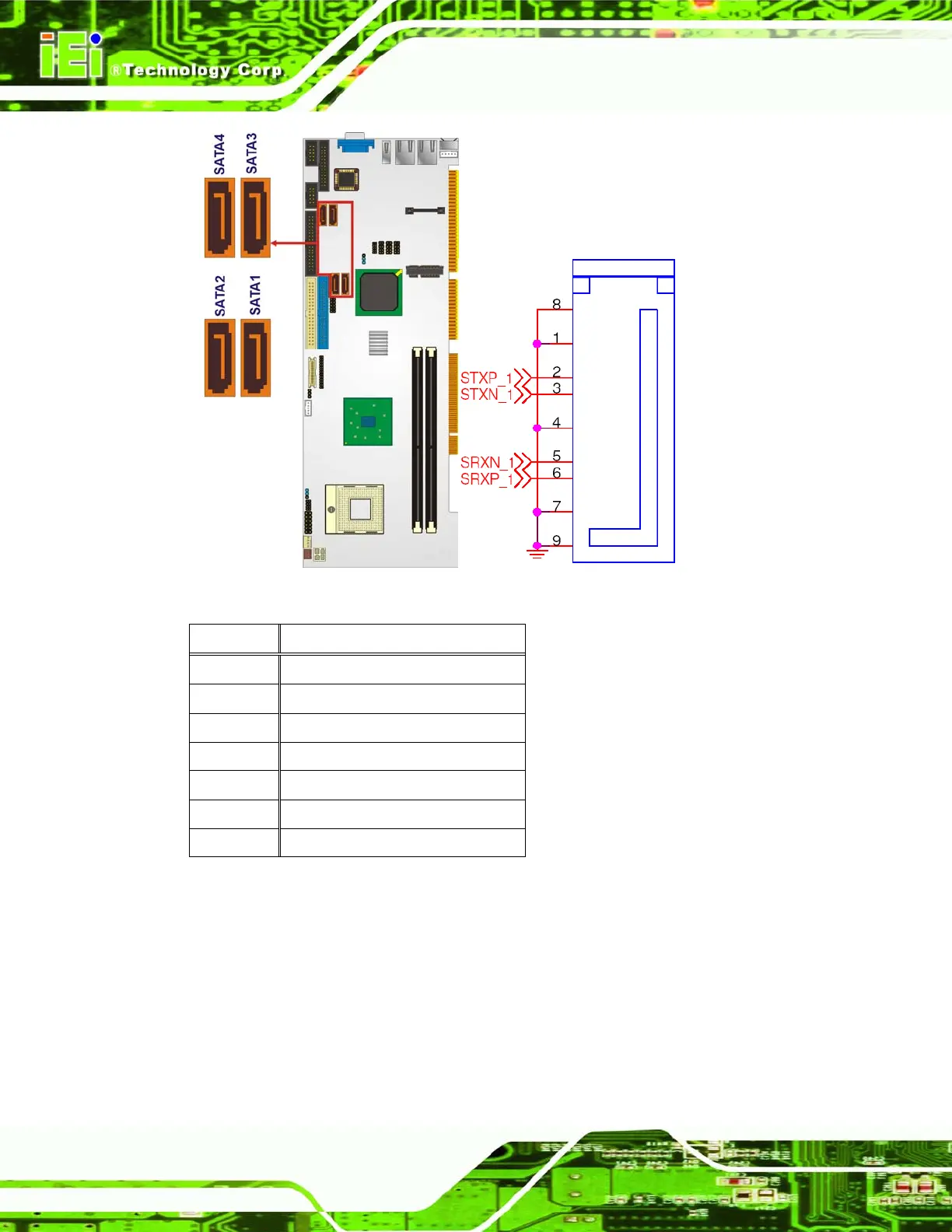

Figure 4-16: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 4-17: SATA Drive Connector Pinouts
4.2.16 Serial Port Connector (COM 2)
CN Label: COM1 and COM2
CN Type:
10-pin header (2x5)
CN Location:
See
Figure 4-17
