IEI Technology WSB-9152 - Figure 4-11: IDE Device Connector Locations

WSB-9152 PICMG 1.0 SBC
Page 55
CN Location:
See
Figure 4-11
CN Pinouts:
See
Table 4-12
One 40-pin IDE device connector supports connectivity to two hard disk drives.

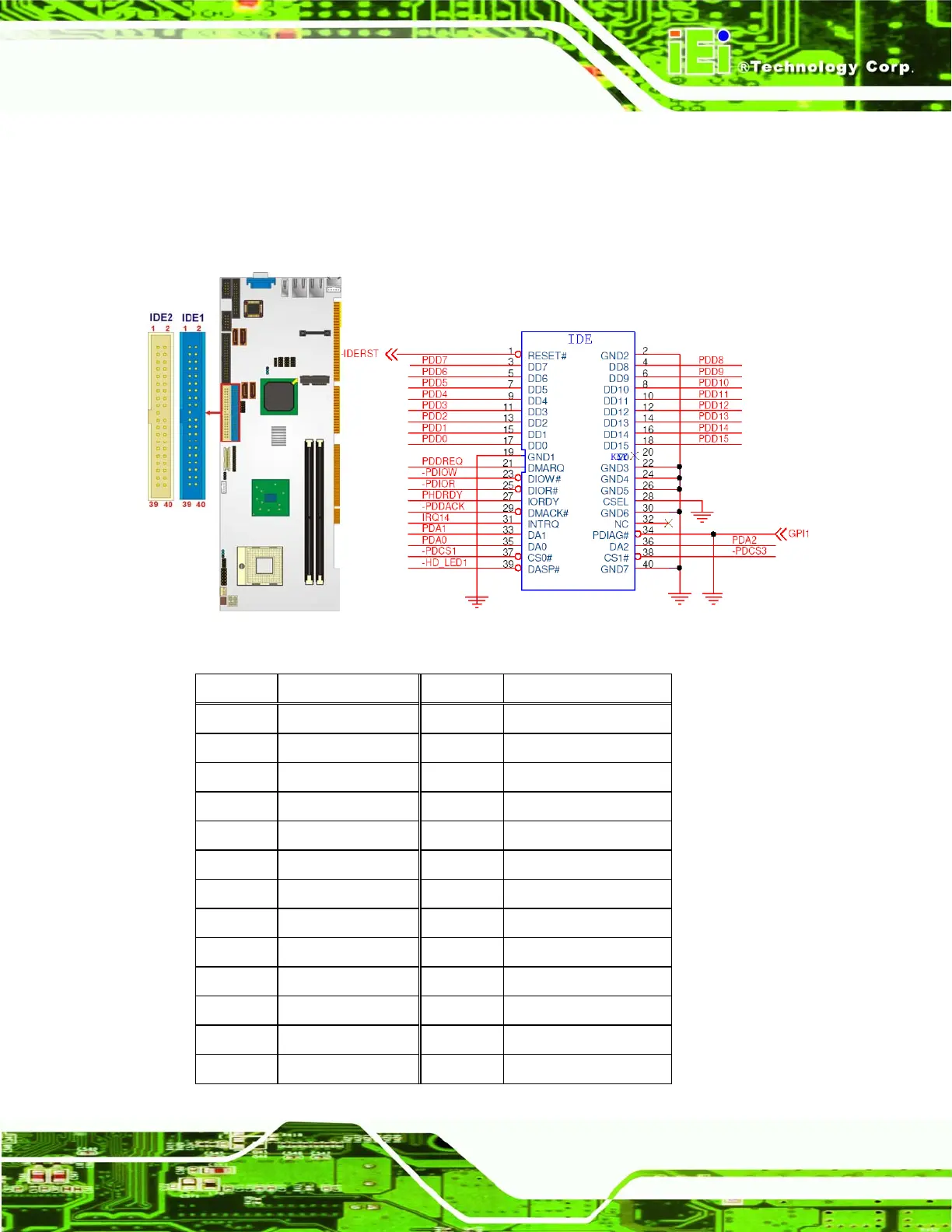

Figure 4-11: IDE Device Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 IDE DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
