2.6.7 JMicron JMB363 SATA II Controller
One PCIe lane is connected to the JMicron JMB363 dual port SATA controller shown in.

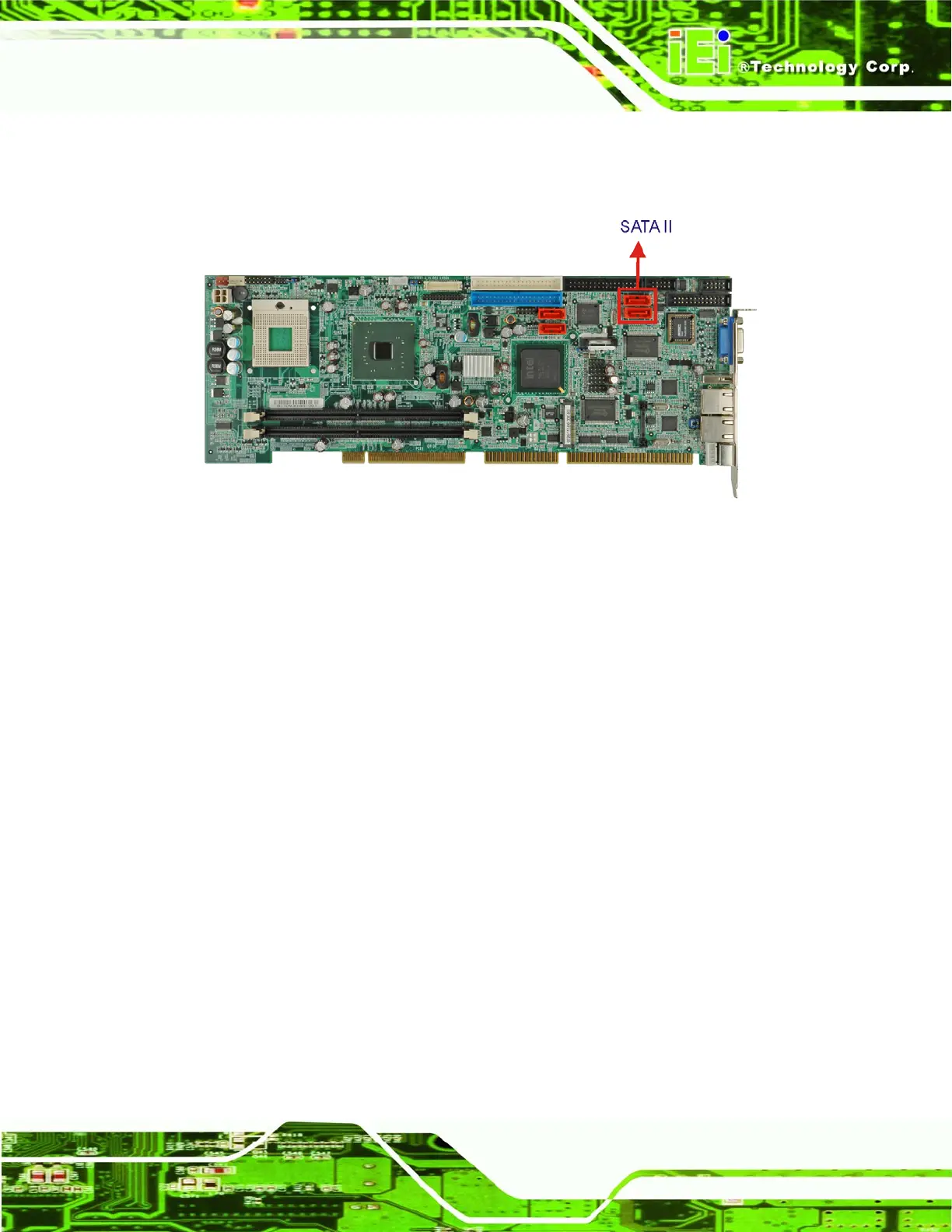

Figure 2-15: SATA II Ports
The JMB363 provides two SATA II ports that can support up two 3.0 Gb/s SATA II drives.
The JMB363 also provides the ability to create a RAID 0, RAID 1 or JBOD array. Native
Command Queuing (NCQ) and Hot Plugging are also supported. SATA controller
specifications are listed below.
 Supports two SATA II drives
 Supports 3.0 Gb/s data transfer speeds
 Supports Serial ATA Specification, Revision 1.0a
 Supports Serial ATA II extensions to Serial ATA 1.0a, Revision 1.1
 Supports RAID 0, RAID 1 and JBOD
2.6.8 Intel
®
ICH6M USB Controller
Up to seven high-speed, full-speed or low-speed USB devices are supported by the
ICH6M on the WSB-9152. High-speed USB 2.0, with data transfers of up to 480 MB/s, is
enabled with the ICH6M integrated Enhanced Host Controller Interface (EHCI) compliant
host controller. USB full-speed and low-speed signaling is supported by the ICH6M
integrated Universal Host Controller Interface (UHCI) controllers.
