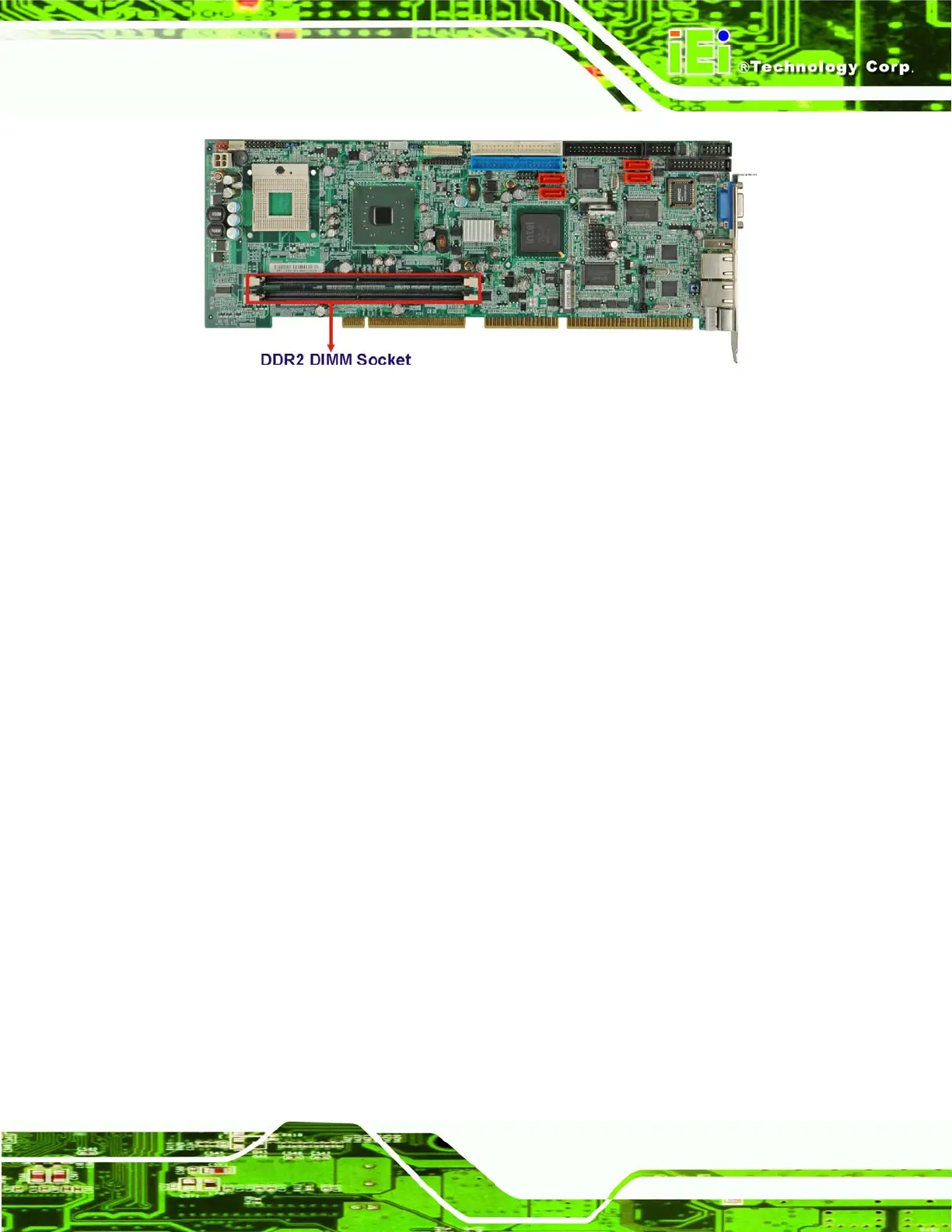

Figure 2-6: 240-pin DDR2 DIMM Socket
2.5.2 Intel
®
915GME Integrated Graphics
The Intel® 915GME Northbridge chipset has an integrated graphics engine that supports
the following display devices:
 Analog CRT
 Digital LVDS
2.5.2.1 Intel
®
915GME Analog CRT Support
A DB-15 VGA connector on the external peripheral interface connector panel is interfaced
to the Intel
®
915GME graphics engine. The Intel
®
915GME internal graphics engine, with
an integrated 400 MHz RAMDAC and hot plug CRT support, supports analog CRT
monitors with the following features:
 Supports max DAC frequency up to 400 MHz
 24-bit RAMDAC support
 DDC2B compliant
 Up to 2048 x 1536 mode support
