WSB-9152 PICMG 1.0 SBC
Page 66
4.2.17 USB Connectors (Internal)
CN Label: USB01, USB23 and USB45
CN Type:
8-pin header (2x4)
CN Location:
See
Figure 4-18
CN Pinouts:
See
Table 4-19
The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0
ports. Each USB connector can support two USB devices. Additional external USB ports
are found on the rear panel. The USB ports are used for I/O bus expansion.

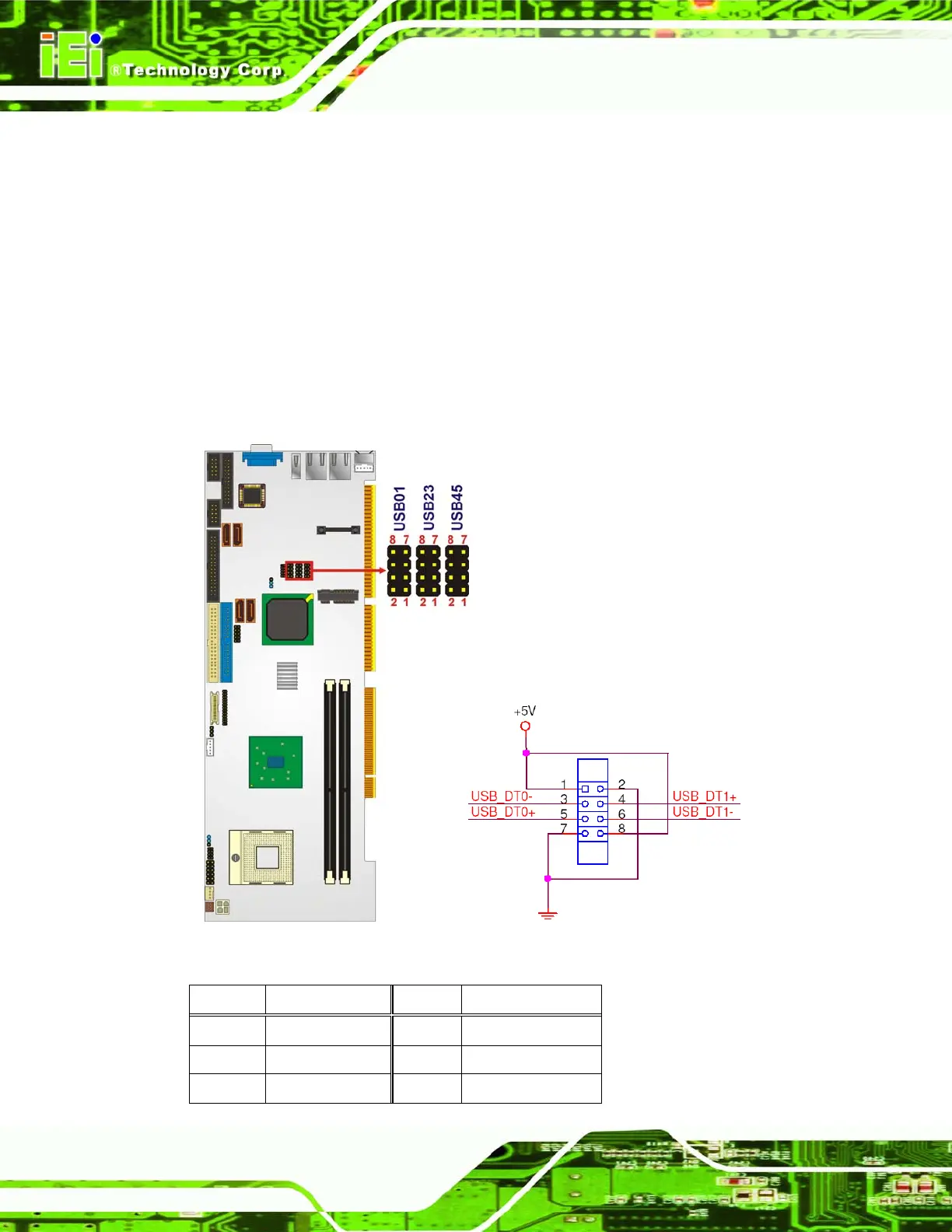

Figure 4-18: USB Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND
3 DATAN- 4 DATA1M-
5 DATAN+ 6 DATAM+
