WSB-9152 PICMG 1.0 SBC
Page 70
PIN NO. DESCRIPTION
4 GND
Table 4-23: USB Port Pinouts
4.3.4 VGA Connector
CN Label: VGA1
CN Type:
15-pin Female
CN Location:
See
Figure 4-19
CN Pinouts:
See
Figure 4-22 and Table 4-24
The WSB-9152 has a single 15-pin female connector for connectivity to standard display
devices.

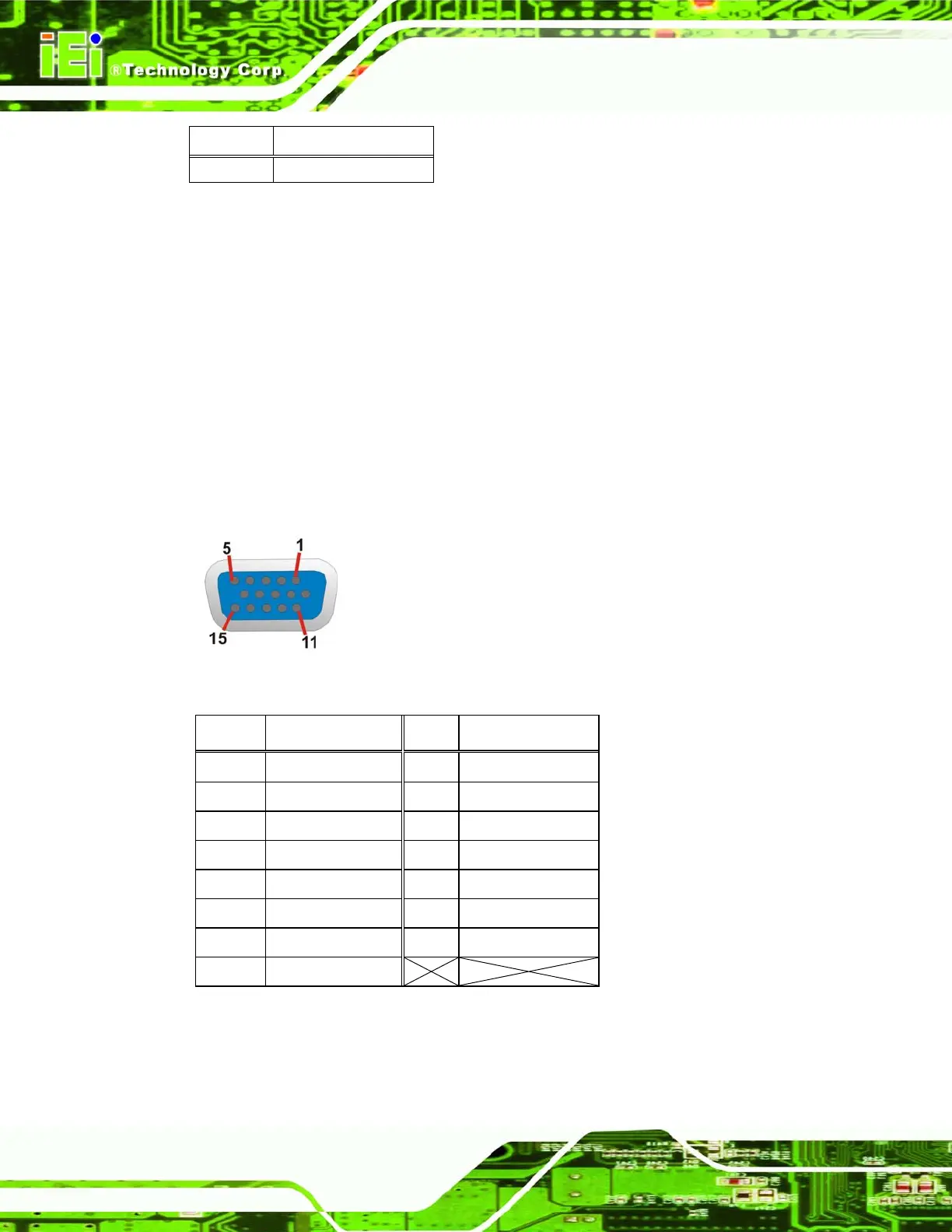

Figure 4-22: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC / NC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 4-24: VGA Connector Pinouts
