2.6.6 Intel
®
ICH6M SATA Controller
The integrated SATA controller on the ICH6M Southbridge supports two SATA drives on
the WSB-9152 with independent DMA operations.

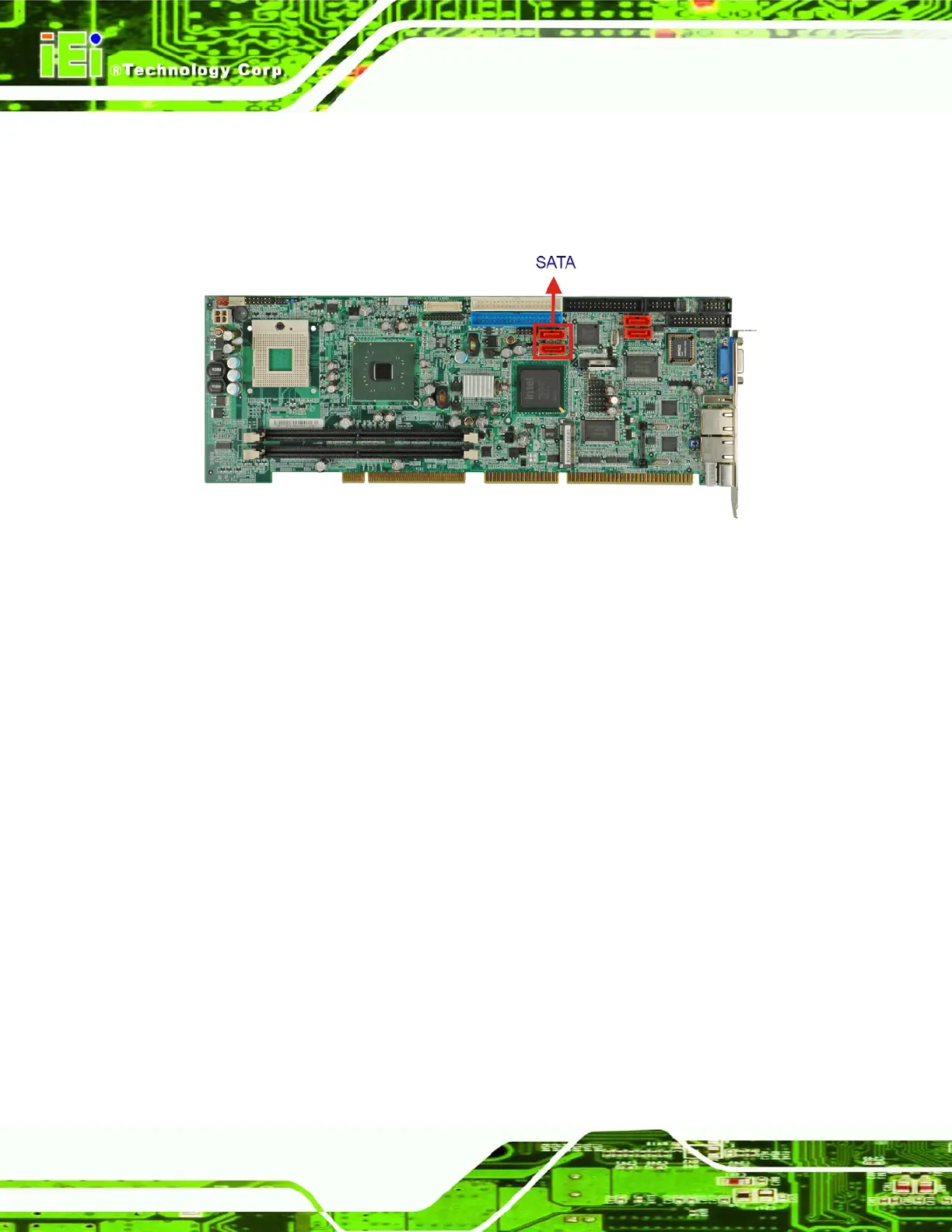

Figure 2-14: SATA Ports
SATA controller specifications are listed below.
 Supports two SATA drives
 Supports 1.5 Gb/s data transfer speeds
 Supports Serial ATA Specification, Revision 1.0a
