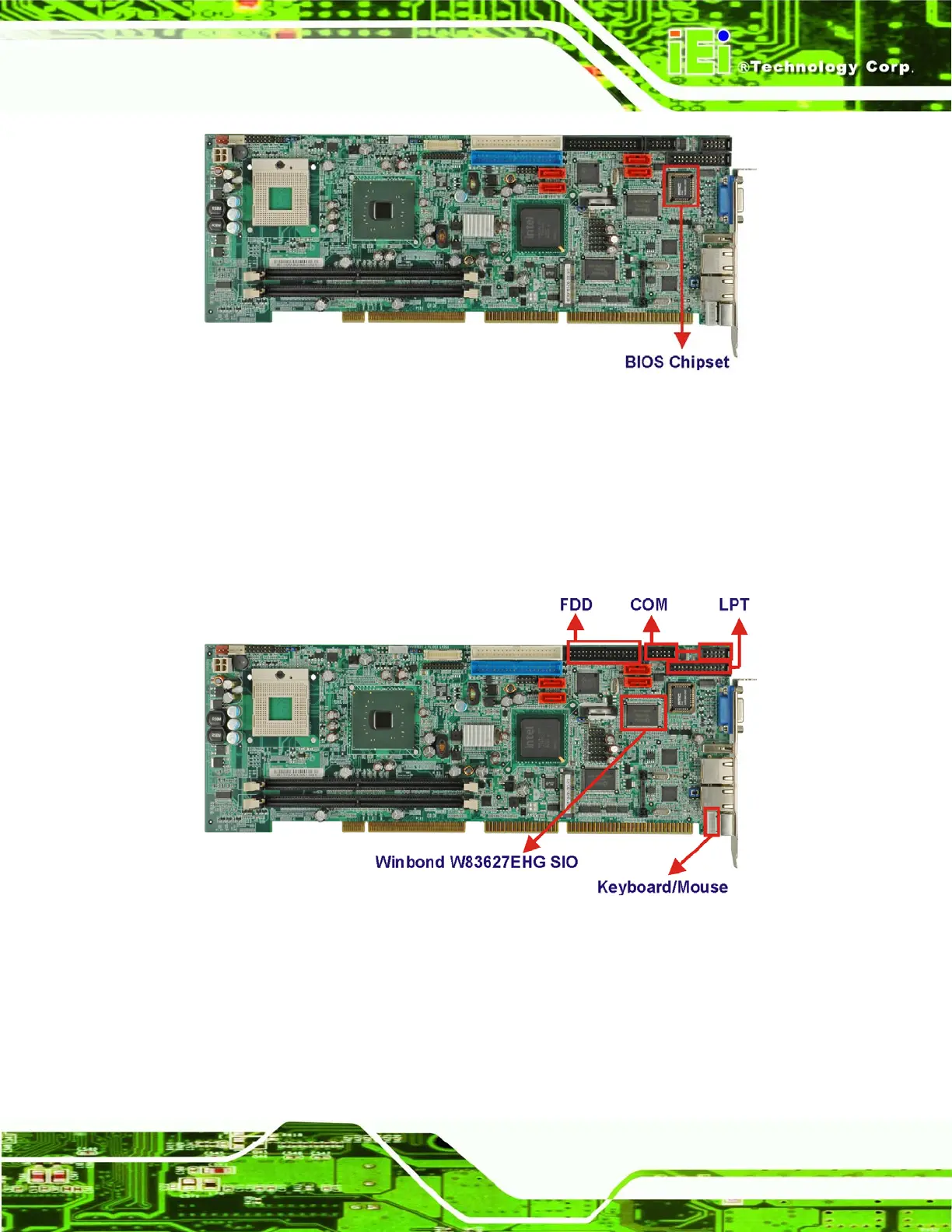

Figure 2-17: BIOS Chipset
2.7.2 Super I/O Chipset
The Winbond W83627EHG Super I/O chipset is connected to the ICH6-M Southbridge
through the LPC bus. The Winbond W83627EHG is an LPC interface-based Super I/O
device that comes with Environment Controller integration.
Figure 2-18: Super I/O Chipset
Some of the features of the Winbond W83627EHG chipset are listed below:
 LPC interface
 Two 16C550 UARTs for serial port control
