PIN NO. DESCRIPTION PIN NO. DESCRIPTION
7 GND 8 VCC
Table 4-19: USB Port Connector Pinouts
4.3 External Peripheral Interface Connector Panel
Figure 4-19 shows the WSB-9152 rear panel. The WSB-9152 rear panel consists of two
RJ-45 Ethernet connectors, a PS/2 keyboard connector a USB port and a VGA connector.
These connectors are accessible when the WSB-9152 is installed in a chassis.

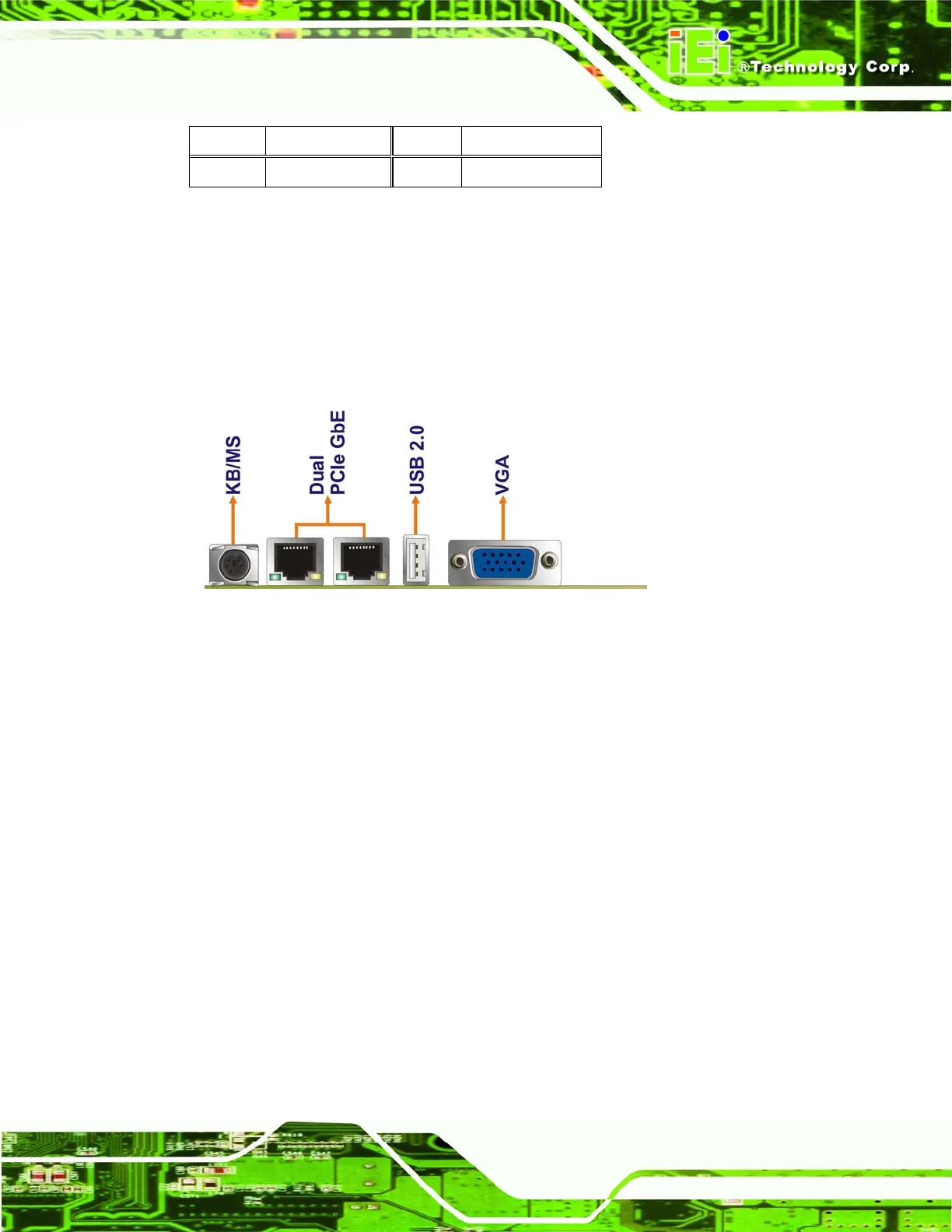

Figure 4-19: WSB-9152 External Peripheral Interface Connector
4.3.1 Keyboard/Mouse Connector
CN Label: KB/MS
CN Type:
PS/2
CN Location:
See
Figure 4-19
CN Pinouts:
See
Table 4-20, Figure 4-20
The PCIE-9450 keyboard and mouse connector is a standard PS/2 connector.
