WSB-9152 PICMG 1.0 SBC
Page 62

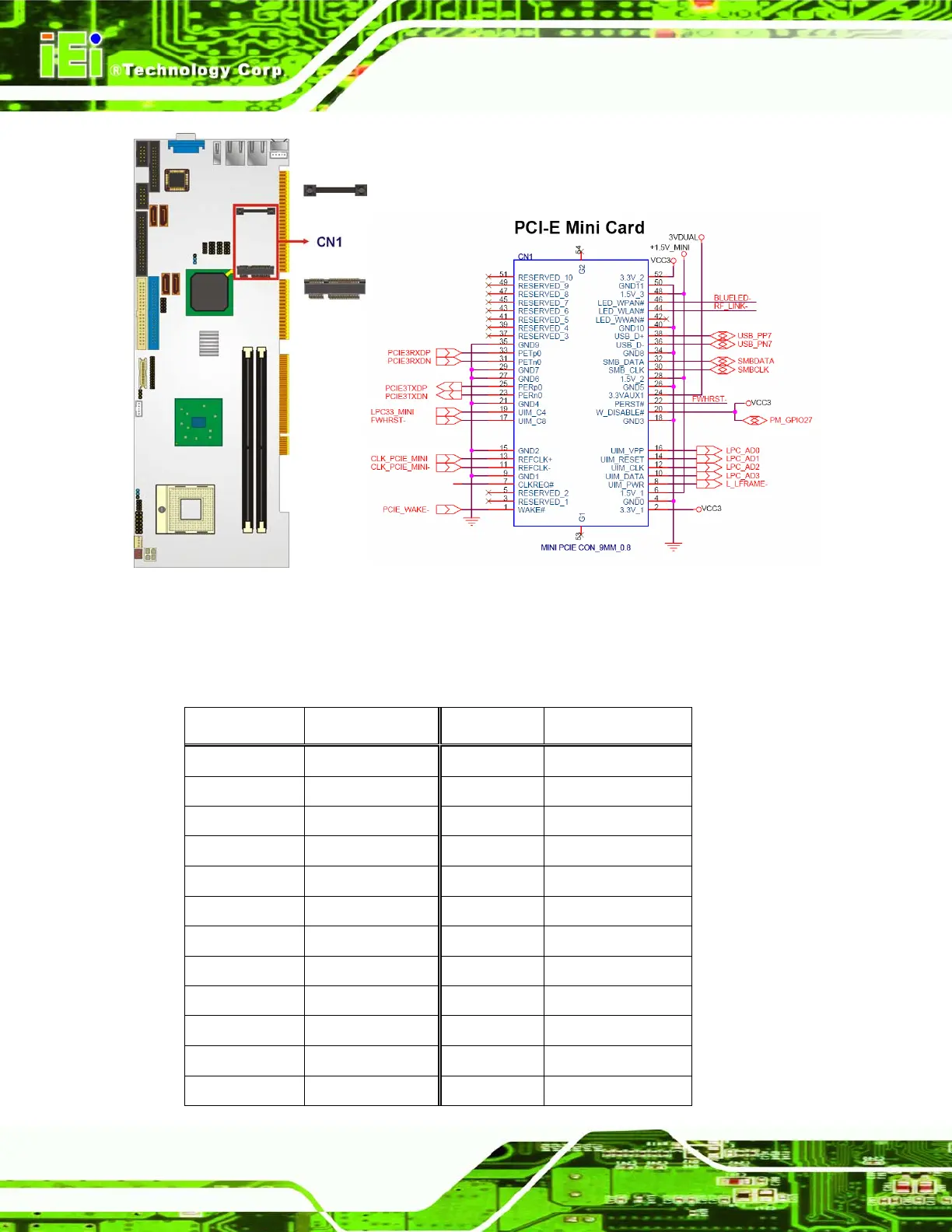

Figure 4-15: PCI Slot Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 WAKE# 2 3.3 V_1
3 RESERVED_1 4 GND0
5 RESERVED_2 6 1.5 V_1
7 CLKREQ# 8 UIM_PWR
9 GND1 9 UIM_DATA
11 REFCLK- 12 UIM_CLOCK
13 REFCLK+ 14 UIM_RESET
15 GND2 16 UIM_VPP
17 UIM_C8 18 GND3
19 UIM_C4 20 W_DISABLE#
21 GND4 22 PERST#
23 PERn0 24 3.3 VAUX1
