WSB-9152 PICMG 1.0 SBC
Page 54

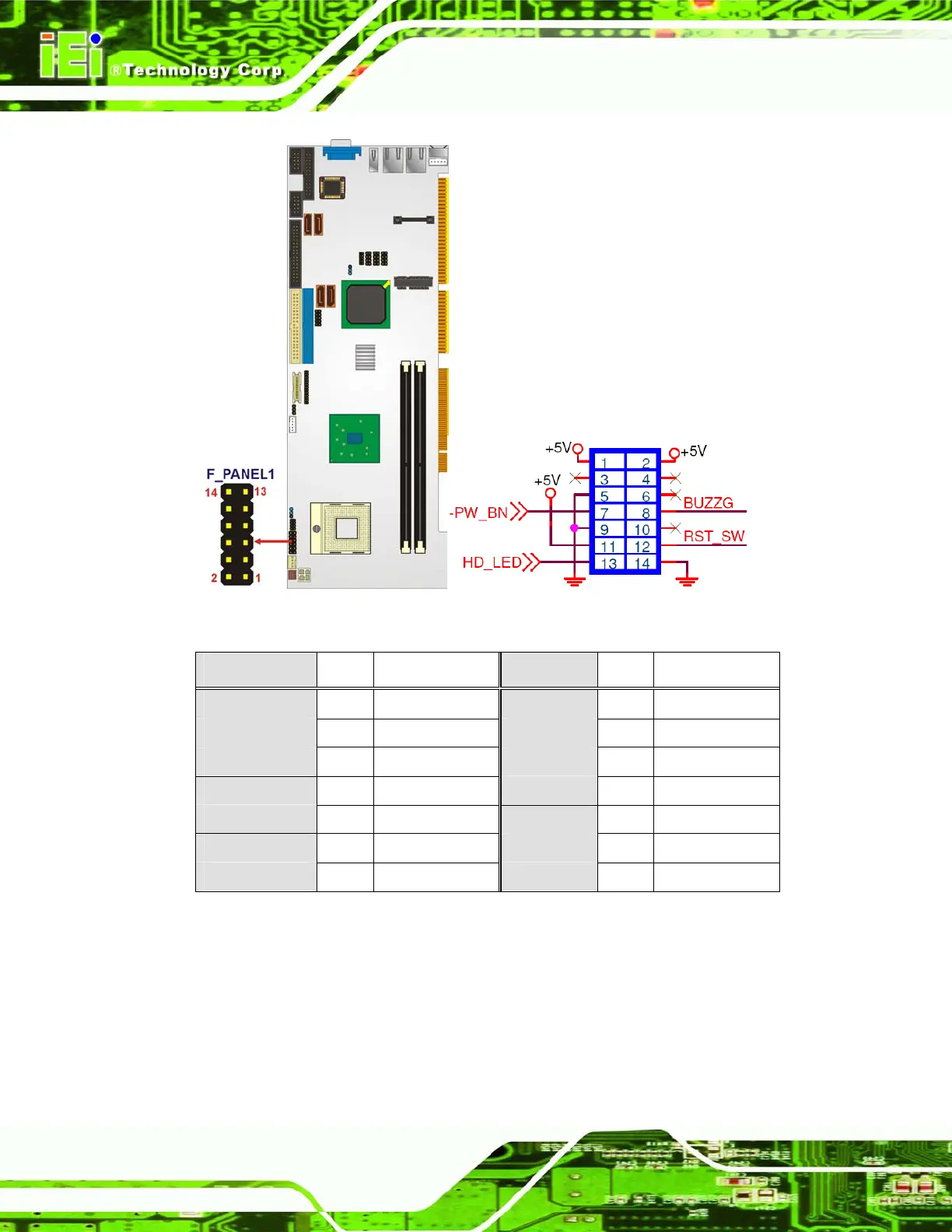

Figure 4-10: Front Panel Connector Pinout Locations
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
Power LED 1 +5 V Speaker 2 +5 V
3 N/C 4 N/C
5 Ground 6 N/C
Power Button 7 PWRBTN- 8 Speaker
9 GND Reset 10 N/C
HDD LED 11 +5 V 12 Reset-
13 HDD LED- 14 GND
Table 4-11: Front Panel Connector Pinouts
4.2.10 IDE Connector (40-pin)
CN Label: IDE1, IDE2
CN Type:
40-pin header (2x20)
