WSB-9152 PICMG 1.0 SBC
Page 44
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 SYNC 2 BITCLK
3 SDOUT 4 PCBEEP
5 SDIN 6 RST#
7 VCC 8 GND
9 +12 V
Table 4-3: Audio Connector Pinouts (9-pin)
4.2.2 Backlight Inverter Connector
CN Label: INVERTER1
CN Type:
5-pin wafer (1x5)
CN Location:
See
Figure 4-3
CN Pinouts:
See
Table 4-4
The backlight inverter connector provides the backlight on the LCD display connected to
the WSB-9152 with +12 V of power.

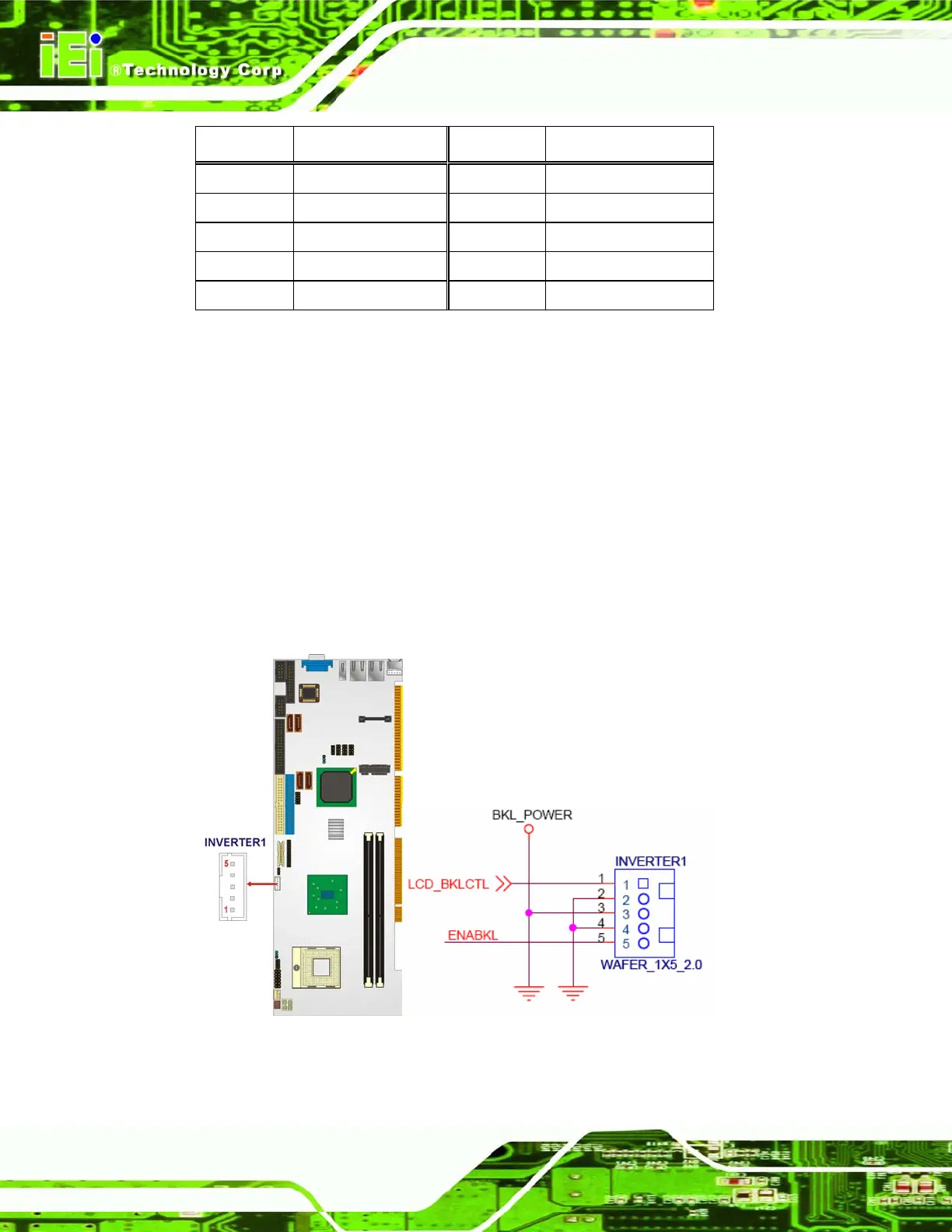

Figure 4-3: Panel Backlight Connector Pinout Locations
