WSB-9152 PICMG 1.0 SBC
Page 57

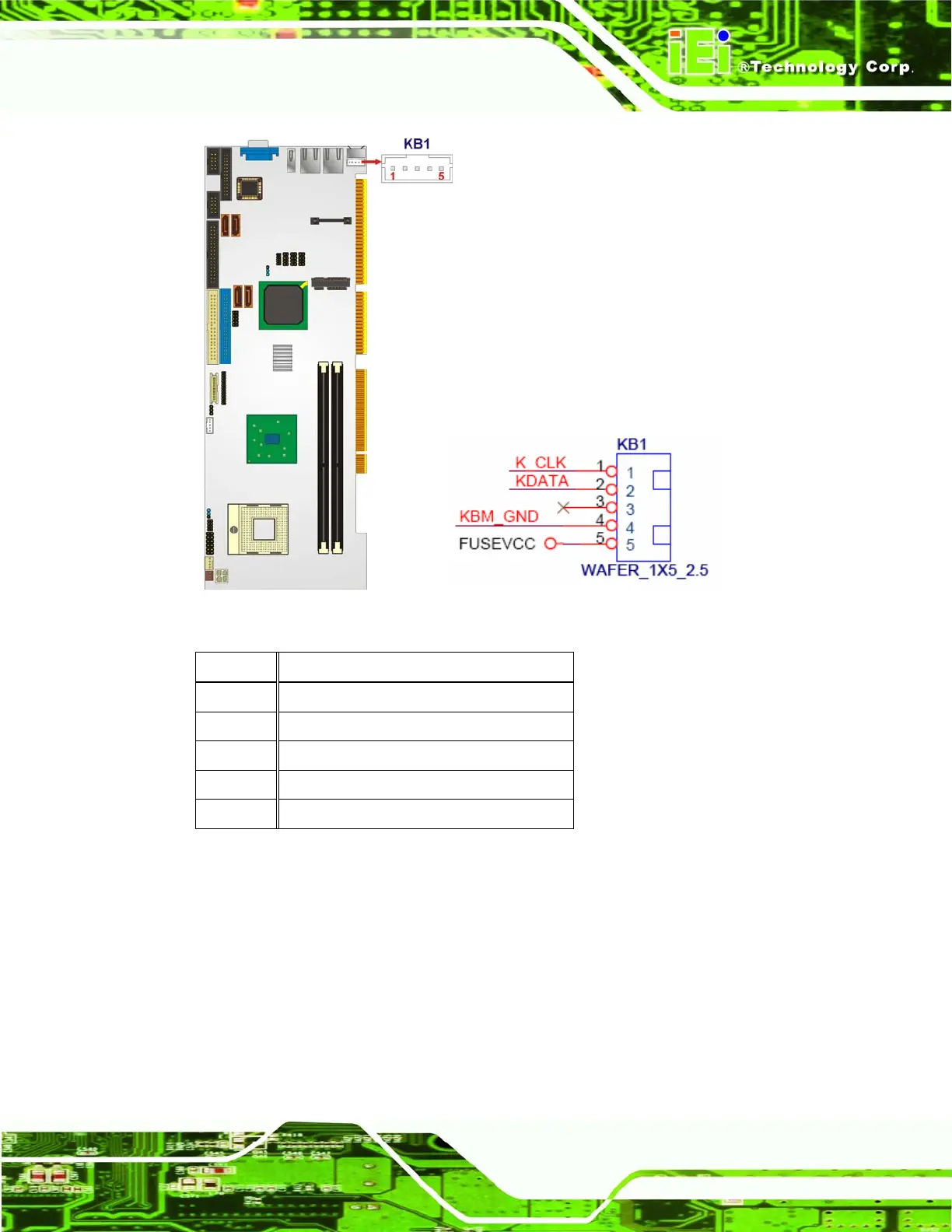

Figure 4-12: Keyboard Connector Location
PIN NO. DESCRIPTION
1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GROUND
5 VCC
Table 4-13: Keyboard Connector Pinouts
4.2.12 LVDS LCD Connector
CN Label: LVDS1
CN Type:
30-pin crimp (2x10)
CN Location:
See
Figure 4-13
CN Pinouts:
See
Table 4-14
