2.5.2.2 Intel
®
915GME LVDS Support
A 30-pin LVDS crimp connector is interfaced to the Intel® 915GME graphics engine.

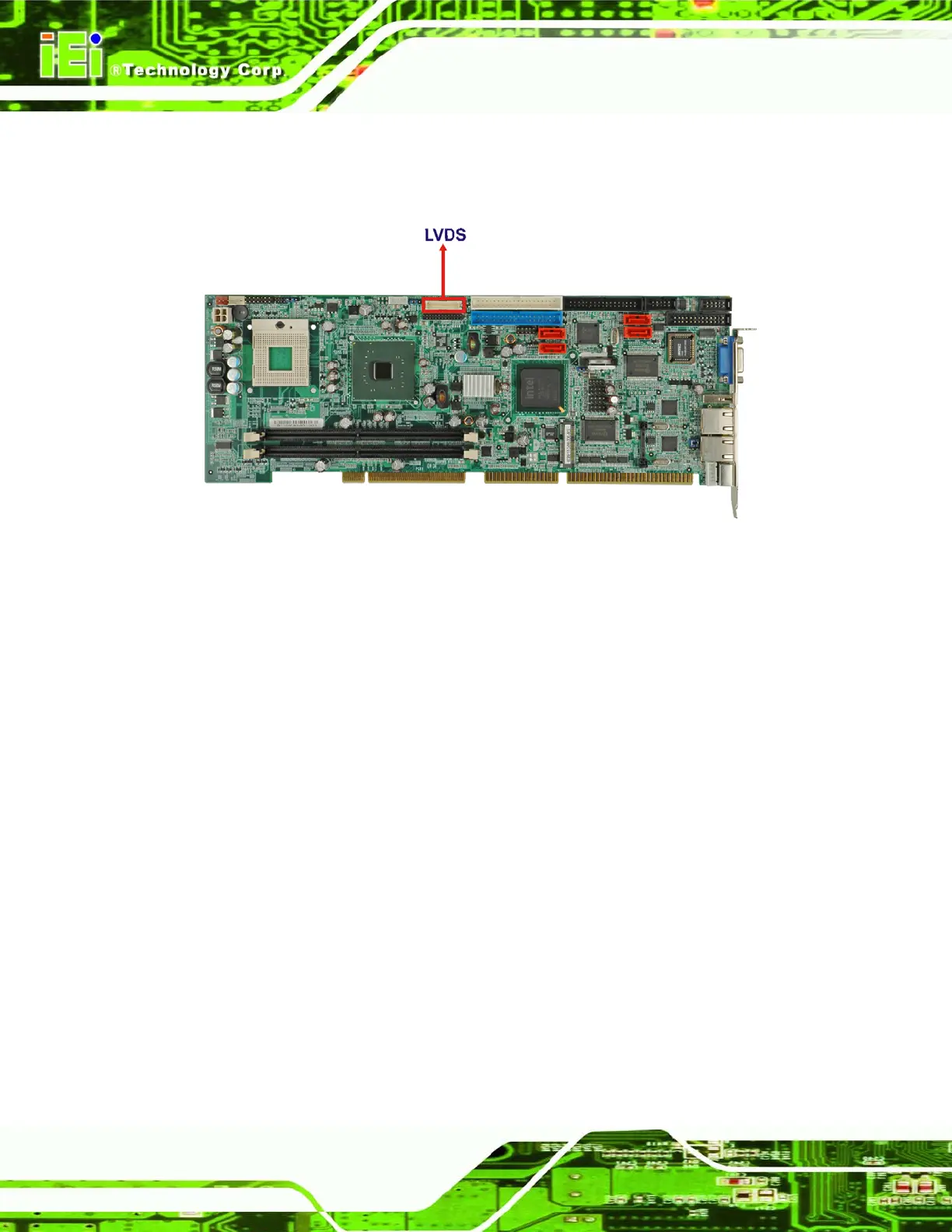

Figure 2-7: LVDS Connector
The Intel® 915GME internal graphics engine supports LVDS displays with the following
features:
 Compliant with ANSI/TIA/EIA -644-2001 spec
 Integrated dual channel LVDS interface supported on Display Pipe B only
 Supports 25 to 112 MHz single/dual channel LVDS interface
o Single channel LVDS interface support: 1 x 18 bpp
o Dual channels LVDS interface support: 2 x 18 bpp
 TFT panel type supported
 Maximum Panel size supported up to UXGA
 Maximum Wide panel size supported up to WUXGA
 Ambient Light Sense support for automatic backlight brightness adjustments
 Intel Display Power Savings Technology 2.0 support
 Supports Single pipe simultaneous display with the CRT DAC and the LVDS
ports under the following conditions:
o Timings must match for both display
 Panel Fitting. Panning, and Center mode supported
