IEI Technology WSB-9152 - Digital Video Interface (DVI) Connector; Figure 4-8: DVI Connector Location

WSB-9152 PICMG 1.0 SBC
Page 50
4.2.7 Digital Video Interface (DVI) Connector
CN Label: DVI1
CN Type:
26-pin header
CN Location:
See
Figure 4-8
CN Pinouts:
See
Table 4-9
The digital video interface connector is a digital visual interface for a digital display. The
IO-KIT-001 is included with the WSB-9152DVI and WSB-9152SDVI.

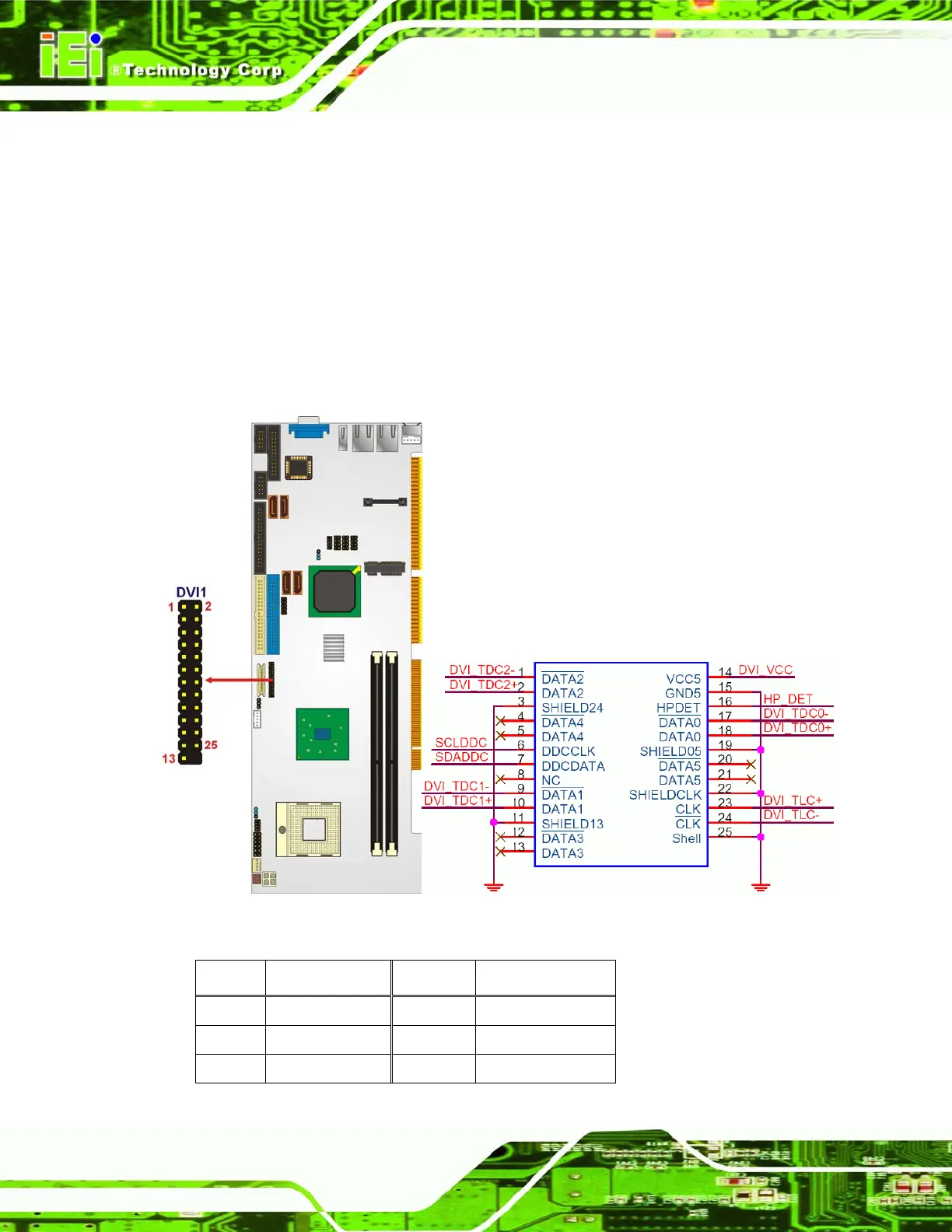

Figure 4-8: DVI Connector Location
PIN NO DESCRIPTION PIN NO DESCRIPTION
1 Data 2- 14 +5 V Power
2 Data 2+ 15 GND
3 GND 16 Hot Plug Detect
