The 30-pin LVDS LCD connector can be connected to single channel or dual channel,
18-bit or 36-bit LVDS panel.

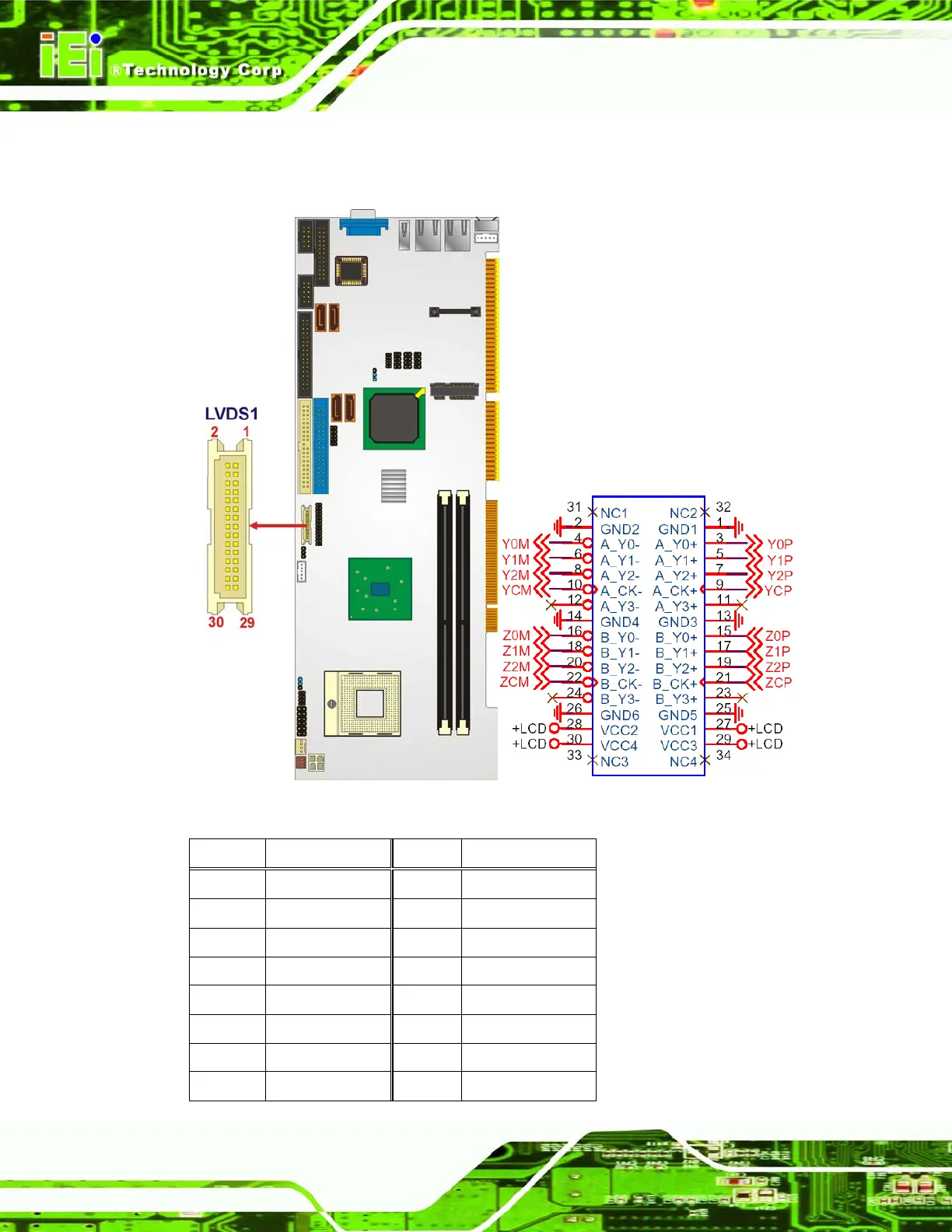

Figure 4-13: LVDS LCD Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 2 GROUND
3 LVDSA_Y0+ 4 LVDSA_Y0-
5 LVDSA_Y1+ 6 LVDSA_Y1-
7 LVDSA_Y2+ 8 LVDSA_Y2-
9 LVDSA_CLK+ 10 LVDSA_CLK-
11 N/C 12 N/C
13 GROUND 14 GROUND
15 LVDSB_Y0+ 16 LVDSB_Y0-
