WSB-9152 PICMG 1.0 SBC
Page 68

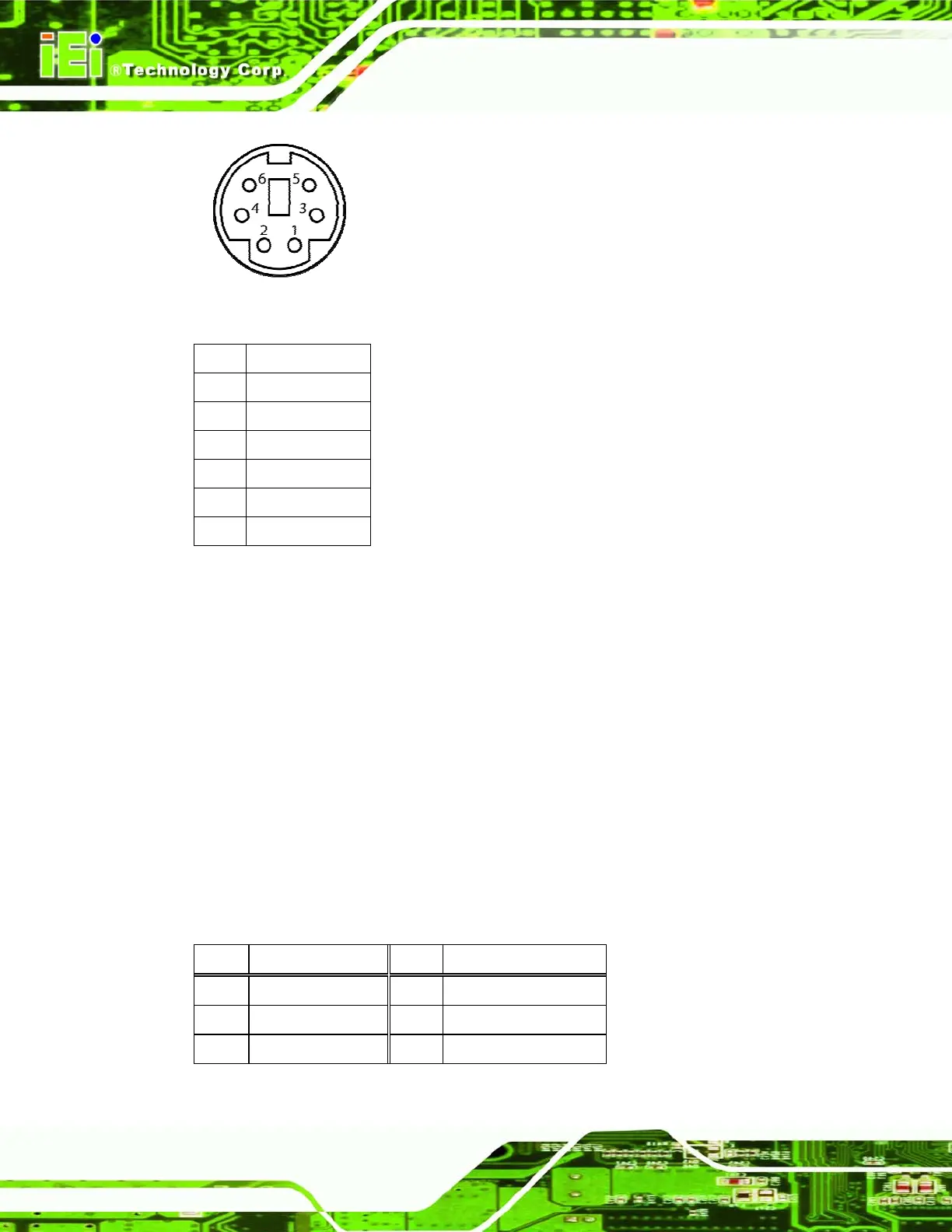

Figure 4-20: PS/2 Pinout and Configuration
PIN DESCRIPTION
1 KB DATA
2 MS DATA
3 GND
4 VCC
5 KB CLOCK
6 MS CLOCK
Table 4-20: Keyboard Connector Pinouts
4.3.2 LAN Connectors
CN Label: LAN1 and LAN2
CN Type:
RJ-45
CN Location:
See
Figure 4-19
CN Pinouts:
See
Table 4-21
The WSB-9152 is equipped with two built-in PCI3 GbE Ethernet controllers. The
controllers can connect to the LAN through two RJ-45 LAN connectors. There are two
LEDs on the connector indicating the status of LAN. The pin assignments are listed in the
following table:
PIN DESCRIPTION PIN DESCRIPTION
1 TXA+ 5 TXC-
2 TXA- 9 TXB-
3 TXB+ 10 TXD+
