WSB-9152 PICMG 1.0 SBC
Page 48
CN Pinouts:
See
Table 4-7
The 4-pin ATX power connector is connected to an ATX power supply.

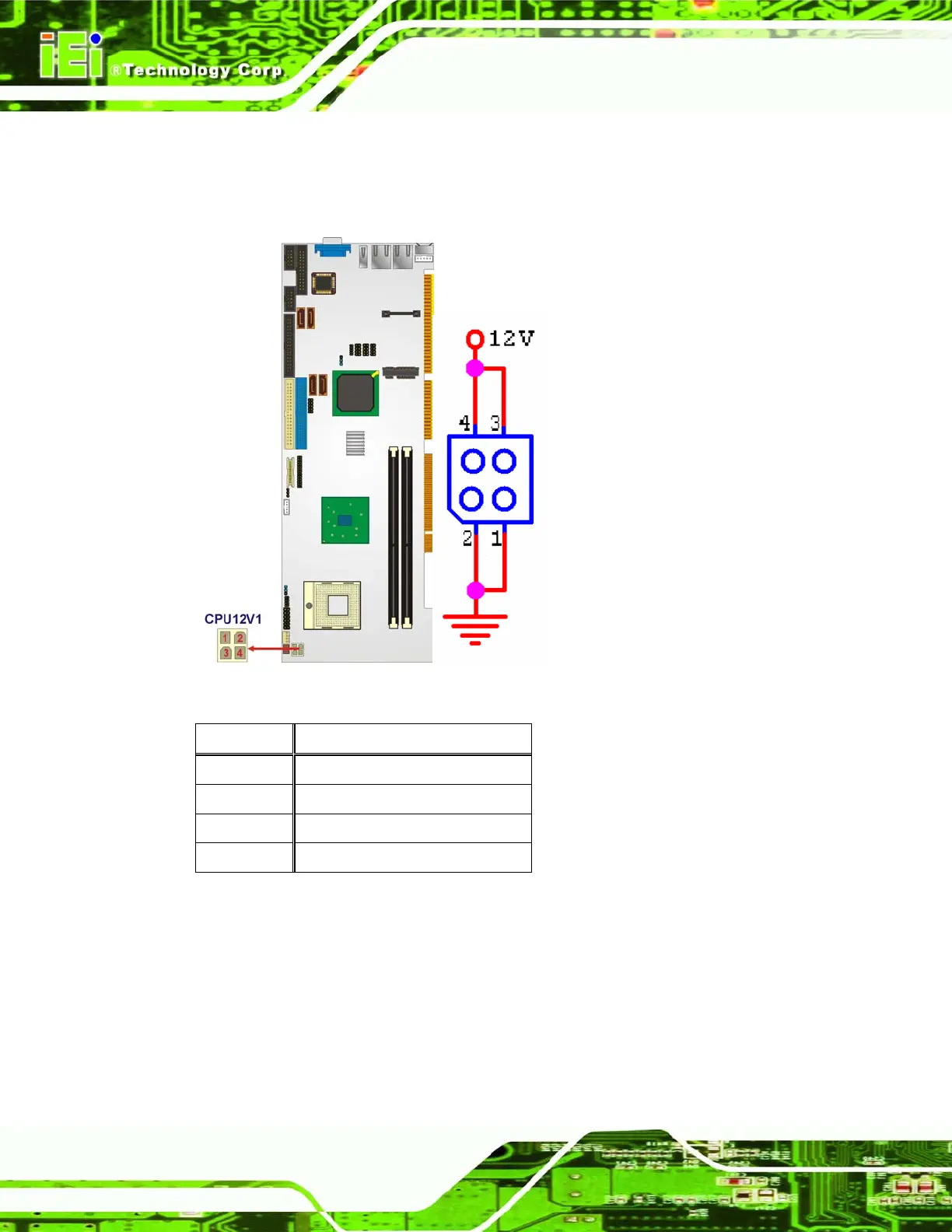

Figure 4-6: ATX Power Connector Location
PIN NO. DESCRIPTION
1 GROUND
2 GROUND
3 +12 V
4 +12 V
Table 4-7: ATX Power Connector Pinouts
4.2.6 Digital Input/Output (DIO) Connector
CN Label: DIO1
CN Type:
10-pin header (2x5)
CN Location:
See
Figure 4-7
