IEI Technology WSB-9152 - Figure 4-17: COM Connector Pinout Locations; Table 4-18: COM Connector Pinouts

WSB-9152 PICMG 1.0 SBC
Page 65
CN Pinouts:
See
Table 4-18
The 10-pin serial port connectors provide a further two RS-232 serial communications
channels. The serial port connectors can be connected to external RS-232 serial port
devices.

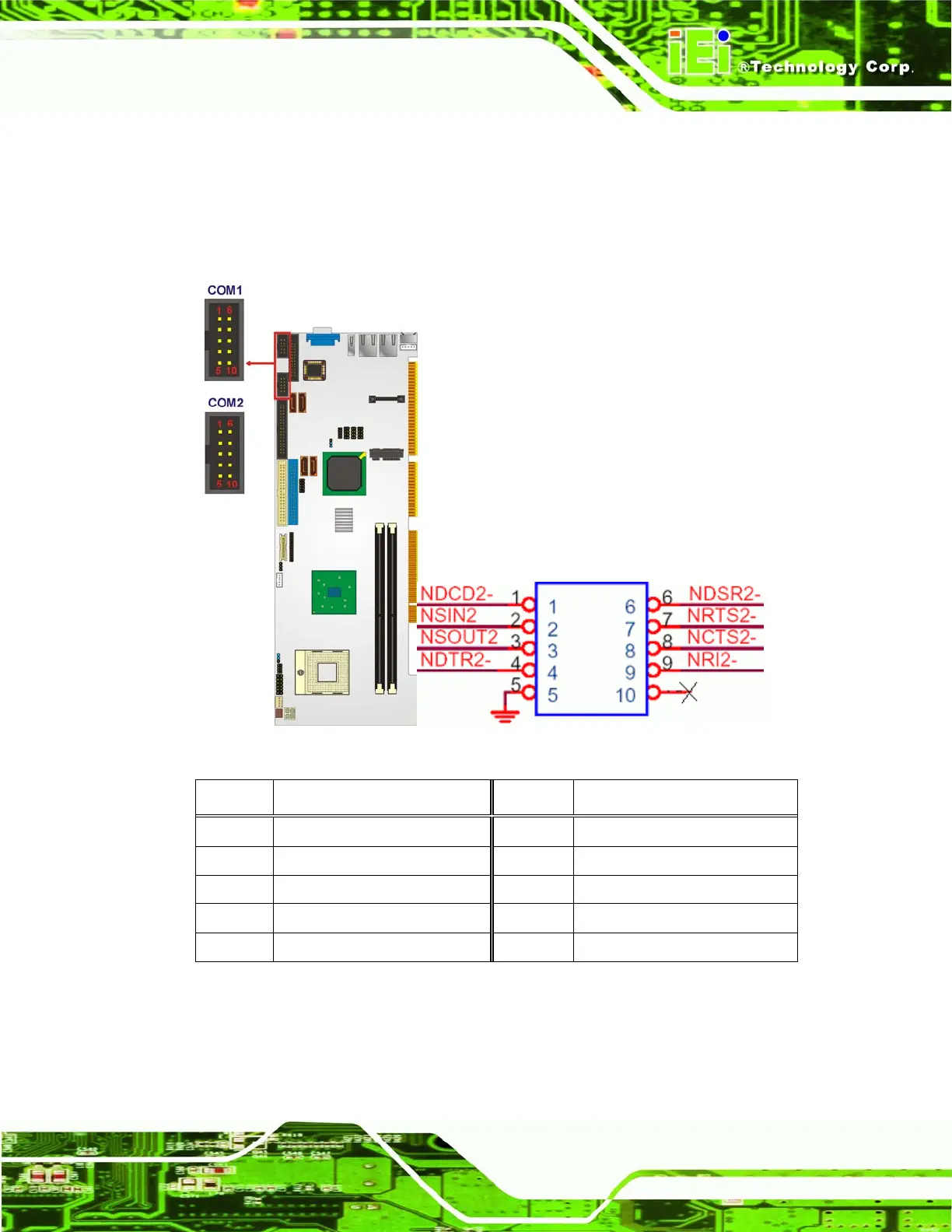

Figure 4-17: COM Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Data Carrier Detect (DCD) 2 Receive Data (RXD)
3 Transmit Data (TXD) 4 Data Terminal Ready (DTR)
5 Ground (GND) 6 Data Set to Ready (DSR)
7 Request to Send (RTS) 8 Clear to Sent (CTS)
9 Ring Indicator (RI) 10 Ground (GND)
Table 4-18: COM Connector Pinouts
