4 - HANDLING AND INSTALLATION SMART320
EN
4 - Pag. 11 / 26

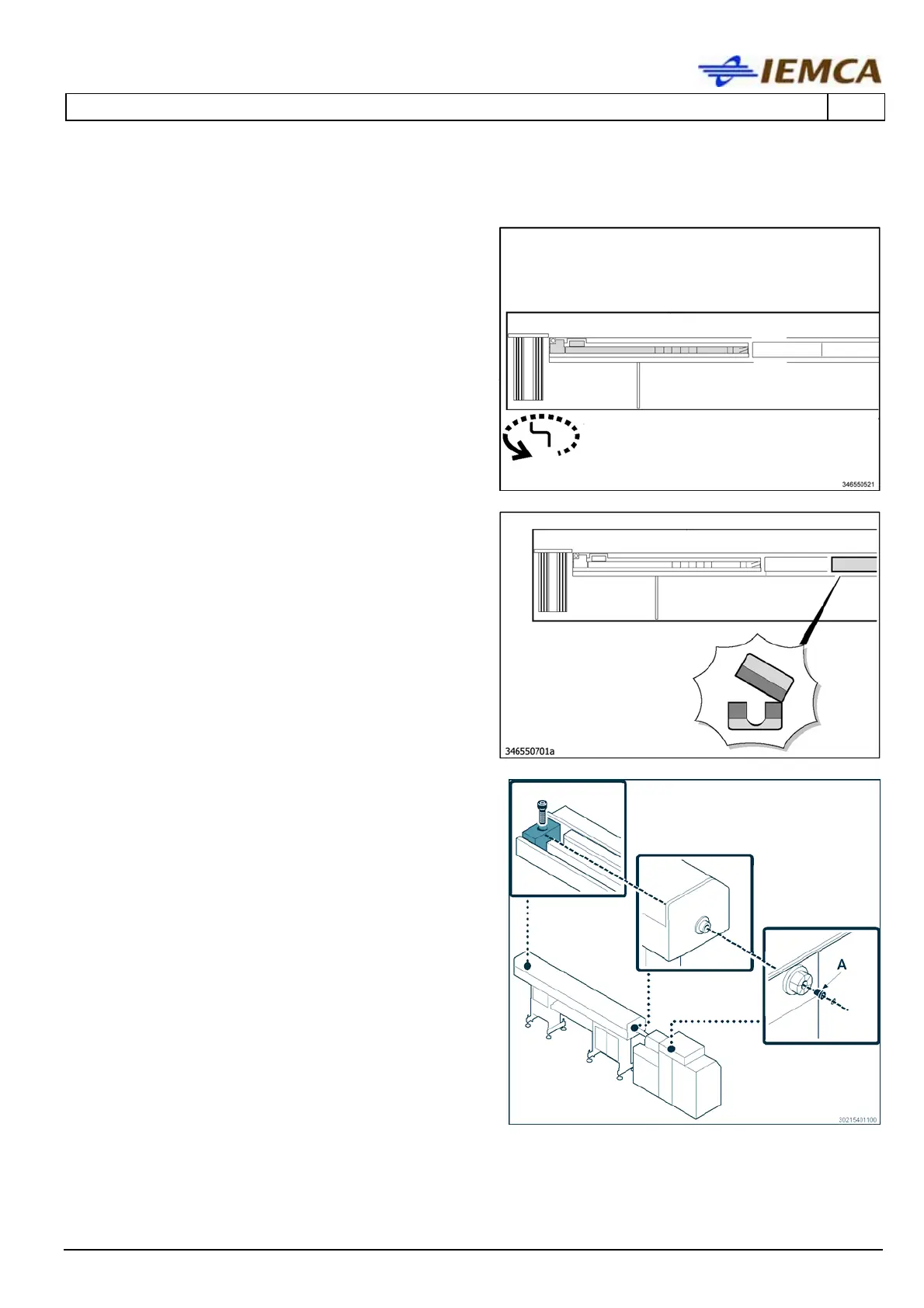

ALIGNMENT
• Insert the (supplied) crank in the intermediate
drive shaft and move the bar-pusher to its
backwards limit stop.
• Connect the pneumatic system to the power
supply.
• Open the upper guide channels by pressing
the manual key on the solenoid valve for
guide channel opening/closing or, in case the
bar feeder is also connected to the power
supply, press the key for the guide channel
opening/closing on the keyboard.
To obtain alignment insert a ø 1 mm nylon wire
between the lathe collet and the tool which is
placed before the lower and rear guide channel,
proceeding as follows:
• place a drilled bush (A) in the lathe collet;
• stretch out the wire to the hole in the tool
which is placed on the lower guide channel.
