7.1 4K Format
152
UHK-430/CCU-430 1710 VER2 (E)

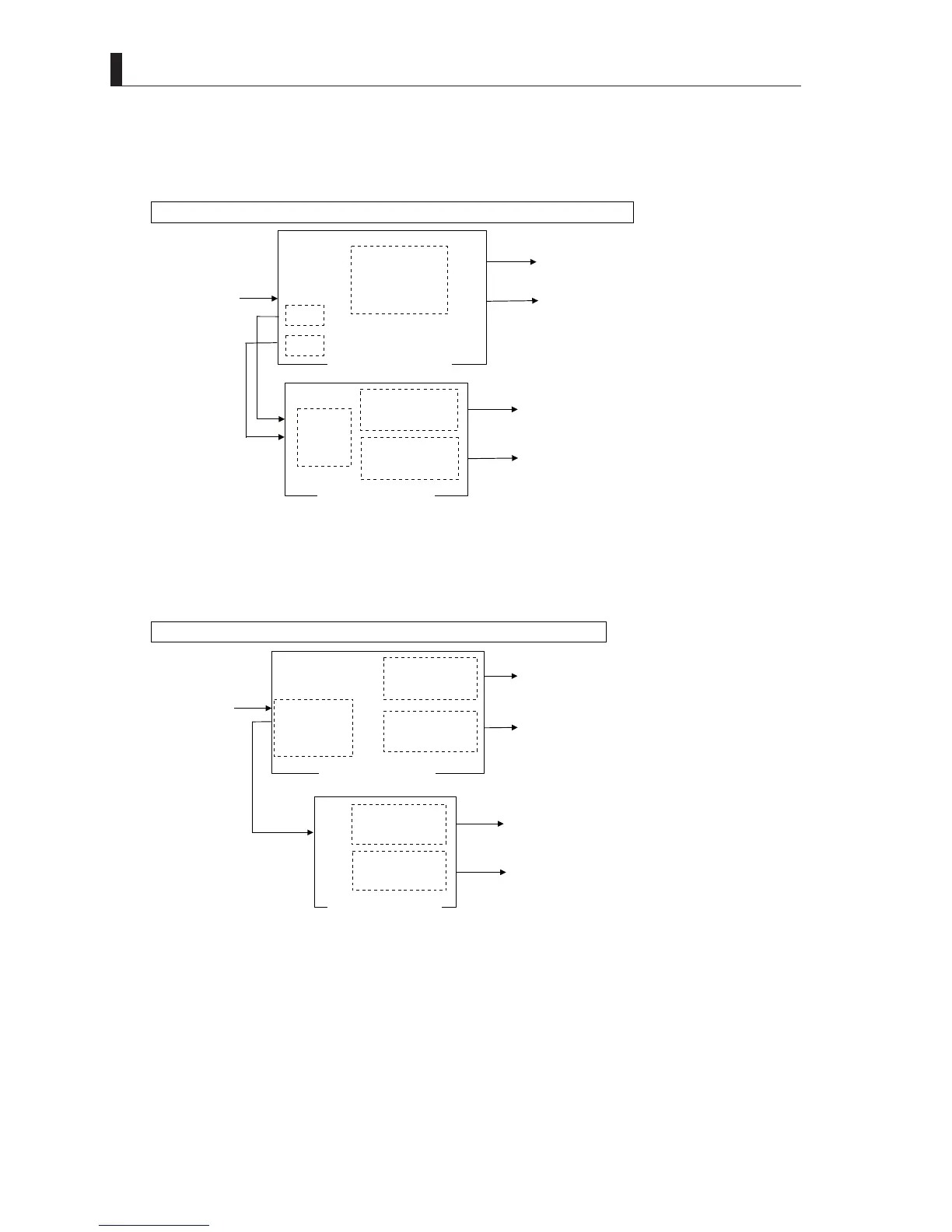

3 Plan B-1 (Optional implementation: Normal speed mode)
- TRX_VP module is the 4K output mode.
- HD_VP module implemented
TRX VPﾓｼﾞ ﾙ
  
HD OUT-3（D/CorC/O）
HD OUT-4（D/CorC/O）
4K QL OUT-1
（2SI or SQD)
4K QL OUT-2
（2SI or SQD)
D/C
C/O
D/C or
C/O
Select
Camera output CCU video processing Video signal output
SHAD,γ,MTX,
DTL,etc
SHAD,γ,MTX,
DTL、etc
SHAD,γ,MTX,
DTL,etc
HD_VP Module
TRX_VP Module
4K Signal
4 Plan B-2 (Optional implementation: Double speed mode)
- TRX_VP module is HD double speed mode.
- HD_VP module implemented
  
1080/100P
or
1080/120P
Signal
HD OUT-3（50P or 60P）
HD OUT-4（50P or 60P）
HD OUT-1（100P or 120P
）
HD OUT-2（100P or 120P)
1080/50P
or
1080/60P
Signal
Double speed
⇒ normal
speed
conversion
Camera output CCU video processing Video signal output
HD_VP Module
SHAD, γ, MTX,
DTL、etc
SHAD, γ, MTX,
DTL, etc
SHAD, γ, MTX,
DTL, etc
SHAD, γ, MTX,
DTL, etc
TRX_VP Module
