232
UHK-430/CCU-430 1710 VER2 (E)

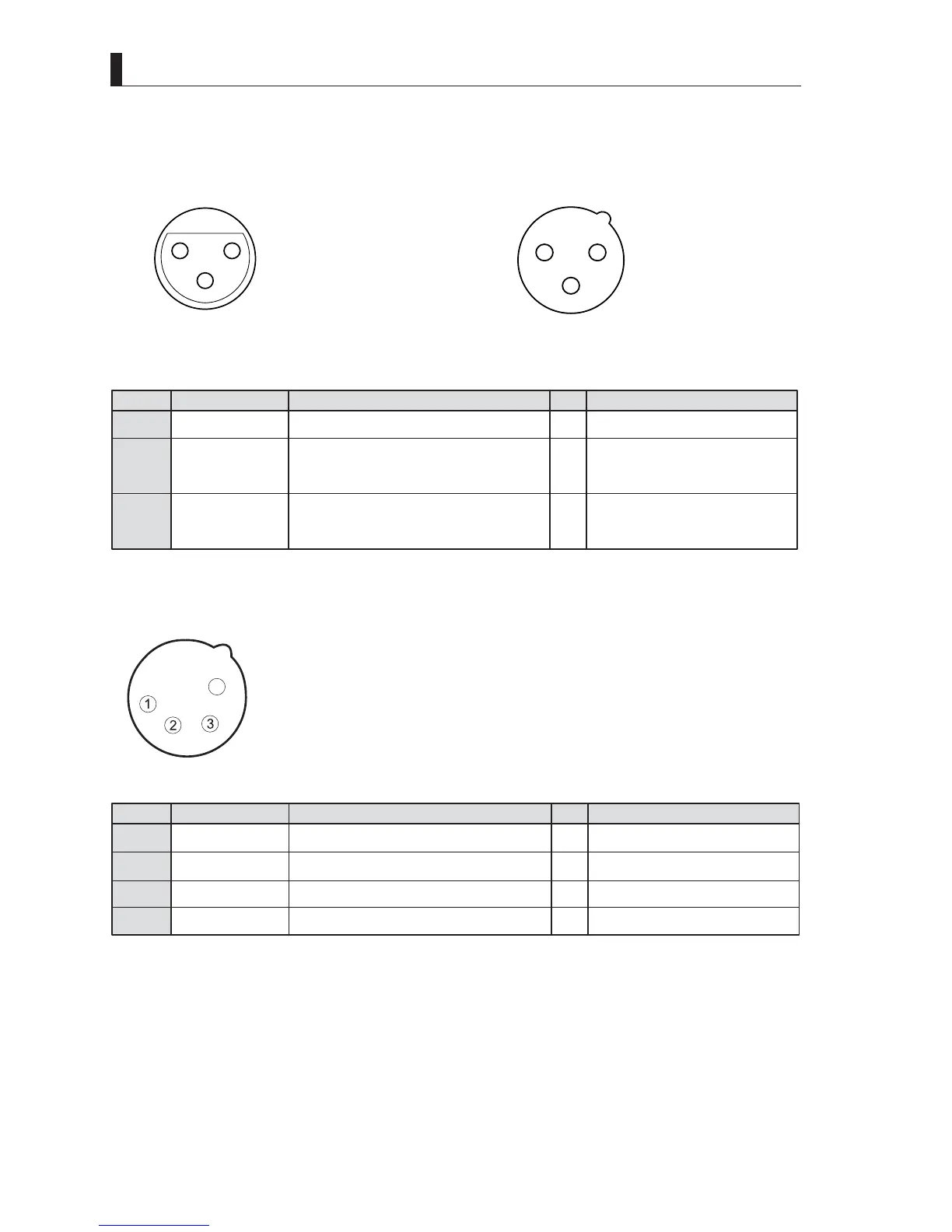

9.3 External Connections
■
MIC-1 and MIC-2 Connector
8VHGWRFRQQHFWIRULQSXWWRDPLFURSKRQHȍEDODQFHGLQSXW
Pin No. Name Function I/O External Interface
○
○
○
1
2
3
MIC (SHIELD)
MIC (HOT)
MIC (COLD)
MIC input shield
MIC (HOT) line 600Ω balanced input
When AB power is supplied : DC 12V
When +48 phantom power is supplied : DC 48V
MIC (COLD) line 600Ω balanced input
When AB power is supplied : DC 0V
When +48 phantom power is supplied : DC 48V
―
IN
IN
Insertion Side Insertion Side
Camera side :
Plug receptacle HA16PRM-3SE（71）
Cabl e side : XLR-3-12C (3-pin male plug) or equivalent
Camera side :
Receptacle HA16RM-3PE (76)
Cabl e side : XLR-3-11C (3-pin female plug) or
equivalent
Camera main unit has female
connector seats.
Camera mai n unit has male
connector seats.
12
3
1 2
3
■
DC-IN Connector
This connector is external power supply for camera.
○
○
○
○
1
2
3
4
+12 V RET
NC
NC
+12 V IN
+12V input RET
―――――――――――――
―――――――――――――
+12 V input (11V to 17V)
GND
―
―
IN
Camera side : XLR-4-32-F512
Cable side : XLR-4-11C (4-pin male plug) or equivalent
4
Pin No. Name Function I/O External Interface
Insertion Side
