SPECIFICATIONS
9
233
UHK-430/CCU-430 1710 VER2 (E)
9.3 External Connections
■

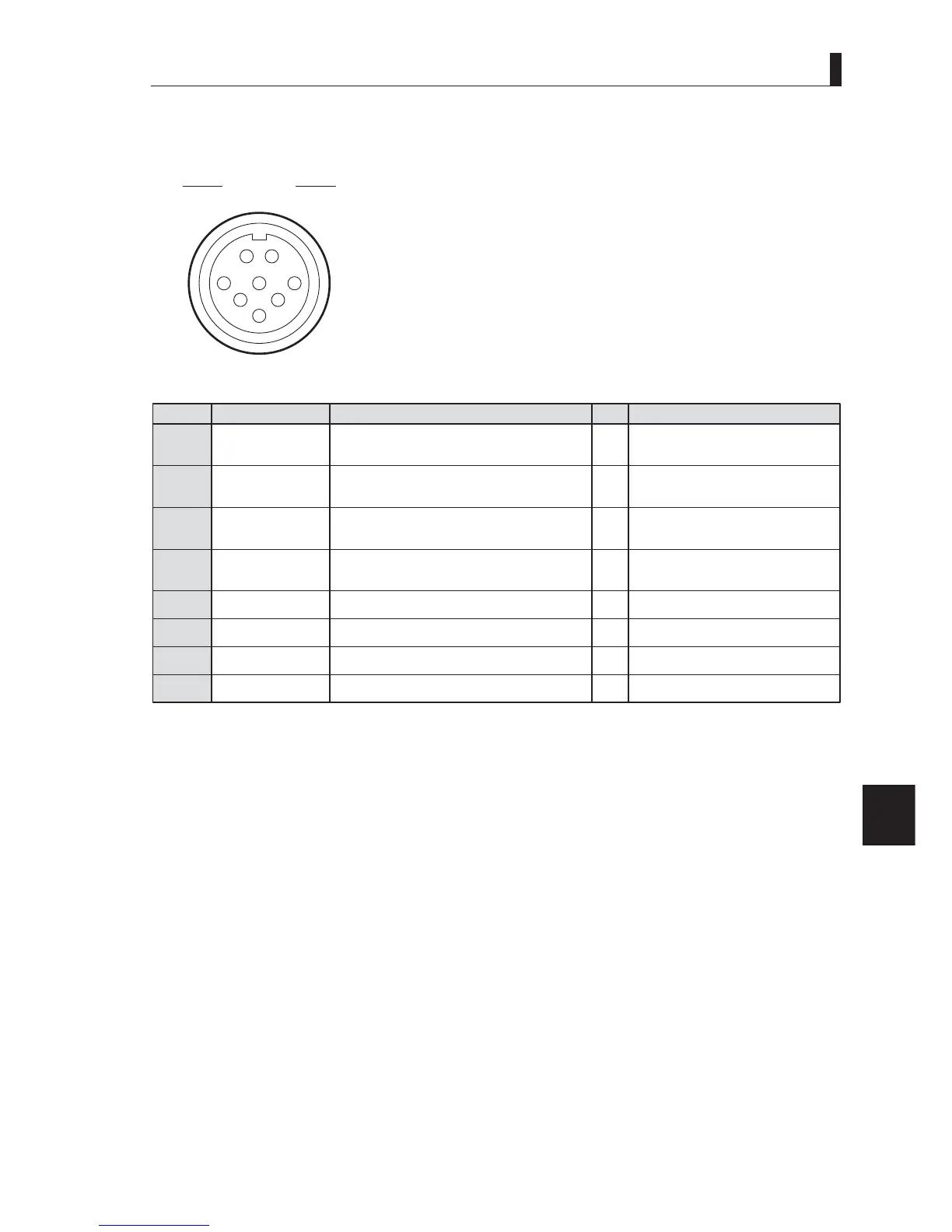

REMOTE Connector
Used to connect an external remote controller.
Pin No. Name Function I/O External Interface
○
○
○
○
○
○
○
○
A
B
C
D
E
F
G
H
HED (+)
HED (-)
HEC (+)
HEC (-)
MU_REAR+12V
DGND
RESERVE
RESERVE
Digital data output (+) from camera to remote
controller
Digital data output (-) from camera to remote
controller
Digital data input (+) from remote controller to
camera
Digital data input (-) from remote controller to
camera
DC+12V power supply (max. 2.0A)
Ground for DC+12V power supply
OUT
OUT
IN
IN
OUT
OUT
A
B
C
D
E
F
G
H
Receptacle
Insertion Side
Receptacle
Camera side : PRC05-R8F
Cabl e side : PRC05-PB8M
