1 - 7

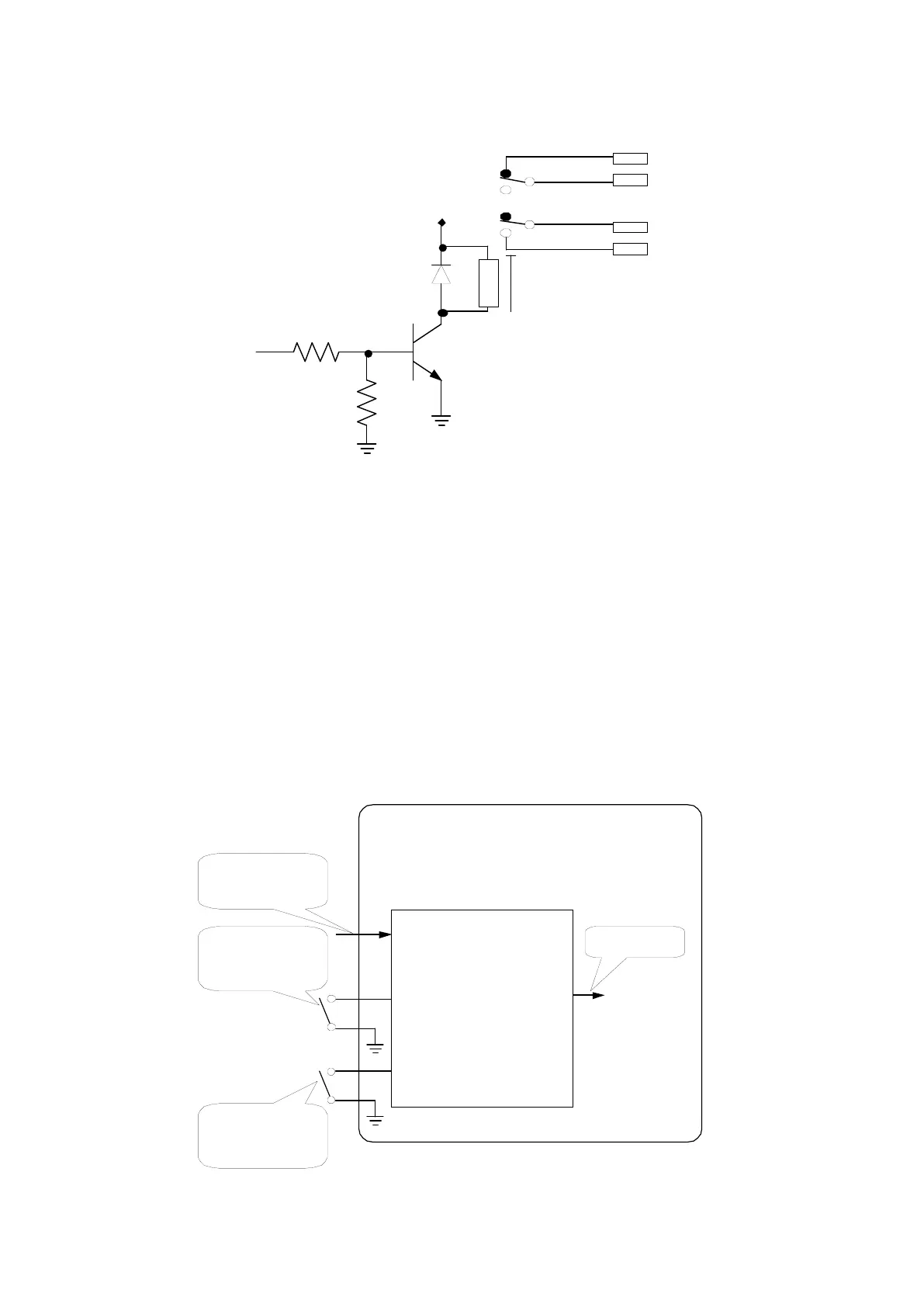

Output Circuit
+12V
100kΩ
10kΩ
O1
Ｂ Contact
O1
Ａ Contact
from internal
logic
(9)
(34)
(17)
(42)
same as O2 - O8
Emergency Stop Input Contacts
These contacts are for setting the drive output to zero compulsorily at emergency without using the
software. 25 pin and 50 pin of Remote Control Contact I/O connecter pins are used as Emergency Stop
Input Contacts.
The function of the drive output stop is realized by using the mute function of D/A converter and reduce
the drive output with taking the time of 1024 sampling interval.
Canceling and switching the polarity of Emergency Stop Function are done by DIP switch.
Emergency Stop
Contact
Canceling SW
(Cancelled at close)
Emergency Stop
Signal
I/O Module fundation plate
Emergency Stop
Input Contact
(25/50 pin)
Emergency Stop
Contact
Switching Polarity SW
( + at close)
