7 - 30

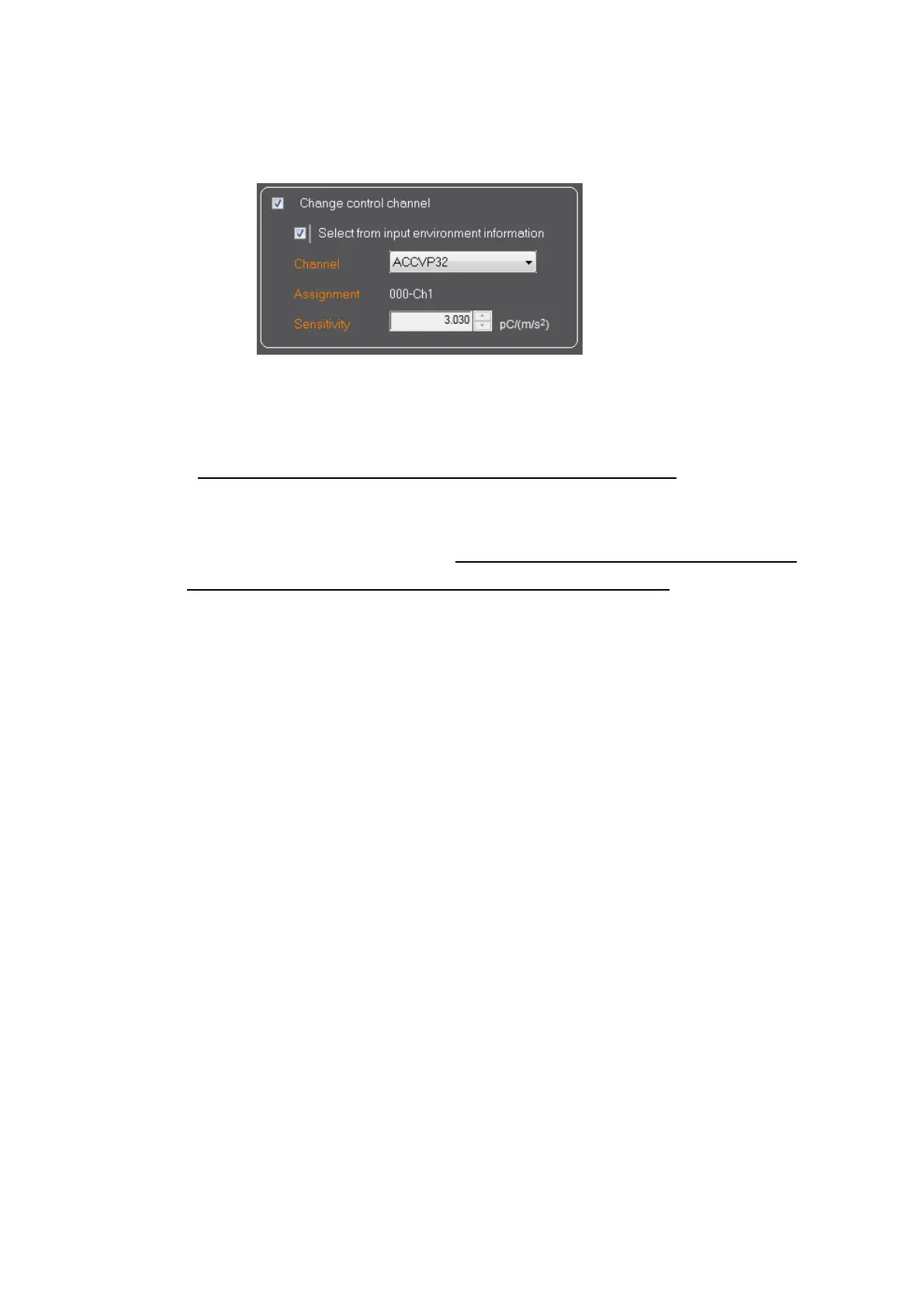

7.3.3.4.3 Use the top information of the input environment information list
Check the check box of "Change control channel" and check the check box of "Select
input environment information".
The first channel of the top information registered in the input environment information is
displayed.
Select the control channel from the displayed input channel list.
The sensitivity of the selected input channel can NOT be changed. T
The test file saving screen appears after the button of [Next]is pressed.
All defined input channels in the top information except the selected channel as control
channel are set to the monitor channel. When change of the monitor channel setting is
needed, open the test file from applications and change the setting.
