IMV K2 - Double Cursor Display

4 - 29
4.3.4.1 Double cursor display
< Operating procedure >
< Step 1 >

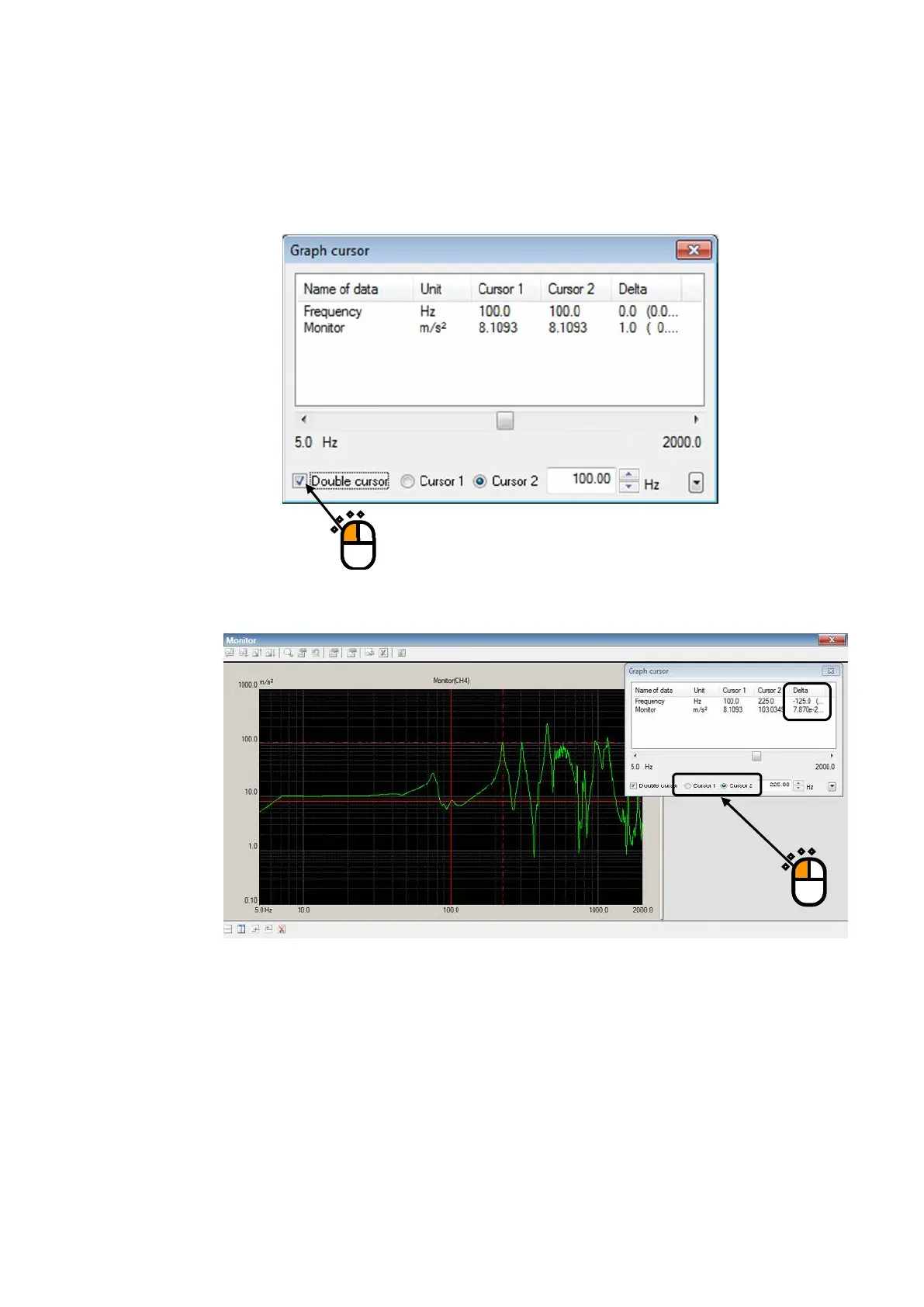

Check double cursor in the graph cursor dialog box.
Cursor 2 is enabled.
< Step 2 >
Select and operate cursor 2.
If cursor 1 is selected, you can operate cursor 1.
The graph cursor dialog box displays the difference between cursor 1 and cursor 2.
