3.3 Excitation Information
This item is necessary to be defined.
A defined ‘Excitation System Information’ is required to be selected when the application of SINE or
RANDOM is to be executed.
Mainly, the rating information of the shaker used in Excitation System is registered.
The method of registration is described as below ;

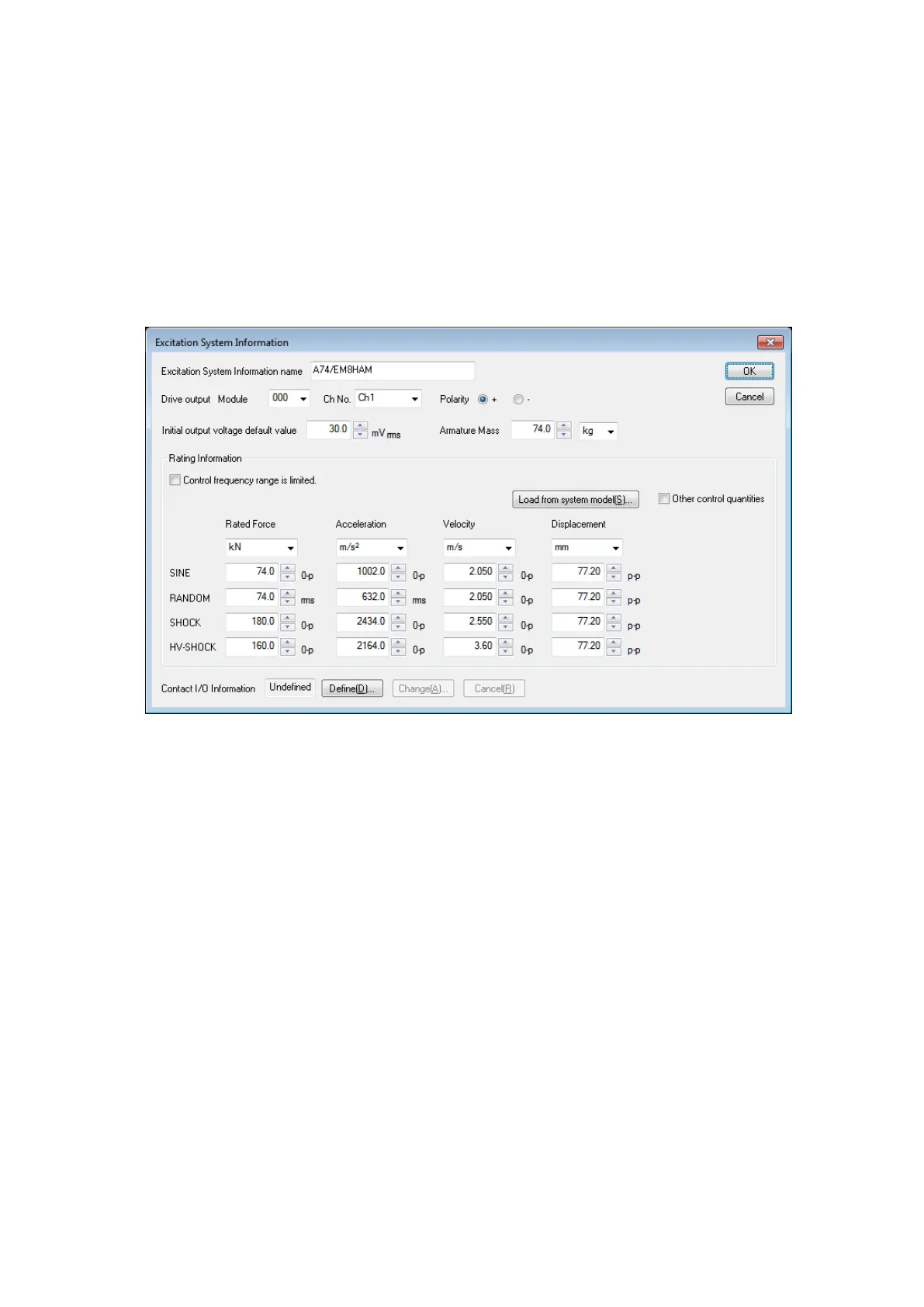

Press the [Add] button on the right of the list displaying Excitation System Information. A dialog for
the registration appears.
3.3.1 Excitation System Information name
(1) Meaning
This item is for inputting of the registration name of the excitation system (shaker + amplifier)
to be used.
3.3.2 Drive Output
(1) Meaning
This item is for specifying of ‘Module ID’ and ‘Ch. (number of output channel)’ of I/O
Module to be used.
3.3.3 Polarity
(1) Meaning
This item is for setting of the polarity of output channel to be used.
The default value of this item is defined as ‘Positive’. The default value is recommended if it is
not intended.
When this item is set to ‘Negative’, the output signal of output channel is treated as that having
the negative polarity.
