4.3.3.1 3D graph scale change
In 3D graphs, the scale of depth axis can be changed.

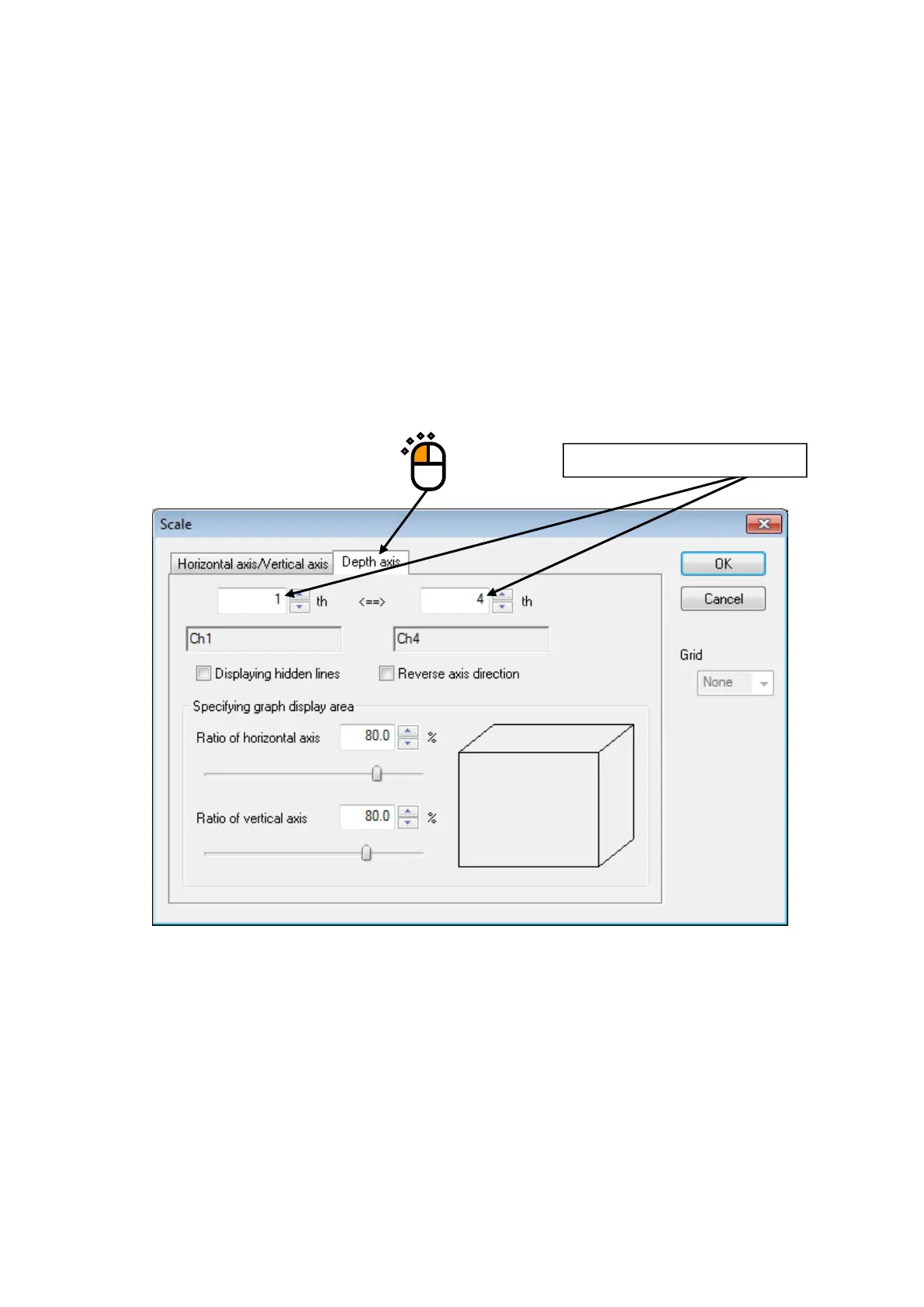

The setup items are as shown below.
Display first No.*: First No. of displayed data can be set up.
Display last No.*: Last No. of displayed data can be set up.
Hidden line display: Lines hidden backward (hidden lines) can be displayed.
Reverse direction display*: Data with large number can be placed foremost.
Ratio of horizontal axis: The horizontal axis ratio of graph display area can be set up.
Ratio of vertical axis: The vertical axis ratio of graph display area can be set up.
* Setup is not allowed by “Waterfall graph (scroll display) ”.
Displayed data range can be set up.
