7 - 29
7.3.3.4 Setting of control channel
In the ‘Test files’ mode, there are the following three options for control channel setting.
1) Use the original setting of the selected test file without modification
2) Modify the setting of the selected test file
3) Use the top information of the input environment information list

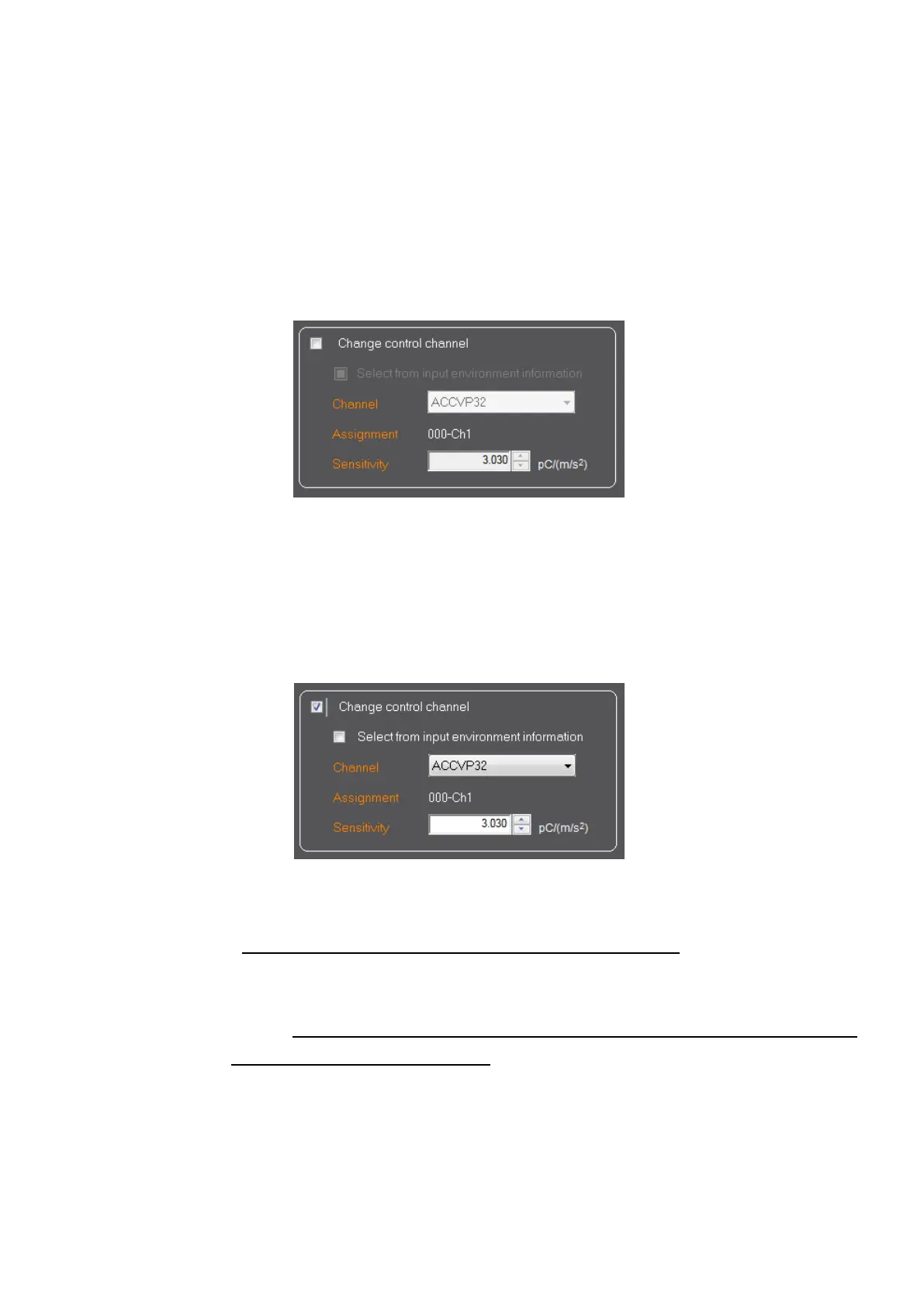

7.3.3.4.1 Use the original setting of the selected test file without modification
Clear the check box of "Change control channel"
The test file saving screen doesn't appear after the button of [Next]is pressed.
The selected test file is executed without modification.
7.3.3.4.2 Modify the setting of the selected test file
Check the check box of "Change control channel" and clear the check box of "Select
input environment information".
The first channel of the defined input channels in the selected test file is displayed.
Select the control channel from the displayed input channel list.
The sensitivity of the selected input channel can be changed.
The test file saving screen appears after the button of [Next]is pressed.
All displayed input channels in the list except the selected channel are set to the monitor
channel. When change of the monitor channel setting is needed, open the test file from
applications and change the setting.
