8 - 4

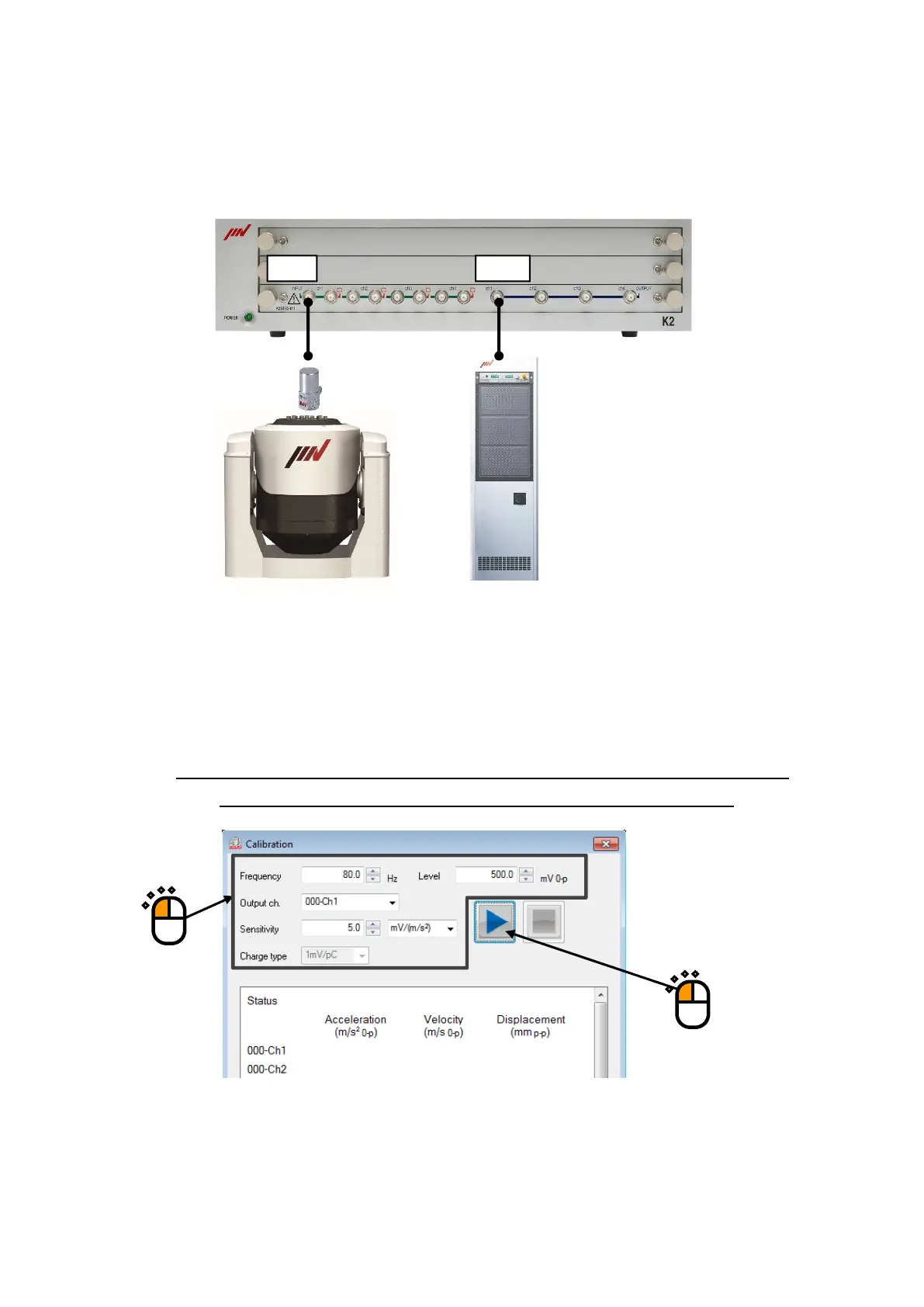

8.2.3 Simple diagnosis of the excitation system
＜Procedures＞
＜Step 1＞
Connect between each units are as below.
＜Step 2＞
Select the output channel and input the sensitivity of sensor.
In this example, input the frequency as 5Hz and the level as 100mV.
Complete the set up and then press the [Start] button.
Note) The suitable value of frequency and level of sine signal vary in each excitation
system. Please set the suitable value according to the excitation system.
Input Output
①
②
To Next Page
