IMV K2 - Charge Input Sensitivity Test

8 - 3

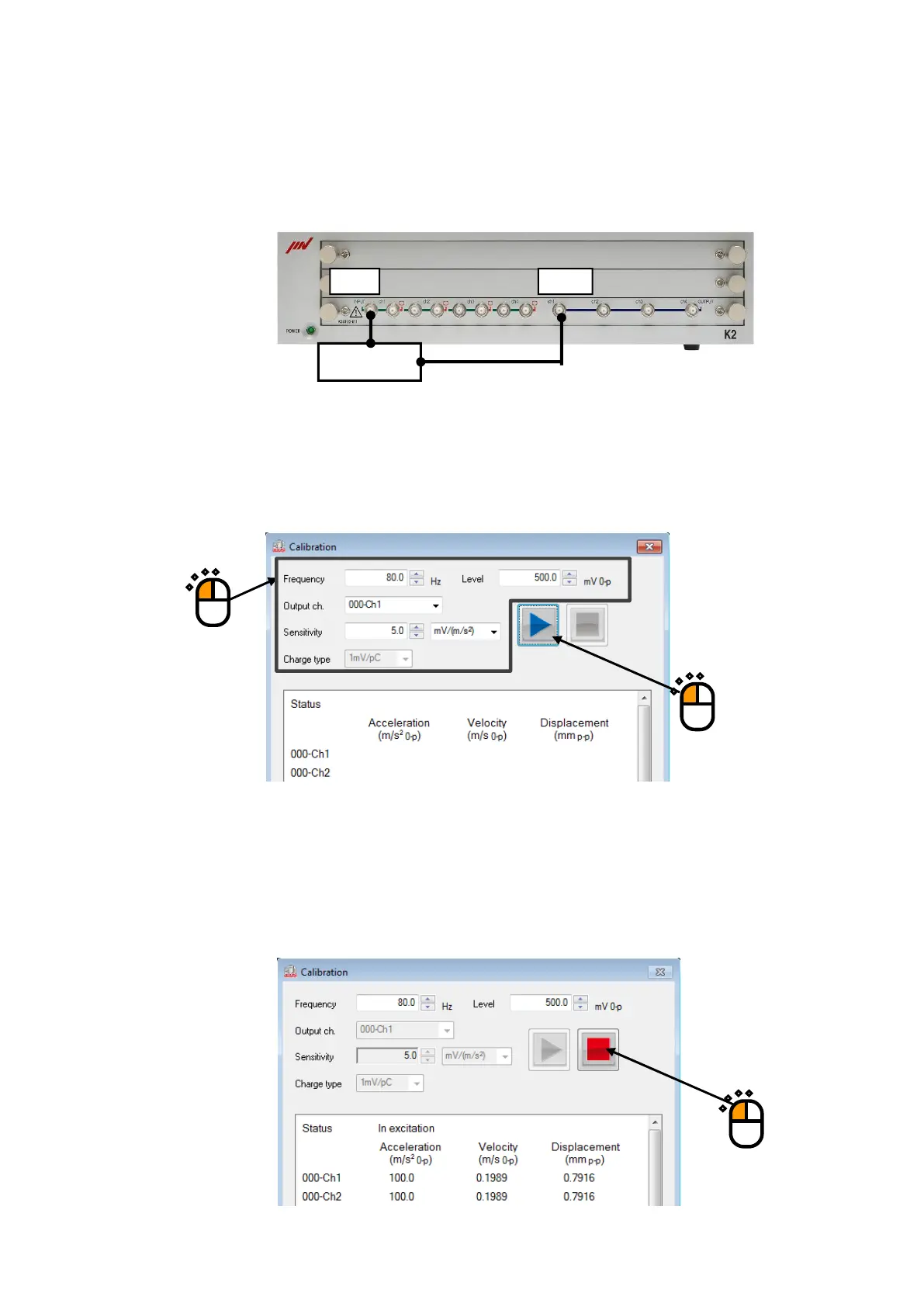

8.2.2 Charge input sensitivity test
＜Procedures＞
＜Step 1＞
Connect INPUT channel to the capacitor with the above connection of "Voltage input sensitivity
test".
＜Step 2＞
Input the frequency and the level of output sine signal, the output channel and the sensitivity of
sensor. Select "pC/Unit" as input type.
Complete the set up and then press the [Start] button.
＜Step 3＞
The measured data is displayed on status panel. In this example, the ideal acceleration value is
100*(C/1000) [m/s2] (C: Capacitance [pF]).
To stop operation, press stop button.
①
②
Capacitor
Input Output
