SETUP AND MEASURING
Measuring with the Maxor
2. Using PCView, click Configuration->Receiver->MinPad, and
configure the Rover with the following parameters, then click
Apply (Figure 3-8):
• FN Key Mode, Occupation Mode Switch – enable
• Initial data collection dynamic mode, Static – enable
See Tab
le 4-1on page 4-4 for FN key functions and REC LED
statuses.

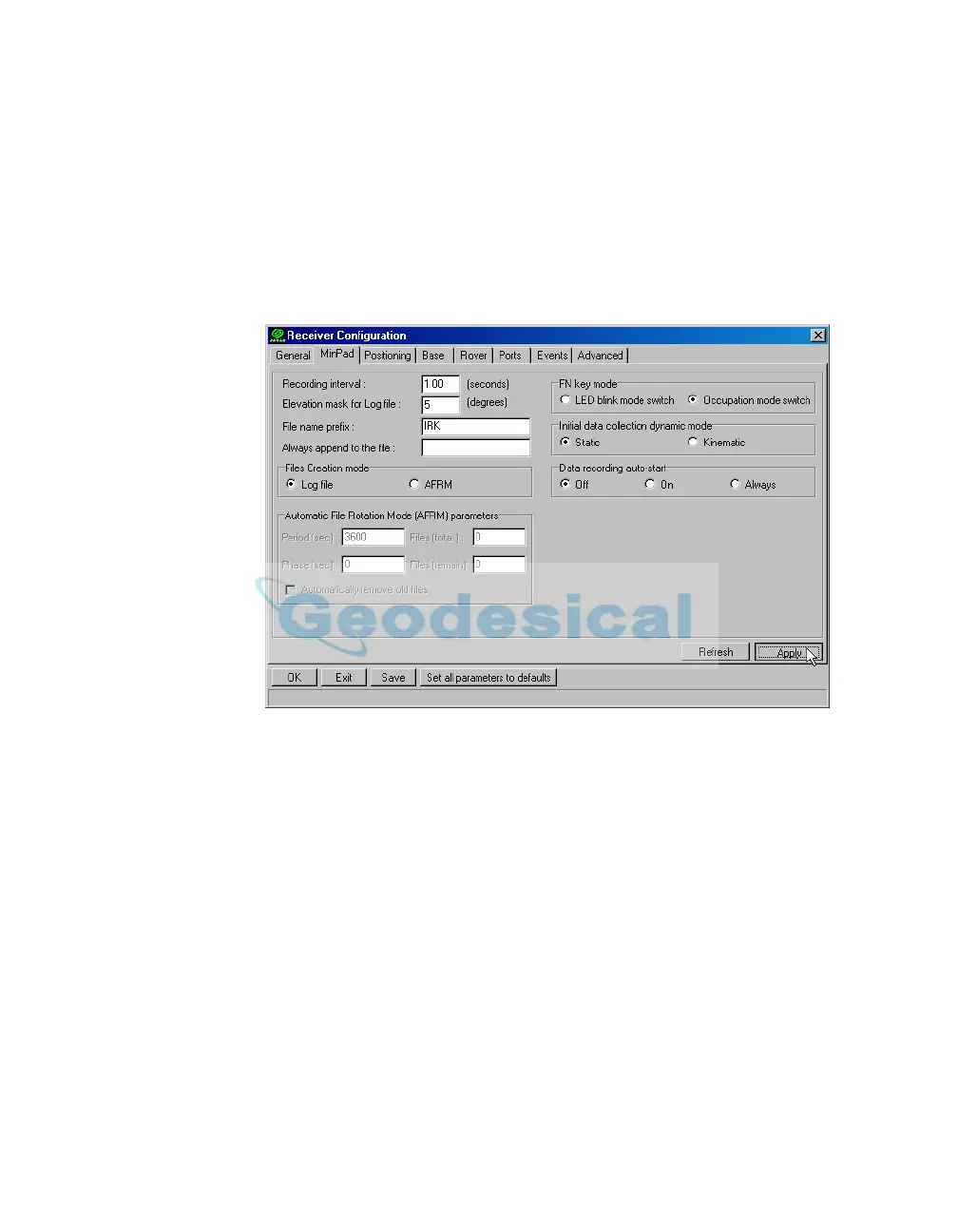

Figure 3-8. Rover MinPad Configuration
Notice:
Remember, both Base and Rover receivers must collect
data from common satellites at a common data recording
rate and with identical elevation mask angles.
3. Set up the Rover at an unknown point and press power. Allow the
Ro
ver to collect static data for two to ten minutes. The REC LED
will be orange.
4. Check the STAT light for satellites tracked.
5. When finished, press the FN
key for les
s than a second to assign the
Rover to kinematic.
Notice:
Remember, if the REC LED blinks green, the current
mode is dynamic, if it blinks orange, the current mode is
static.
