13

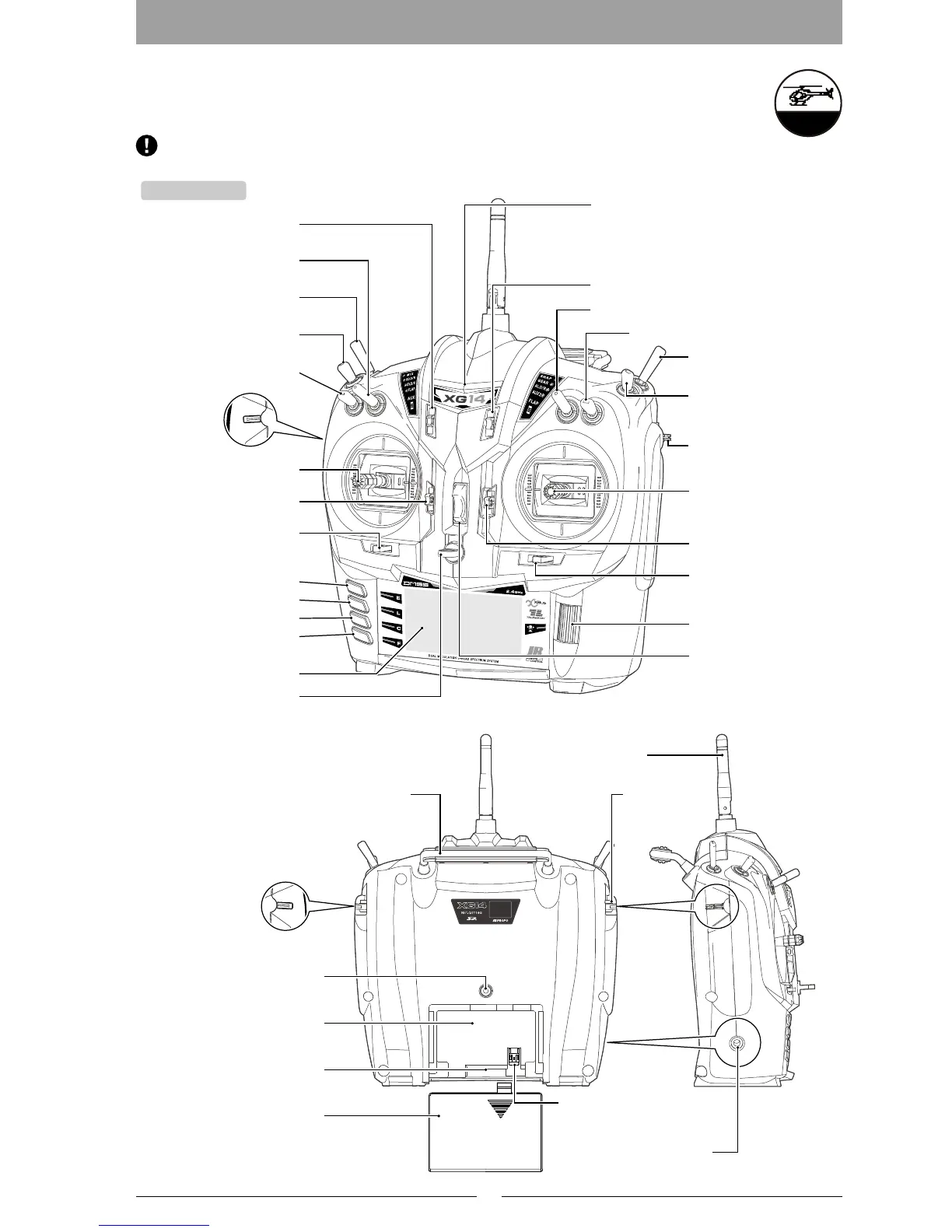

Names▋of▋Each▋Transmitter▋Control
Helicopter▋Type
JR gives each switch or lever a name rather than a number on the transmitter. The names and
positions are different depending on the model type. Please note this when reading the manual.
Functions▋Common▋to▋All▋Models
Helicopter
Airplane
DANGER
WARNING
CAUTION
Glider
Battery Connector
Charging Jack
Hovering pitching trim
【HV.P/LTRM】
Throttle hold Switch
【HOLD SW】
AUX2【AUX2 SW】
Rudder Dual rate Switch
【RUDD SW】
Elevator Dual rate Switch
【ELEV SW】
Throttle(Pitch)
Aileron Stick
Hi-Pitch Lever
【HPIT LV】
Throttle Trim
Main Power Switch
Aileron Trim
Dial
Hovering Throttle Trim【HV.T/RTRM】
Flight Mode Switch
【FMOD SW】
Trainer Switch【TRN SW】
Aileron Dual rate Switch【AILE SW】
Gear Switch【GEAR SW】
AUX 3 Lever
【AUX3 LV】
Elevator/Rudder Stick
Rudder Trim
Elevator Trim
AUX 3 Lever
【AUX3 LV】
2.4GHz Antenna
Carrying Handle
Trainer Jack
Battery Box
SD Card Slot
Battery Cover
Rear : Common type
Display
Neck Strap Eyelet
Enter Key
List Key
Clear Key
Function Key
Pilot Lamp(LED)
Display: During transmission: Blue.
During low output transmission: Blue, flashing.
When radio transmission is stopped: Red.
Low battery voltage: Flashing
Hi-Pitch Lever
【HPIT LV】
Flap Lever
【FLAP LV】
For Airplane/Glider
For Helicopter
Mode 1 Example
The names in square brackets are the abbreviated characters displayed on
each setting screen.
