▋Swash▋type【SWASH▋TYPE】
▋▋Function▋Explanation
This function allows electronic CCPM mixing to match the mechanical structure and control
of the helicopter swash plate. After making the SWASH TYPE selection, detailed settings should be made using
Swash Mixing in the Function List.
▋▋Setting▋Method

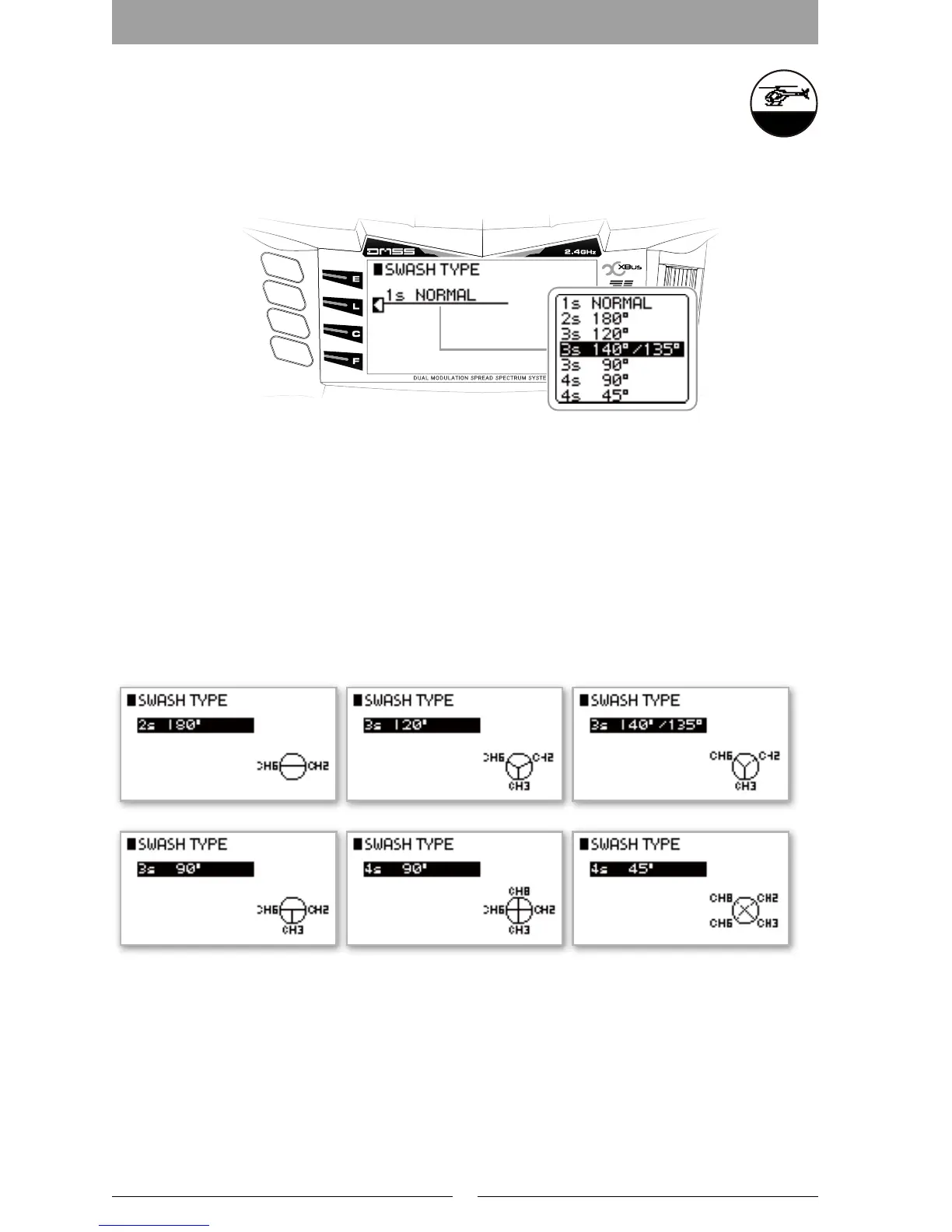

Select the CCPM Swash type on the screen by rotating the dial, and then pressing the dial. This displays a list
of the Swash Patterns – select the pattern which matches your helicopter. Initially, it is set to 1 servo Normal.
Note that the actual mixing amount and direction setting must be carried out in the System List - “SWASH
MIXING”.
⿟ SWASH TYPES
፧
1 Servo Normal
፧
2 Servo 180°
፧
3 Servo 120°
፧
3 Servo 140°/135°
፧
3 Servo 90°
፧
4 Servo 90°
፧
4 Servo 45°
▋▋Caution▋Note
⿟ Actually operate the servos and carefully conrm the settings before ying.
