▋Switch▋Identication▋Stickers

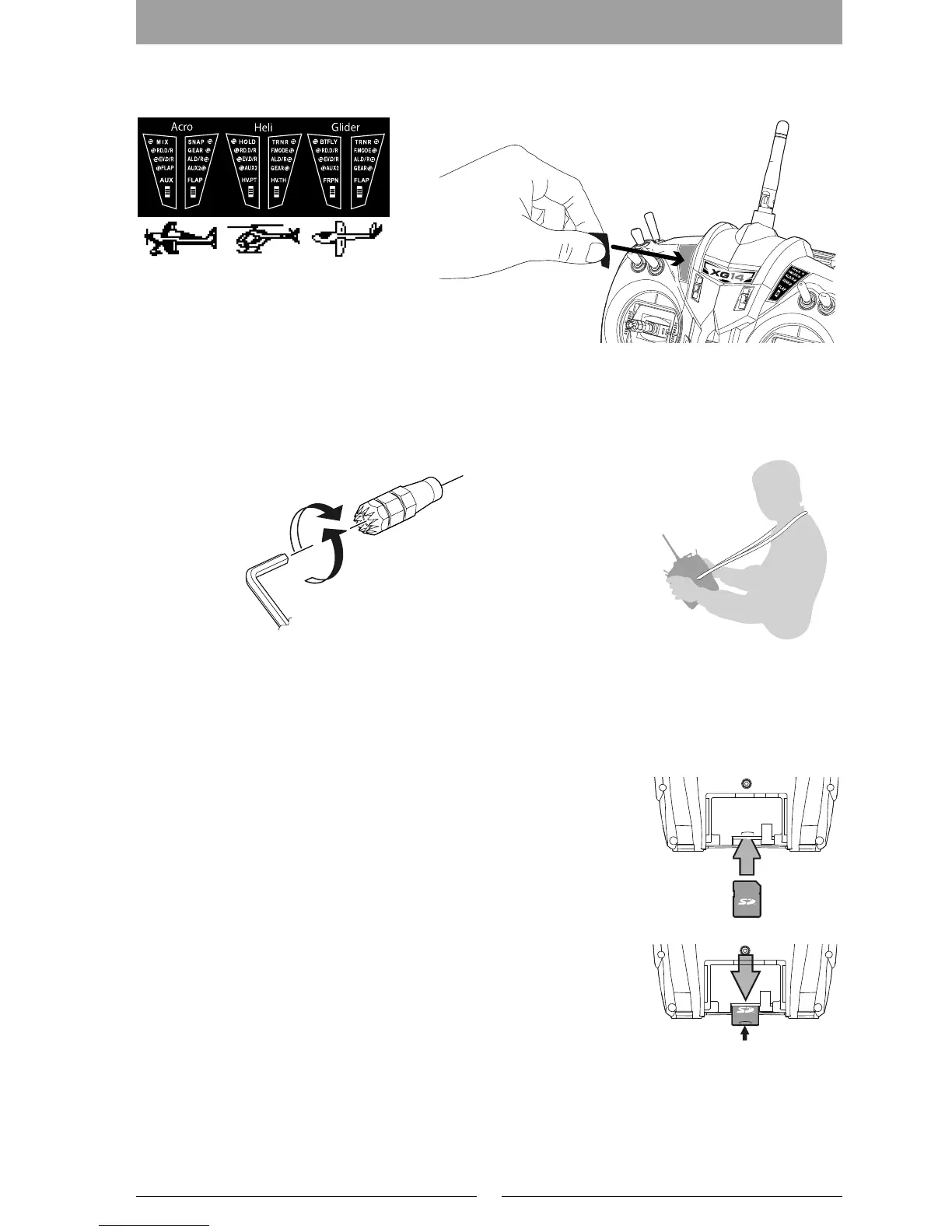

A󱐰x the sticker for your preferred model type. Remove any dust from
the affixing surface, and then detach the sticker from the backing
paper. Next, apply the sticker to the transmitter surface, carefully
matching the edges with the sticker area marked on the transmitter.
Preparation
Lock
Unlock
Lock
Unlock
▋Stick▋Length▋Adjustment
Undo the recessed set screw located at the tip of the
control stick. Now rotate the entire stick to adjust its
length. When nished, lock the recessed set screw.
▋Neck▋Strap▋Attachment
For long ights you may choose to use a neck strap.
Lock
Unlock
Lock
Unlock
▋Inserting▋and▋Removing▋the▋SD▋Card
Compatible SD Cards are 16GB or less in size and be formatted in FAT format.
Inserting and removing SD cards should be carried out after opening the battery cover, with the transmitter
switched o󱐯. The SD card slot is located below the battery. Further, among the SD cards that are available, some
types cannot be used. To ensure compatibility, please use the JR-SDM2G SD card (sold separately).
▋▋Inserting▋method
Switch o󱐯 the transmitter, and then slowly insert the SD card into the
slot until you feel a “click”. Note correct orientation of the card.
▋▋Removing▋The▋Card
Lightly press in the middle of the SD card until it clicks - the card will
pop out slightly when you remove your nger – now carefully pull the
card out the rest of the way.
Lock
Unlock
Lock
Unlock
