87

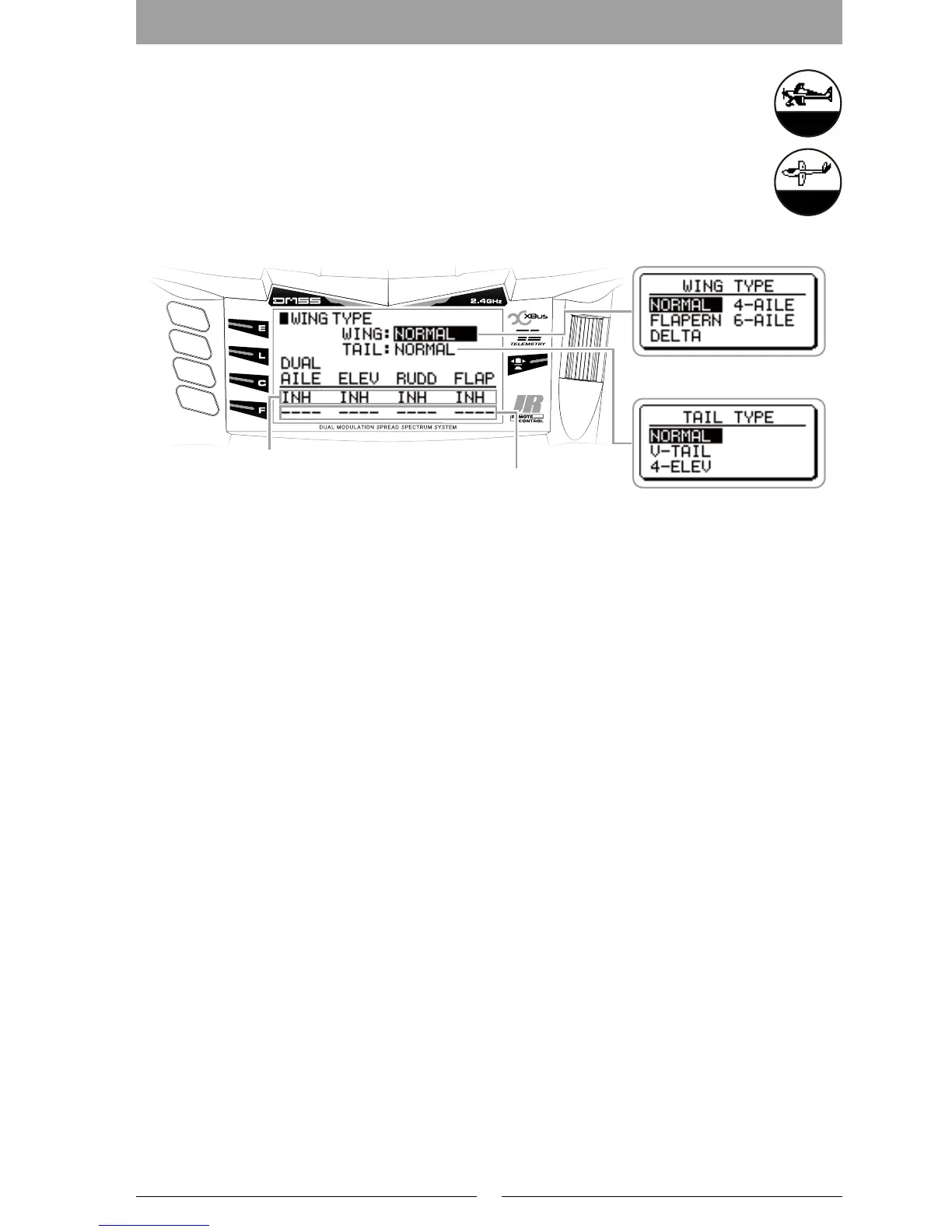

Wing▋Type【WING▋TYPE
Function▋Explanation
Here the wing type can be set. Dual ailerons and dual flaps, dual elevators, dual rudders,
tailless planes, and V-tail wings can be selected.
Setting▋Method
For▋Airplane
Wing Type (WING)
Select the Main Wing Type.
Normal (NORMAL)
For standard airplane wing types.
Flaperon (FLAPERON)
For wings with Dual Aileron. Also, mixing Dual Aileron as Flaps is possible.
The following channel outputs are used:
Channel2 (AILE) : Right Aileron (RAIL)
Channel6 (FLAP) : Left Aileron (LAIL)
Delta (DELTA)
It is possible to set up a Delta Wing to use Elevons.
The following channel outputs are used:
Channel2 (AILE) : Left Elevon (LEVN)
Channel6 (FLAP) : Right Elevon (REVN)
The actual meaning of “DELTAis a dened wing shape, and not a tailless airplane. However, JR does call
tailless airplanes deltas (eg the F-102 or Dassault Mirage III).
4 Aileron (4AILE)
For wings with Four Ailerons
The following channel outputs are used:
Channel2 (AILE) : Right Aileron1 (RAL1)
Channel7 (AUX2) : Right Aileron2 (RAL2)
Channel5 (GEAR) : Left Aileron1 (LAL1)
Channel8 (AUX3) : Left Aileron2 (LAL2)
6 Aileron (6AILE)
For Wings with 6 Ailerons
The Following channel outputs are used.
Channel 2 (AILE) : Right Aileron 1(RAL1)
Channel 7(AUX2) : Right Aileron 2(RAL2)
Channel 9(AUX4) : Right Aileron 3(RAL3)
Channel 5(GEAR) : Left Aileron 1(LAL1)
Channel 8(AUX3) : Left Aileron 2 (LAL2)
Channel 10(AUX5) : Left Aileron 3 (LAL3)
