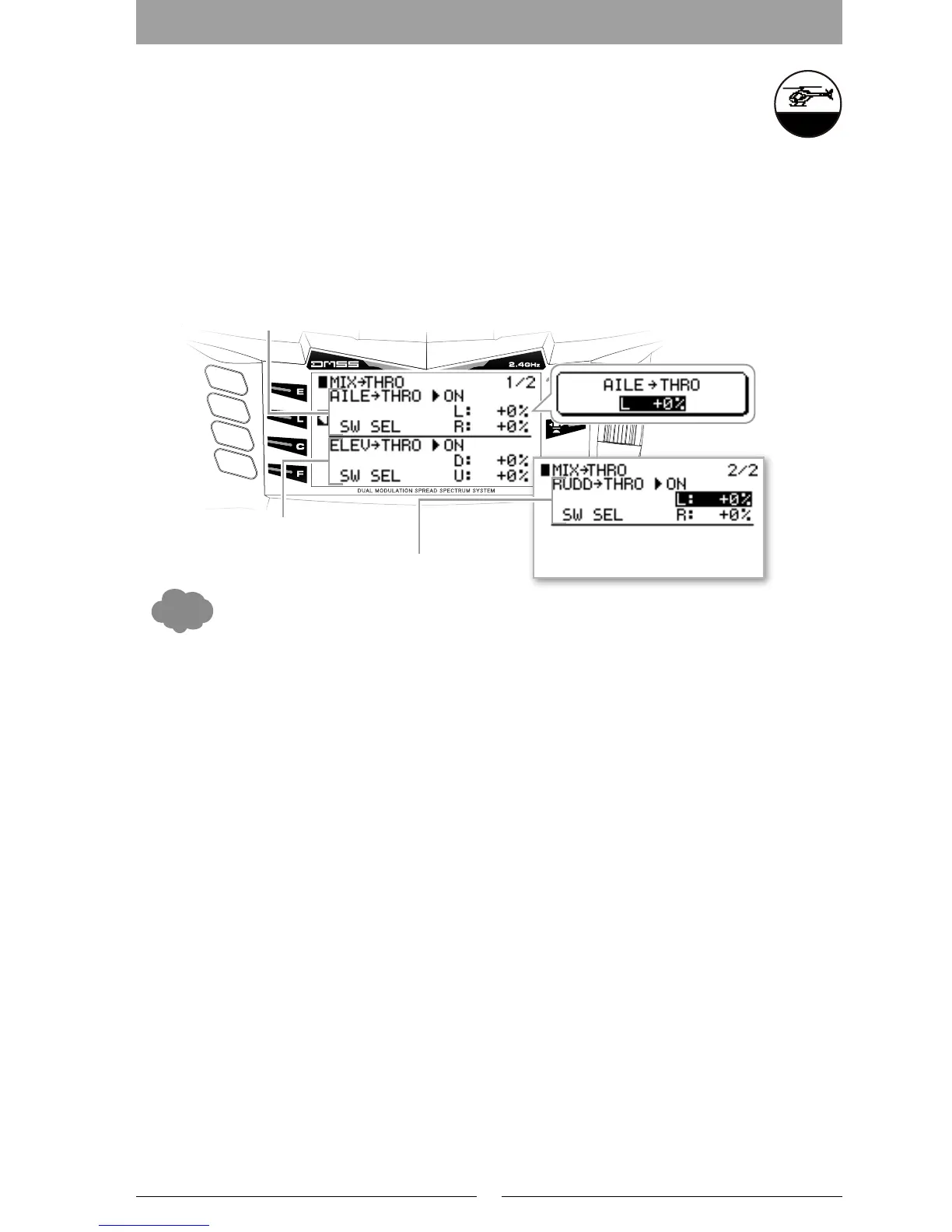

Throttle▋Mixing【MIX THRO
Function▋Explanation
When operating various controls on a helicopter, the rotor rotation may be reduced due
to loading. This function is a mixing function for implementing a correction for this effect. It will allow
corrections of the rotor rotation speed normally carried out by a governor. Each mix (from aileron, elevator,
and rudder) can be controlled from a separate switch.
Setting▋Method
Each mix from Aileron, Elevator, or Rudder can be switched on and o󱐯 using an independent switch. After
setting the switches, please conrm the display of the operation function. Then set the mix amounts to the
throttle for each of the stick operation directions. The mix should be set to whichever direction the rotor
rotation increases when the operation is carried out.
As a rough guide to values, it is recommended that the aileron and elevator should be set to 10%-30%, and the
rudder should start from L10%/R15%.
Caution▋Note
When using a governor, this function is not required, and the numerical values should all be set to zero.
Actually operate the servos and carefully conrm the settings before ying.
Helicopter
Airplane
DANGER
WARNING
CAUTION
Glider
Function▋List
Mixing from Aileron to ThrottleMixing from Aileron to Throttle
Mixing from Rudder to Throttle
Mixing from Rudder to Throttle
Mixing from Elevator to Throttle
Mixing from Elevator to Throttle
ダイヤ
TIPS
調整ポイント表示
ポイント接続を曲線に変更 スティック入力位置と出力位置の数値表示
現在の
フライトモード位置
各調整ポイントの
入力位置と出力位置
ポイントの
追加と削除
注意:
グラフはホバリン
グスロットルやス
ロットルトリムで
変化する場合もあ
ります。
カーブをコピー
