83

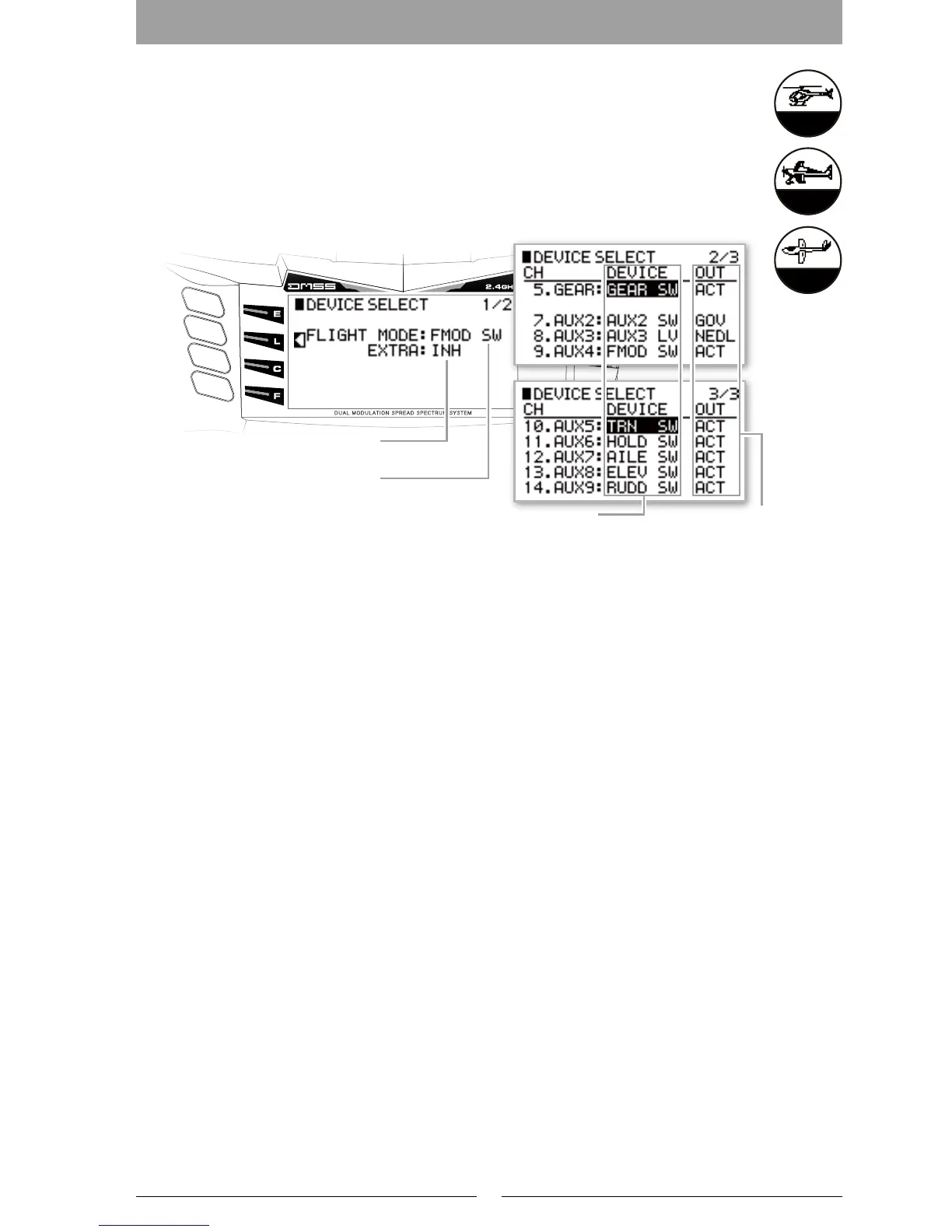

Device▋Select【DEVICE▋SELECT
Function▋Explanation
This screen is where various flight modes can be set, and where switch functions can be
dened. Further, channel output assignments can be made here.
Setting▋Method
For▋Helicopter
Flight Mode Switch (FLIGHT MODE) / Flight Mode Extension Switch (EXTRA)
Initially, the Flight Mode selection switch is allocated to “FMOD SW” - it can be re-allocated to another switch
if desired. Further, extra ight modes can be activated here. Initially these are inhibited with this function
activated, two (2) extra ight modes can be added.
Device Select (DEVICE)
Here input devices (switches, levers and trim switches) can be linked to a particular channel. Select the device
as desired.
Selection of output (OUT)
Here the Output conguration of each channel can be specied.
INH: No output.
ACT: Allow output - standard.
GOV: Use this channel for controlling the Governor.
The settings for the “GOVERNOR” can be set under the function list.
GYR: Use this channel for controlling the Gyro.
The settings for the “GYRO SENS” can be set under the function list.
NDL: Use this channel for “NEEDLE” adjustment with a Nitro engine.
The settings for the “NEEDLE” can be set under the function list.
Helicopter
Airplane
DANGER
WARNING
CAUTION
Glider
System▋List
Device Select Selection of outputSelection of output
Flight mode Extension Switch
Selection of Extension Switch
Device Select Selection of output
Selection of outputFlight mode Extension Switch
Device Select Selection of output
Selection of output Flight mode Extension Switch
Launch Reverse Switch
