▋Elevator▋to▋Camber▋Mixing▋
【ELEV → CAMB▋MIX】
▋▋Function▋Explanation
This function applies mixing to the main wing camber (Center line of Airfoil) based on elevator operation.
Adjustment of the wing root aps and wing tip aperons separately in both up and down direction is possible.
This function can be set for each Flight Mode.
▋▋Setting▋Method

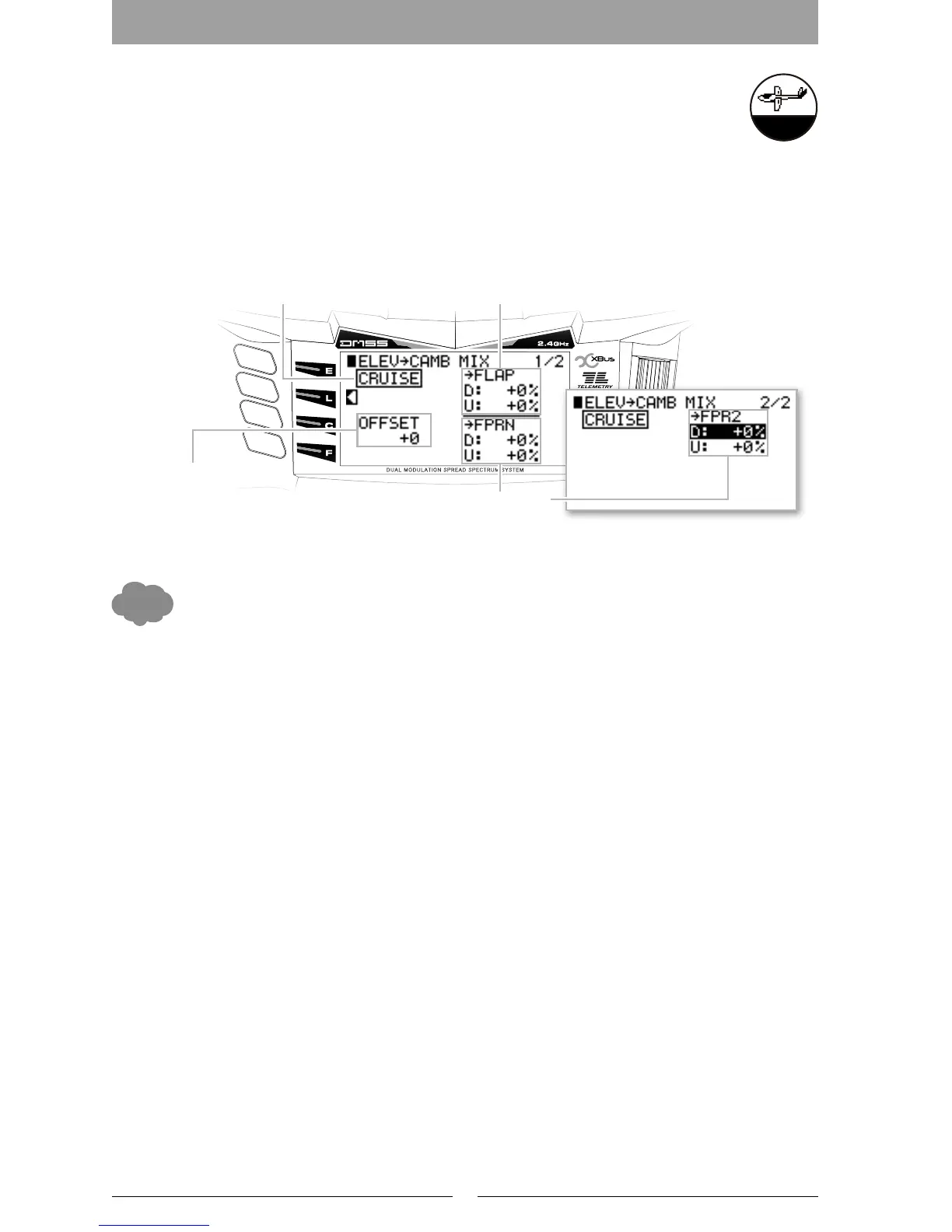

The mix amount to the Flaps and Flaperons can be set on each flight mode, with elevator up and down
directions set individually.
⿟ Mixing O󱐯set on reference point (OFFSET)
By utilizing o󱐯set, the reference point where the mixing starts can be optimised.
ダイヤル
TIPS
調整ポイント表示
ポイント接続を曲線に変更 スティック入力位置と出力位置の数値表示
現在の
フライトモード位置
各調整ポイントの
入力位置と出力位置
ポイントの
追加と削除
注意：
グラフはホバリン
グスロットルやス
ロットルトリムで
変化する場合もあ
ります。
カーブをコピー
⿟ The so-called air combat aps (snap aps) can be used in aircraft with main wings that have a 3-servo (channel)
structure. To maximise stability, reducing the mixing amount to the wing tip ailerons rather than the wing
root aps will cause an e󱐯ect that reduces wing twisting and achieves improved stability.
▋▋Caution▋Note
⿟ Actually operate the servos and carefully conrm the settings before ying.
